owners manual Seat Ibiza

owners manual Seat Ibiza - year of production: 2002, 2003, 2004, 2005, 2006, 2007, 2008 - Seat Ibiza III 3 owners manual EN

Document: pdf (6.26 MB) 262 pages

all ratings: 2 average rating: 2

text version of content this owner's manual page from owners manual to the vehicle Seat Ibiza, year of production 2002 - 2008:

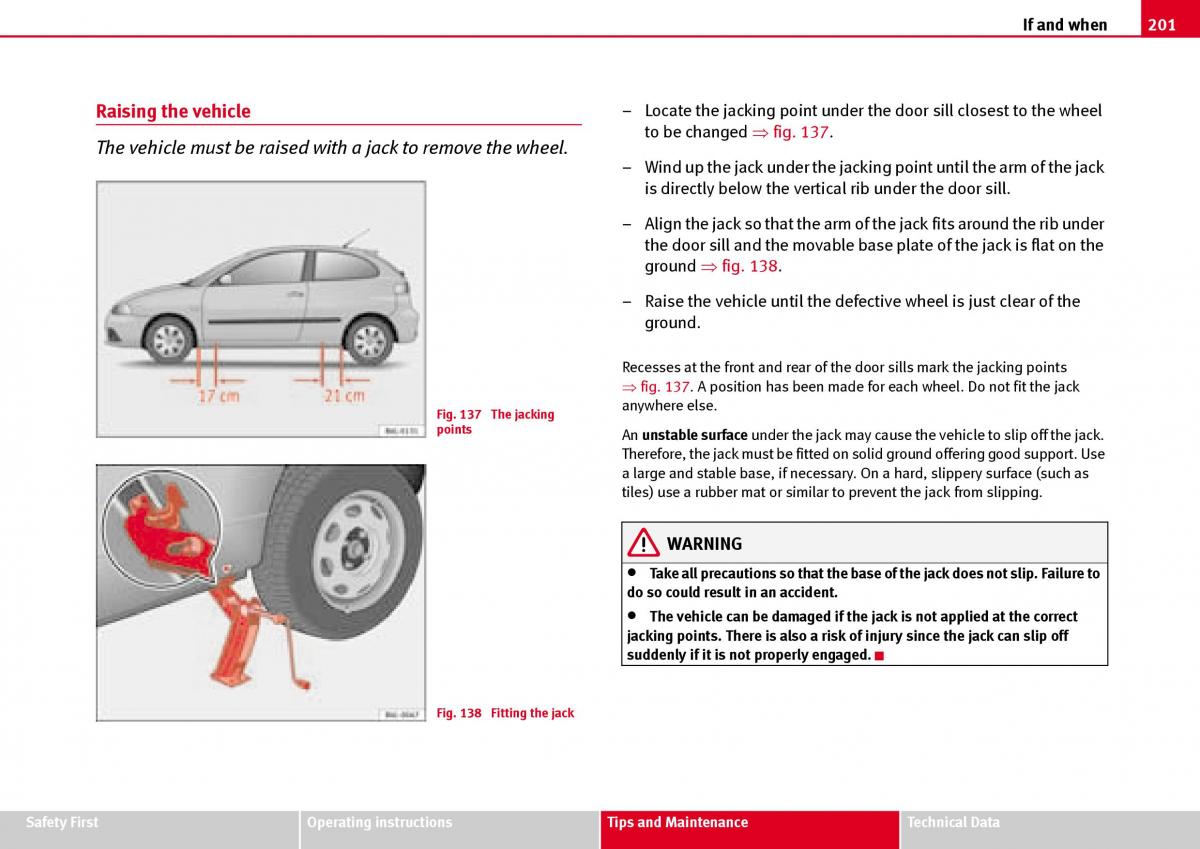

If and when 201 Raising the vehicle – Locate the jacking point under the door sill closest to the wheel to be changed fig. 137. The vehicle must be raised with a jack to remove the wheel. – Wind up the jack under the jacking point until the arm of the jack is directly below the vertical rib under the door sill. – Align the jack so that the arm of the jack fits around the rib under the door sill and the movable base plate of the jack is flat on the ground fig. 138. – Raise the vehicle until the defective wheel is just clear of the ground. Recesses at the front and rear of the door sills mark the jacking points fig. 137. A position has been made for each wheel. Do not fit the jack Fig. 137 The jacking anywhere else. points An unstable surface under the jack may cause the vehicle to slip off the jack. Therefore, the jack must be fitted on solid ground offering good support. Use a large and stable base, if necessary. On a hard, slippery surface (such as tiles) use a rubber mat or similar to prevent the jack from slipping. WARNING • Take all precautions so that the base of the jack does not slip. Failure to do so could result in an accident. • The vehicle can be damaged if the jack is not applied at the correct jacking points. There is also a risk of injury since the jack can slip off suddenly if it is not properly engaged. Fig. 138 Fitting the jack Safety First Operating instructions Tips and Maintenance Technical Data
