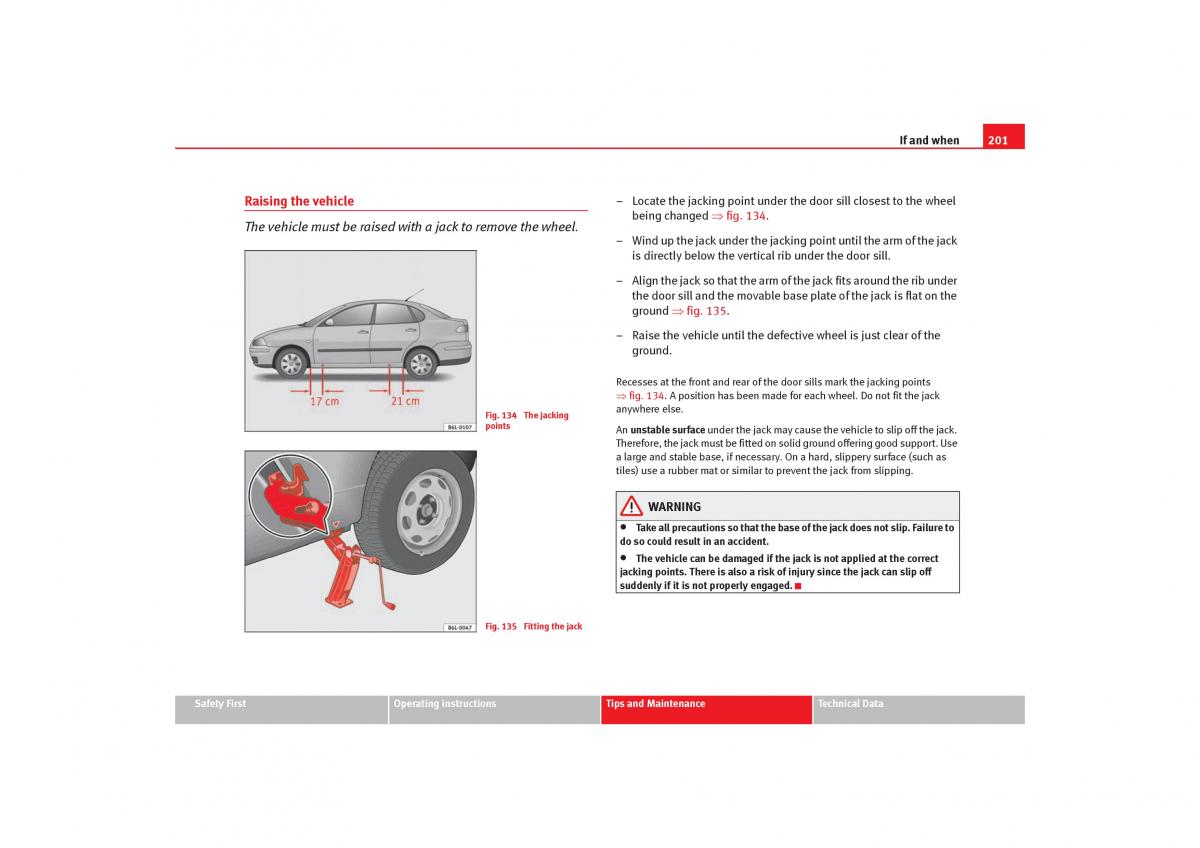

COR_ING_0707 Seite 201 Mittwoch, 1. August 2007 6:25 18
If and when201
Raising the vehicle – Locate the jacking point under the door sill closest to the wheel
being changed ⇒fig.134.
The vehicle must be raised with a jack to remove the wheel.
– Wind up the jack under the jacking point until the arm of the jack
is directly below the vertical rib under the door sill.
– Align the jack so that the arm of the jack fits around the rib under
the door sill and the movable base plate of the jack is flat on the
ground ⇒fig.135.
– Raise the vehicle until the defective wheel is just clear of the
ground.
Recesses at the front and rear of the door sills mark the jacking points
⇒fig.134. A position has been made for each wheel. Do not fit the jack
Fig. 134 The jacking anywhere else.
points An unstable surface under the jack may cause the vehicle to slip off the jack.
Therefore, the jack must be fitted on solid ground offering good support. Use
a large and stable base, if necessary. On a hard, slippery surface (such as
tiles) use a rubber mat or similar to prevent the jack from slipping.
WARNING
• Take all precautions so that the base of the jack does not slip. Failure to
do so could result in an accident.
• The vehicle can be damaged if the jack is not applied at the correct
jacking points. There is also a risk of injury since the jack can slip off
suddenly if it is not properly engaged.
Fig. 135 Fitting the jack
Safety First Operating instructions Tips and Maintenance Technical Data
