AVENSIS_OM_OM20C20E_(EE).book Page 203 Thursday, January 29, 2015 1:47 PM
4-1. Before driving203

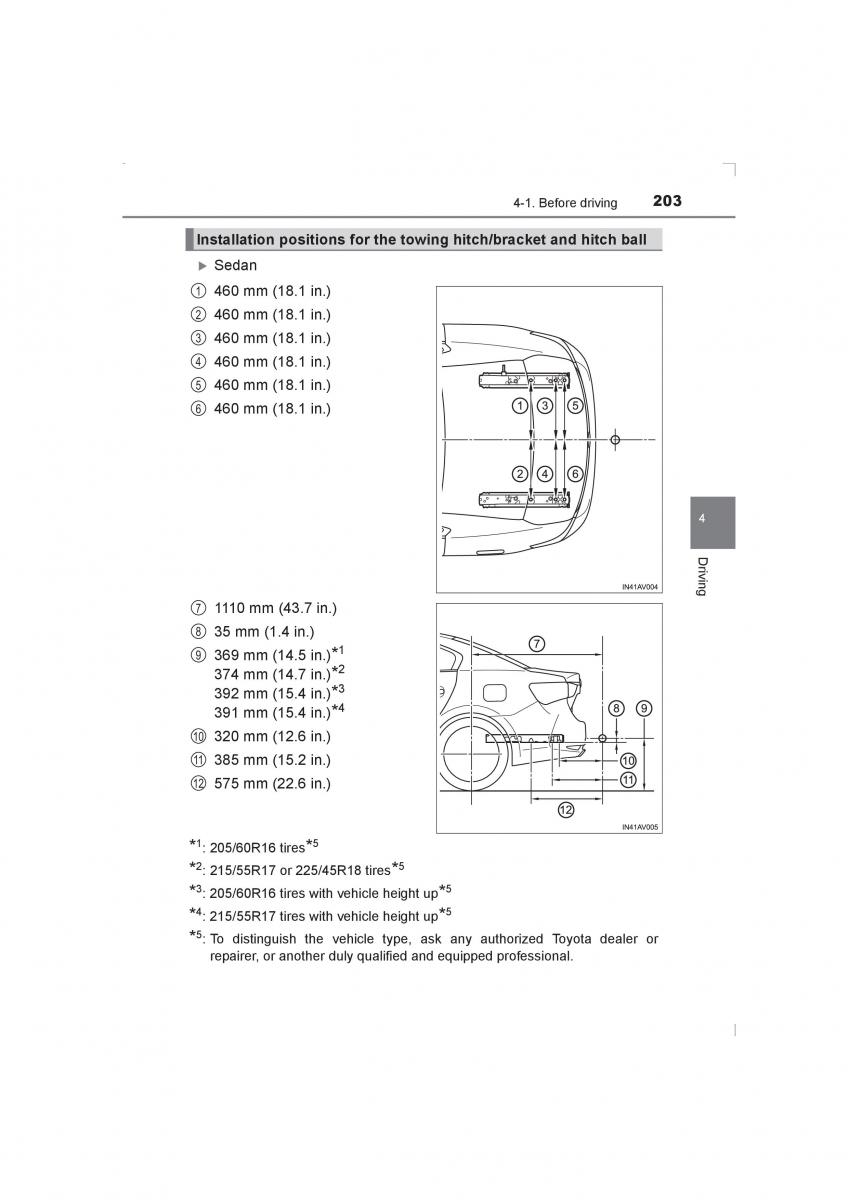

Installation positions for the towing hitch/bracket and hitch ball
X Sedan
1 460 mm (18.1 in.)
2 460 mm (18.1 in.)
3 460 mm (18.1 in.)
4 460 mm (18.1 in.)
5 460 mm (18.1 in.)
6 460 mm (18.1 in.)
4
D
r
iv
in
7 1110 mm (43.7 in.) g
8 35 mm (1.4 in.)
9 1
369 mm (14.5 in.)*
2
374 mm (14.7 in.)*
3
392 mm (15.4 in.)*
4
391 mm (15.4 in.)*
10 320 mm (12.6 in.)
11 385 mm (15.2 in.)
12 575 mm (22.6 in.)
1 5
* : 205/60R16 tires*
2 5
* : 215/55R17 or 225/45R18 tires*
3 5
* : 205/60R16 tires with vehicle height up*
4 5
* : 215/55R17 tires with vehicle height up*
5
* : To distinguish the vehicle type, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
AVENSIS_OM_OM20C20E_(EE)
