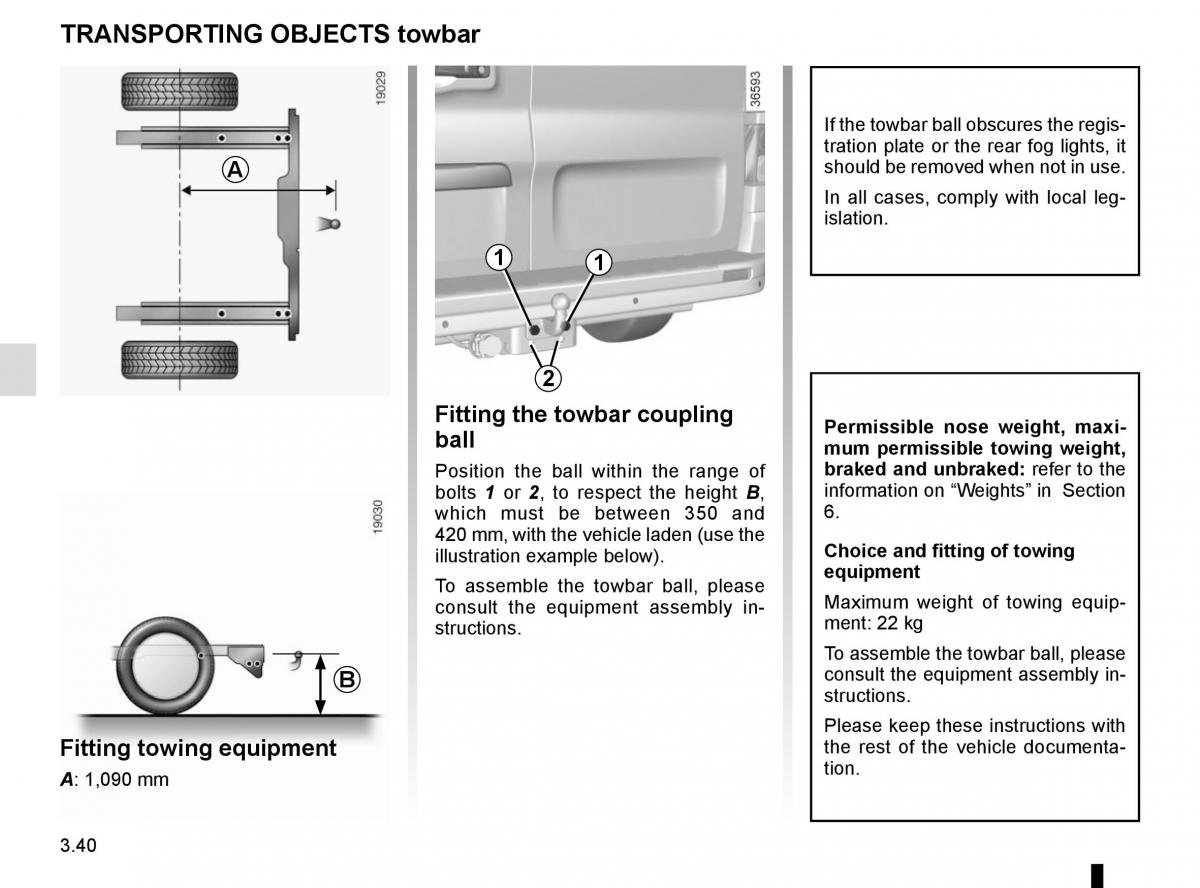

TRANSPORTING OBJECTS towbar
If the towbar ball obscures the regis-
tration plate or the rear fog lights, it
A should be removed when not in use.
In all cases, comply with local leg-
islation.
1 1
2
Fitting the towbar coupling Permissible nose weight, maxi-
ball mum permissible towing weight,
braked and unbraked: refer to the
Position the ball within the range of
information on “Weights” in Section
bolts 1 or 2, to respect the height B,
6.
which must be between 350 and
420 mm, with the vehicle laden (use the Choice and fitting of towing
illustration example below).equipment
To assemble the towbar ball, please
Maximum weight of towing equip-
consult the equipment assembly in-
structions. ment: 22 kg
To assemble the towbar ball, please
B consult the equipment assembly in-
structions.
Please keep these instructions with
Fitting towing equipment the rest of the vehicle documenta-
A: 1,090 mm tion.
3.40
