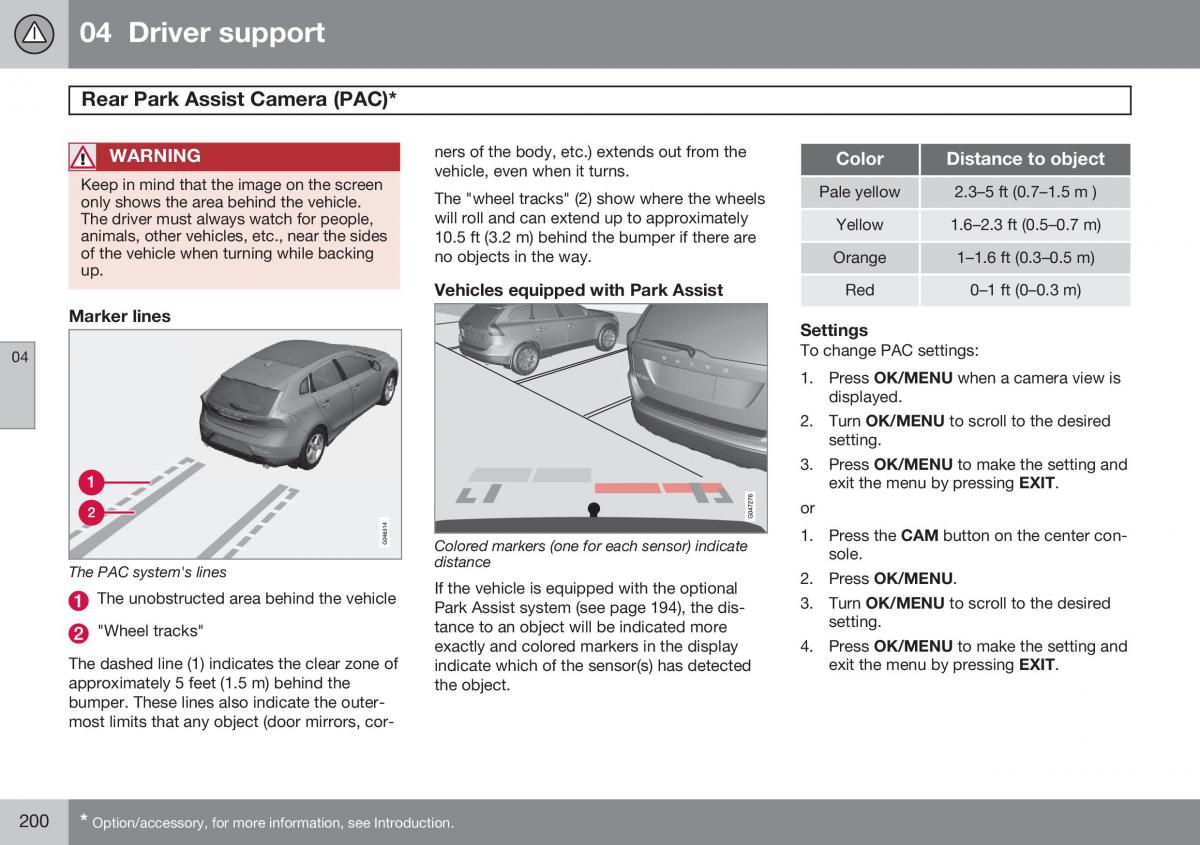

04 Driver support Rear Park Assist Camera (PAC)* ners of the body, etc.) extends out from the WARNING Color Distance to object vehicle, even when it turns. Keep in mind that the image on the screen Pale yellow2.3–5 ft (0.7–1.5 m ) The "wheel tracks" (2) show where the wheels only shows the area behind the vehicle. The driver must always watch for people,will roll and can extend up to approximately Yellow 1.6–2.3 ft (0.5–0.7 m) animals, other vehicles, etc., near the sides10.5 ft (3.2 m) behind the bumper if there are of the vehicle when turning while backing no objects in the way. Orange 1–1.6 ft (0.3–0.5 m) up. Vehicles equipped with Park AssistRed 0–1 ft (0–0.3 m) Marker lines Settings To change PAC settings: 04 1.Press OK/MENU when a camera view is displayed. 2.Turn OK/MENU to scroll to the desired setting. 3.Press OK/MENU to make the setting and exit the menu by pressing EXIT. or 1.Press the CAM button on the center con- Colored markers (one for each sensor) indicate sole. distance The PAC system's lines 2.Press OK/MENU. If the vehicle is equipped with the optional The unobstructed area behind the vehicle 3.Turn OK/MENU to scroll to the desired Park Assist system (see page 194), the dis- setting. tance to an object will be indicated more "Wheel tracks" exactly and colored markers in the display4.Press OK/MENU to make the setting and The dashed line (1) indicates the clear zone of exit the menu by pressing EXIT. indicate which of the sensor(s) has detected approximately 5 feet (1.5 m) behind the the object. bumper. These lines also indicate the outer- most limits that any object (door mirrors, cor- 200 * Option/accessory, for more information, see Introduction.
