owners manual VW Golf VII

owners manual VW Golf VII - year of production: 2012 - VW Golf VII 7 SportWagen Variant owners manual EN

Document: pdf (6.46 MB) 439 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

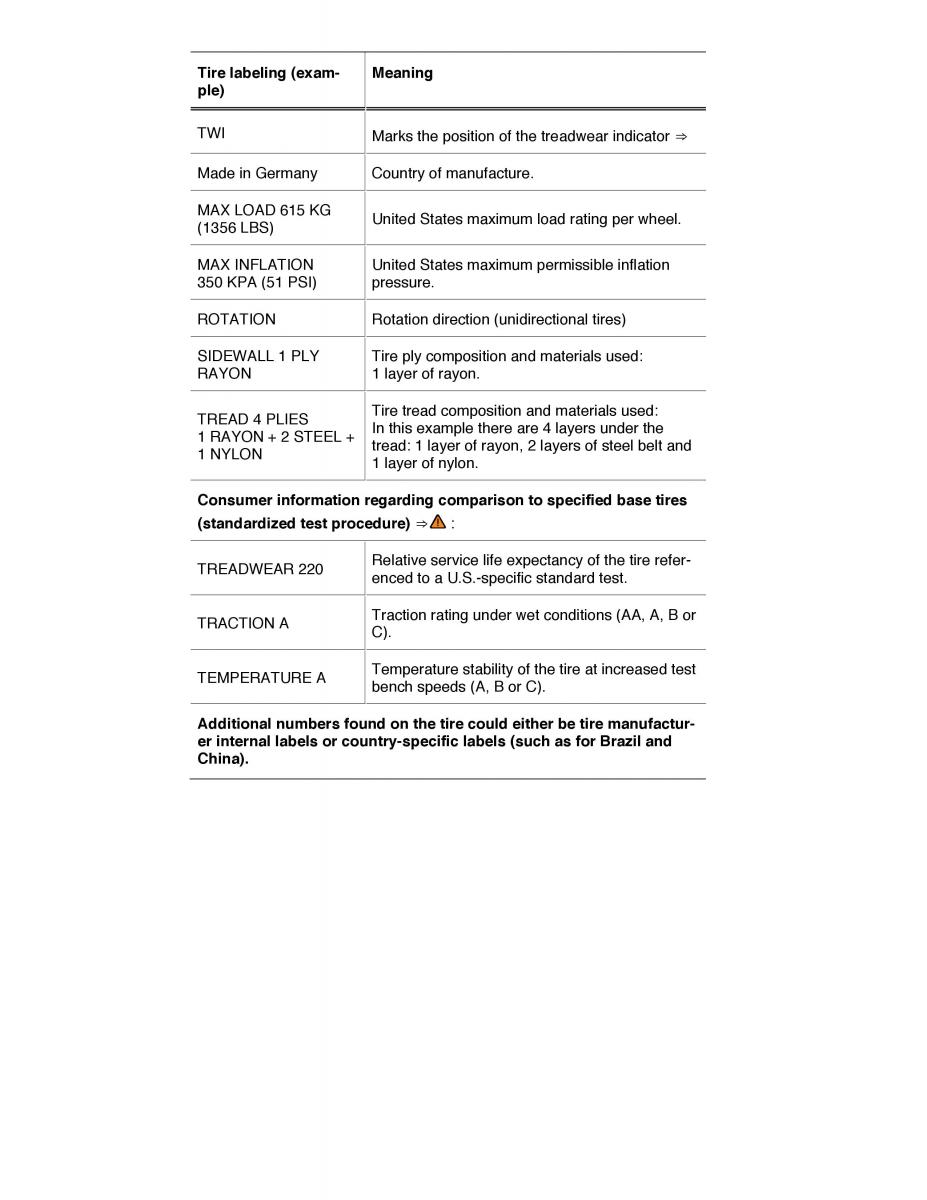

Tire labeling (exam-Meaning ple) TWI Marks the position of the treadwear indicator ⇒ Made in Germany Country of manufacture. MAX LOAD 615 KG United States maximum load rating per wheel. (1356 LBS) MAX INFLATION United States maximum permissible inflation 350 KPA (51 PSI) pressure. ROTATION Rotation direction (unidirectional tires) SIDEWALL 1 PLY Tire ply composition and materials used: RAYON 1 layer of rayon. TREAD 4 PLIES Tire tread composition and materials used: 1 RAYON + 2 STEEL + In this example there are 4 layers under the 1 NYLON tread: 1 layer of rayon, 2 layers of steel belt and 1 layer of nylon. Consumer information regarding comparison to specified base tires (standardized test procedure) ⇒ : TREADWEAR 220 Relative service life expectancy of the tire refer- enced to a U.S.-specific standard test. TRACTION A Traction rating under wet conditions (AA, A, B or C). TEMPERATURE A Temperature stability of the tire at increased test bench speeds (A, B or C). Additional numbers found on the tire could either be tire manufactur- er internal labels or country-specific labels (such as for Brazil and China).
