owners manual Volvo 850

owners manual Volvo 850 - year of production: 1991, 1992, 1993, 1994, 1995, 1996 - Volvo 850 owners manual EN

Document: pdf (4.35 MB) 265 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Volvo 850, year of production 1991 - 1996:

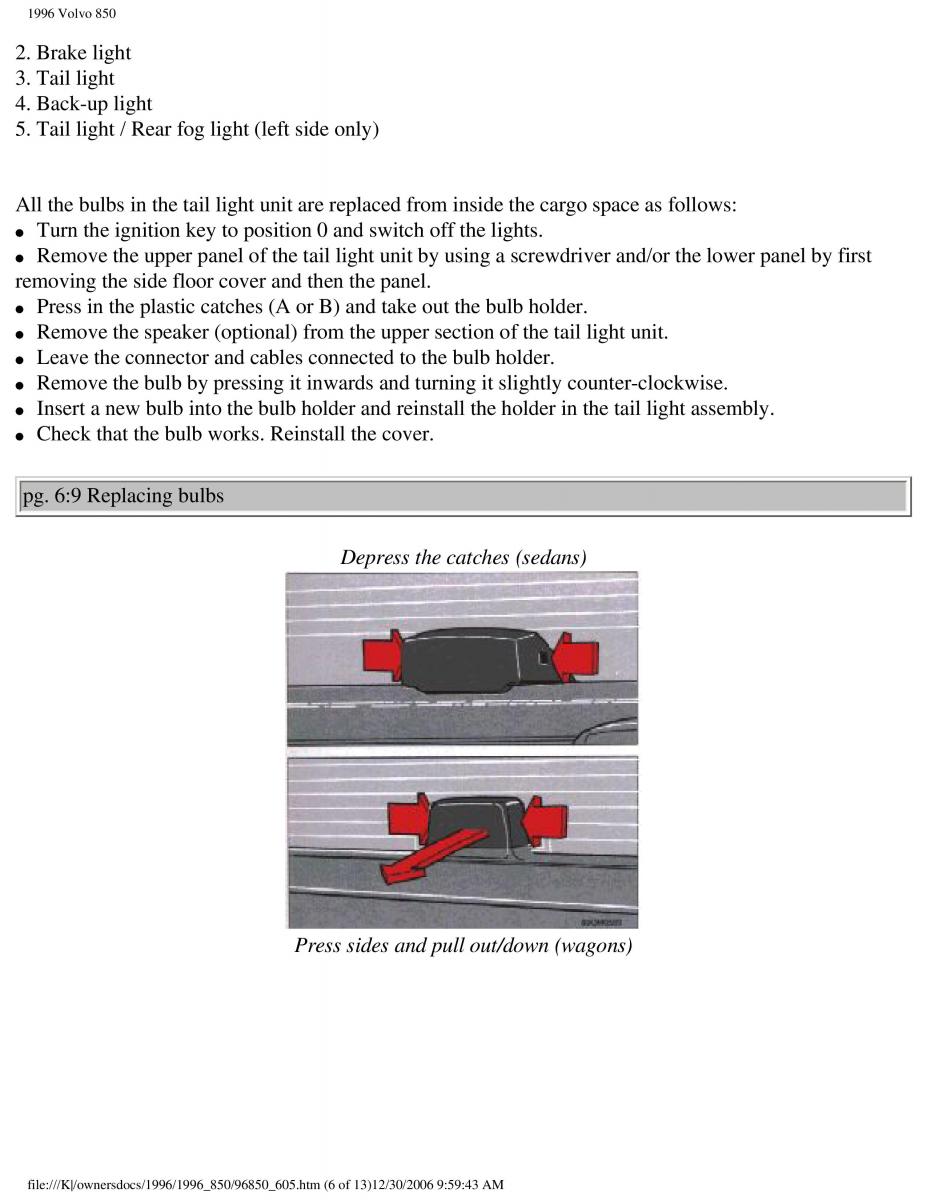

1996 Volvo 850 2. Brake light 3. Tail light 4. Back-up light 5. Tail light / Rear fog light (left side only) All the bulbs in the tail light unit are replaced from inside the cargo space as follows: ● Turn the ignition key to position 0 and switch off the lights. ● Remove the upper panel of the tail light unit by using a screwdriver and/or the lower panel by first removing the side floor cover and then the panel. ● Press in the plastic catches (A or B) and take out the bulb holder. ● Remove the speaker (optional) from the upper section of the tail light unit. ● Leave the connector and cables connected to the bulb holder. ● Remove the bulb by pressing it inwards and turning it slightly counter-clockwise. ● Insert a new bulb into the bulb holder and reinstall the holder in the tail light assembly. ● Check that the bulb works. Reinstall the cover. pg. 6:9 Replacing bulbs Depress the catches (sedans) Press sides and pull out/down (wagons) file:///K|/ownersdocs/1996/1996_850/96850_605.htm (6 of 13)12/30/2006 9:59:43 AM
