text version of content this owner's manual page from owners manual to the vehicle Citroen DS3, year of production 2009:

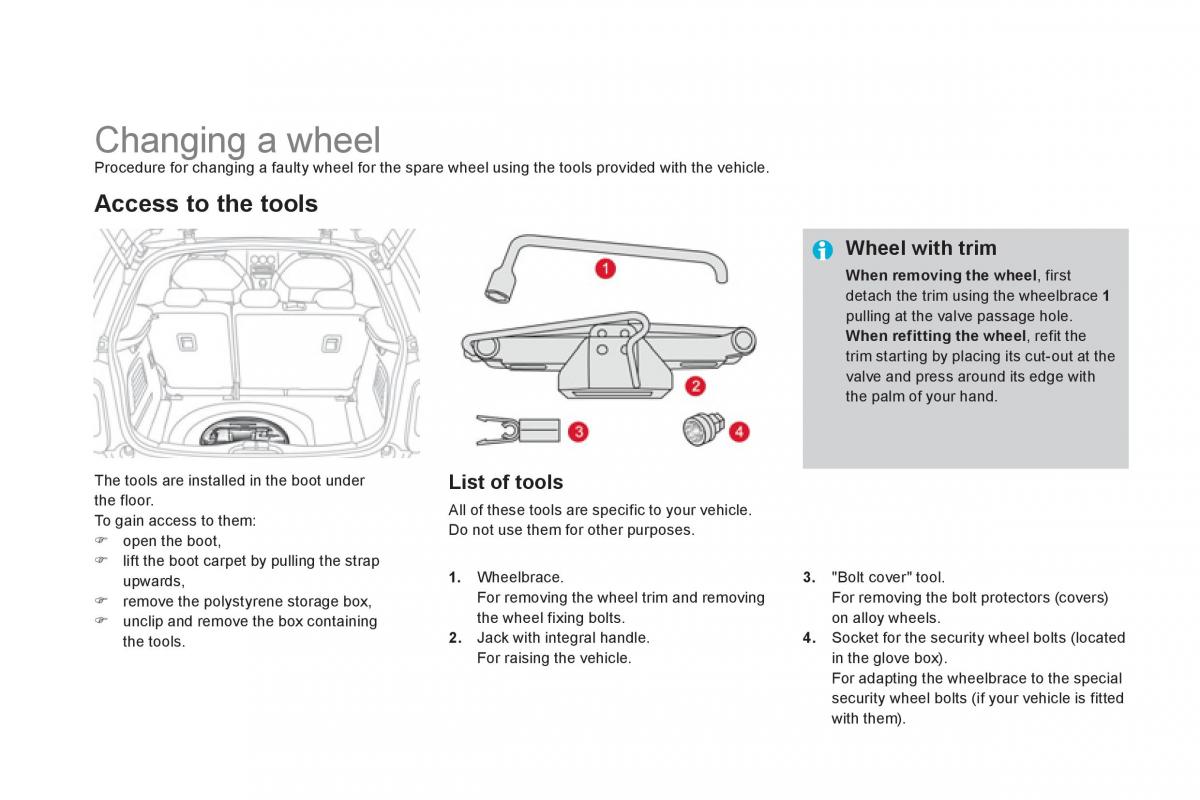

C hanging a wheel Procedure for changing a faulty wheel for the spare wheel using the tools provided with the vehicle. A ccess to the tools W heel with trim W hen removing the wheel , first detach the trim using the wheelbrace 1 pulling at the valve passage hole. W hen refitting the wheel , refit the trim starting by placing its cut-out at the valve and press around its edge with the palm of your hand. The tools are installed in the boot under L ist of tools the floor. All of these tools are specific to your vehicle. To gain access to them: Do not use them for other purposes. ) open the boot, ) lift the boot carpet by pulling the strap upwards, 1. Wheelbra ce. 3. "Bolt cover" tool. ) remove the polystyrene storage box, For removing the wheel trim and removing For removing the bolt protectors (covers) ) unclip and remove the box containing the wheel fixing bolts. on alloy wheels. the tools. 2. Jack with integral handle. 4. Socket for the security wheel bolts (located For raising the vehicle. in the glove box). For adapting the wheelbrace to the special security wheel bolts (if your vehicle is fitted with them).
