owners manual Peugeot 5008

owners manual Peugeot 5008 - year of production: 2017 - Peugeot 5008 II 2 owners manual EN

Document: pdf (13.61 MB) 364 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Peugeot 5008, year of production 2017:

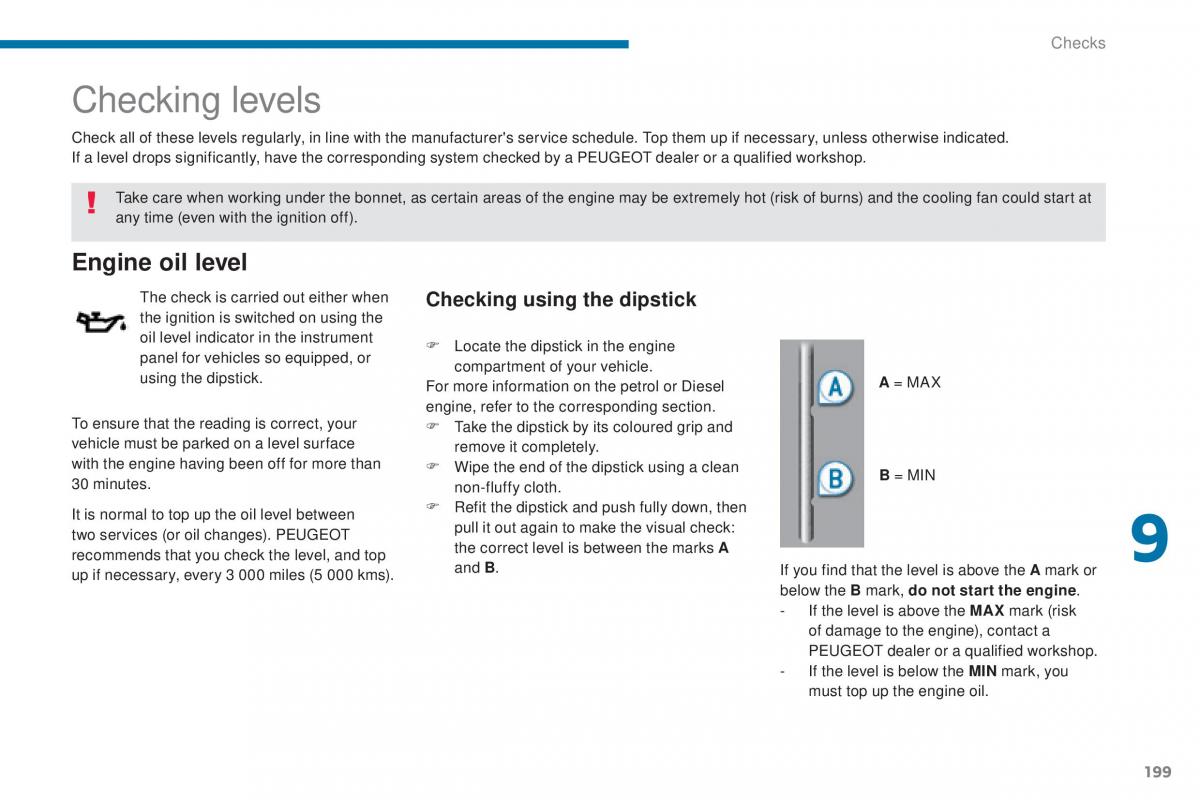

Checks Checking levels Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless otherwise indicated. If a level drops significantly, have the corresponding system checked by a PEUGEOT dealer or a qualified workshop. Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at any time (even with the ignition off). Engine oil level The check is carried out either when Checking using the dipstick the ignition is switched on using the oil level indicator in the instrument F Locate the dipstick in the engine panel for vehicles so equipped, or compartment of your vehicle. using the dipstick.For more information on the petrol or Diesel A = MAX engine, refer to the corresponding section. To ensure that the reading is correct, your F Take the dipstick by its coloured grip and vehicle must be parked on a level surface remove it completely. with the engine having been off for more than F Wipe the end of the dipstick using a clean B = MIN 30 minutes. non-fluffy cloth. It is normal to top up the oil level between F Refit the dipstick and push fully down, then two services (or oil changes). PEUGEOT pull it out again to make the visual check: recommends that you check the level, and top the correct level is between the marks A and B. If you find that the level is above the A mark or 9 up if necessary, every 3 000 miles (5 000 kms). below the B mark, do not start the engine. - If the level is above the MAX mark (risk of damage to the engine), contact a PEUGEOT dealer or a qualified workshop. - If the level is below the MIN mark, you must top up the engine oil. 199 5008_en_Chap09_verifications_ed01-2015

Download PDF

Click here to download a pdf file with an instruction manual for Peugeot 5008
year of production from: 2017

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Peugeot 5008 II 2 owners manual
pages 198 - 204

Peugeot 5008 II 2 owners manual
page 201 / 364

this site is maintained by advertising - for view instructions, turn off ad blocking in your browser

Peugeot 5008 II 2 owners manual / page 201
