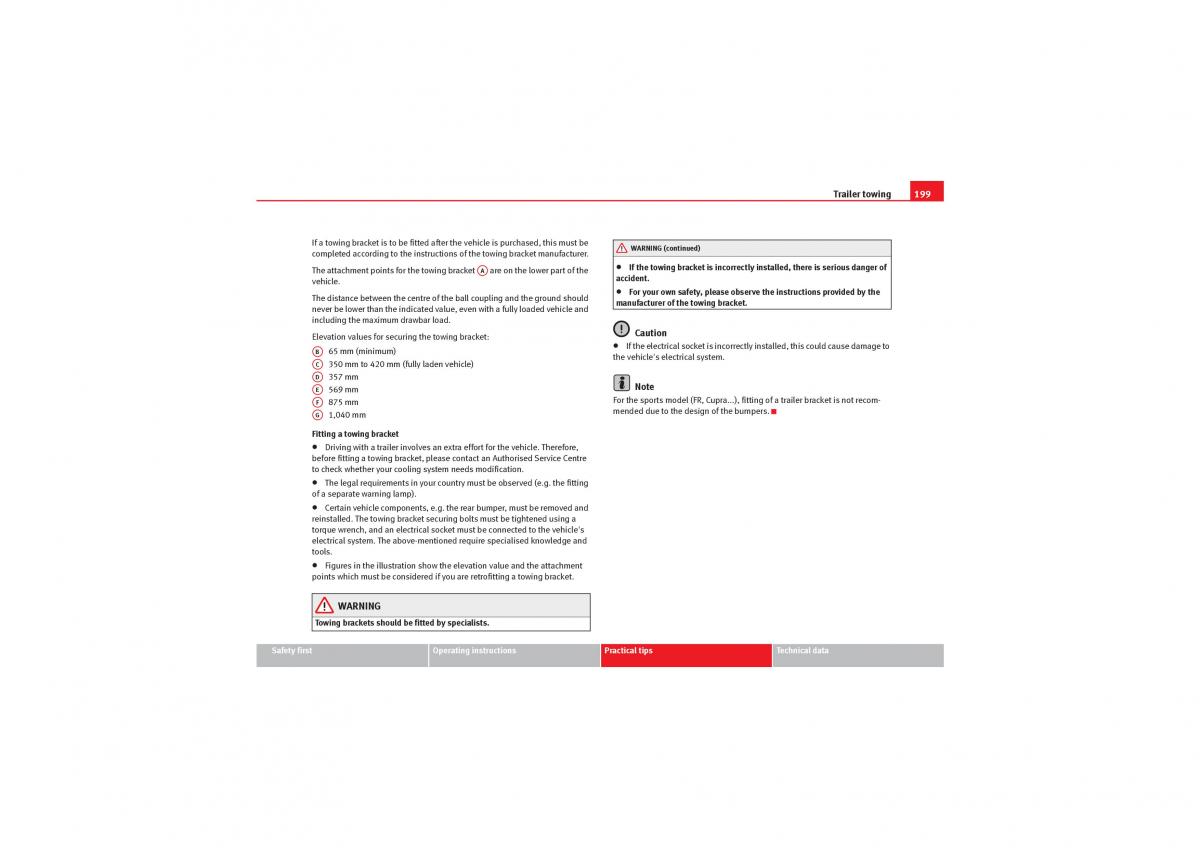

leon_EN.book Seite 199 Donnerstag, 15. April 2010 9:19 09 Trailer towing 199 If a towing bracket is to be fitted after the vehicle is purchased, this must be WARNING (continued) completed according to the instructions of the towing bracket manufacturer. The attachment points for the towing bracket A are on the lower part of the • If the towing bracket is incorrectly installed, there is serious danger of A accident. vehicle. • For your own safety, please observe the instructions provided by the The distance between the centre of the ball coupling and the ground should manufacturer of the towing bracket. never be lower than the indicated value, even with a fully loaded vehicle and including the maximum drawbar load. Elevation values for securing the towing bracket: Caution B 65 mm (minimum) • If the electrical socket is incorrectly installed, this could cause damage to A the vehicle's electrical system. C 350 mm to 420 mm (fully laden vehicle) A D 357 mm A E 569 mm Note A F 875 mm For the sports model (FR, Cupra.), fitting of a trailer bracket is not recom- A G 1,040 mm mended due to the design of the bumpers. A Fitting a towing bracket • Driving with a trailer involves an extra effort for the vehicle. Therefore, before fitting a towing bracket, please contact an Authorised Service Centre to check whether your cooling system needs modification. • The legal requirements in your country must be observed (e.g. the fitting of a separate warning lamp). • Certain vehicle components, e.g. the rear bumper, must be removed and reinstalled. The towing bracket securing bolts must be tightened using a torque wrench, and an electrical socket must be connected to the vehicle's electrical system. The above-mentioned require specialised knowledge and tools. • Figures in the illustration show the elevation value and the attachment points which must be considered if you are retrofitting a towing bracket. WARNING Towing brackets should be fitted by specialists. Safety first Operating instructions Practical tips Technical data
