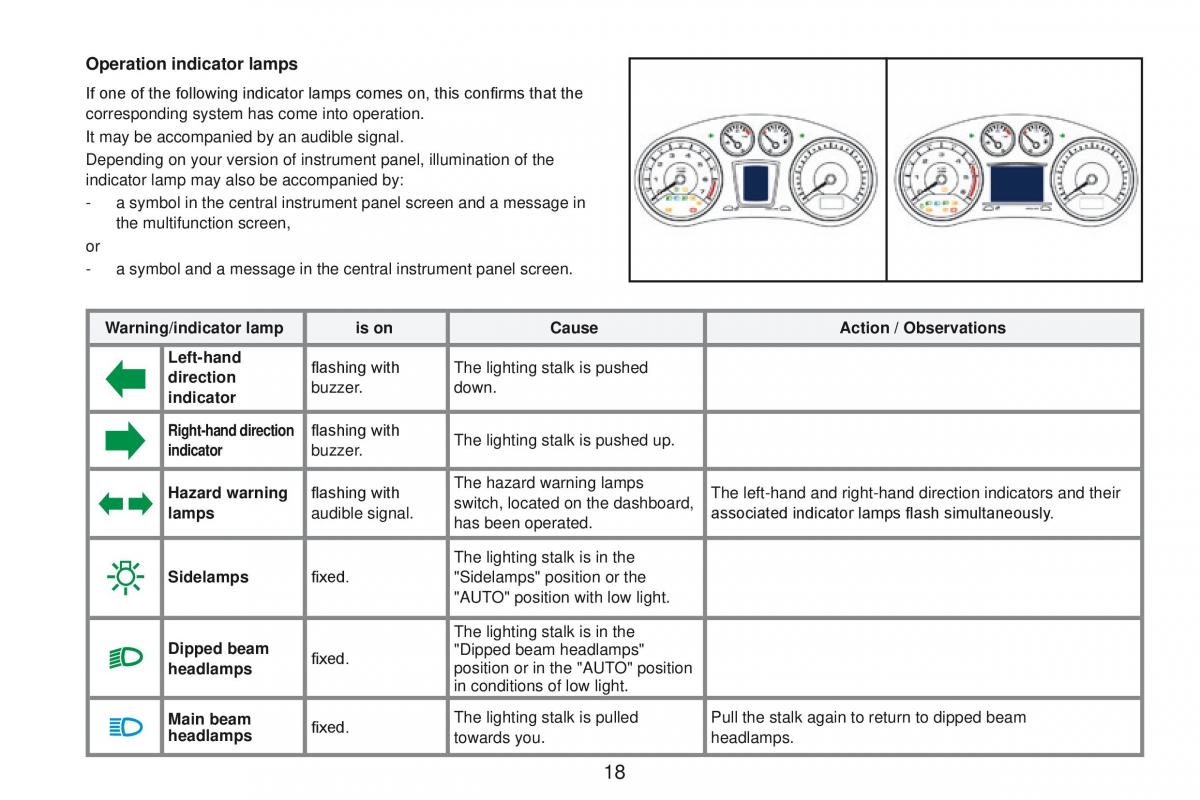

Operation indicator lamps
If one of the following indicator lamps comes on, this conirms that the
corresponding system has come into operation.
It may be accompanied by an audible signal.
Depending on your version of instrument panel, illumination of the
indicator lamp may also be accompanied by:
- a symbol in the central instrument panel screen and a message in
the multifunction screen,
or
- a symbol and a message in the central instrument panel screen.
Warning/indicator lampis on Cause Action / Observations
Left-hand lashing with The lighting stalk is pushed
direction buzzer. down.
indicator
Right-hand direction lashing with The lighting stalk is pushed up.
indicatorbuzzer.
Hazard warning lashing with The hazard warning lamps The left-hand and right-hand direction indicators and their
lamps audible signal.switch, located on the dashboard, associated indicator lamps lash simultaneously.
has been operated.
The lighting stalk is in the
Sidelampsixed. "Sidelamps" position or the
"AUTO" position with low light.
The lighting stalk is in the
dipped beam ixed. "Dipped beam headlamps"
headlamps position or in the "AUTO" position
in conditions of low light.
Main beam ixed. The lighting stalk is pulled Pull the stalk again to return to dipped beam
headlamps towards you. headlamps.
18
