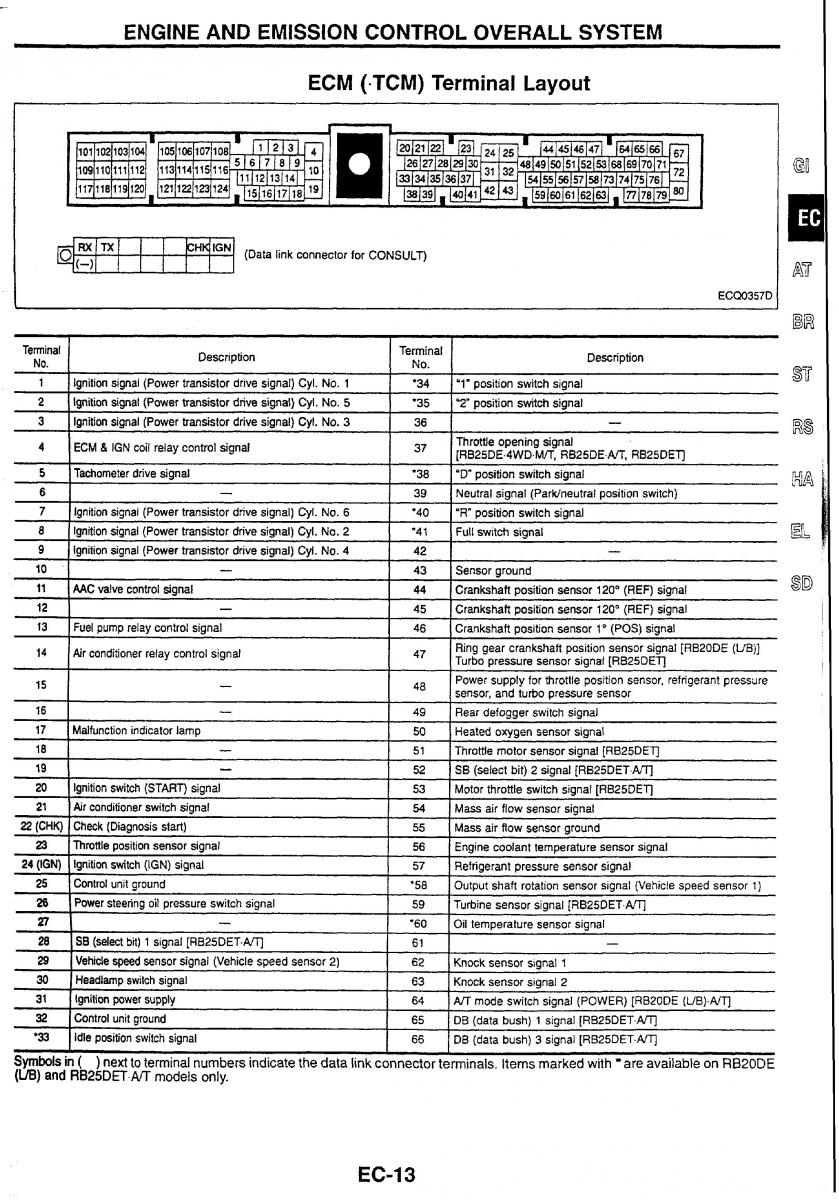

ENGINE AND EMISSION CONTROL OVERALL SYSTEM
ECM (-TCM) Terminal Layout
CH~'GN-
I GY (Data link connector for CONSULT)
Terminal Description Terminal Description
NO. 1 1 No I
- -
1 I lgnition signal (Power transistor drrve signal) Cyl. No. 1 1 '34 Iu1" positron switch signal
-- ----
2 1 Ignition signal (Power transistor drive signal) Cyl. No. 5 1 '35 1 ''2" posifion switch signal
3 1 Ignition signal (Power transistor drive signal) Cyl. No. 3 1 36 1 - - -
4 I ECM 6 IGN coil relay control signal Throttle opening signal
[RB25DE.4WD,M/TS RB25DE.m RB25DEll
1 37 1
5 Tachometer drive signal - '38 "D" position switch signal
6 39 Neutral signal (Parklneutral position switch)
7 Ignition signal (Power transistor drive signal) Cyl. No. 6 '40 "R" position switch signal
- - - -- - - - -
8 ( Ignition signal (Power transistor drive signal) Cyl. No. 2 ( '41 1 f-k swltch signal
9 Ignition signal (Power transistor drive signal) Cyl. No. 4 42 - -
10 - 43 Sensor around
11 ( AAC valve control signal - ( 44 1 Crankshaft position sensor 120' (REF) signal
12 45 Crankshaft position sensor 120" (REF) signal
13 Fuel pump relay control signal 46 Crankshaft position sensor 1 " (POS) signal
14 Air conditioner relay control signal 47 Ring gear crankshaft position sensor signal [RB20DE (UB)]
Turbo pressure sensor signal LRB25DEl-J
15 - 48 Power supply for throttle position sensor, refrigerant pressure
- sensor, and turbo pressure sensor
16 49 Rear defogger switch signal
17 Malfunction indicator lamp - 50 Heated oxygen sensor signal
18 - 51 Throttle motor sensor signal [RB25DET]
19 52 SB (select bit) 2 signal (RB25DET.ATJ
20 Ignition switch (START) signal 53 Motor throttle switch signal [RB25DET]
21 Air conditioner switch signal 54 Mass air flow sensor signal
22 (CHK) Check (Diagnosis start) 55 Mass air flow sensor ground
23 Throttle position sensor signal 56 Engine coolant temperature sensor signal
24 (IGN) Ignition switch (IGN) signal 57 Refrigerant pressure sensor signal
25 Control unit ground '58 Output shaft rotation sensor signal (Vehicle speed sensor 1)
26 Power steering oil pressure switch signal 59 Turbine sensor signal [RB25DET.AlTj
27 - '60 Oil temperature sensor signal
28 1 SB (select bit) 1 signal [RB25DET.A/Tl 61
29 1 Vehicle speed sensor signal (Vehicle speed sensor 2) 62 Knock sensor signal 1
30 Headlamp switch signal 63 Knock sensor signal 2
31 Ignition power supply 64 PJT mode switch signal (POWER) [RB20DE (UB).A/Tl
32 Control unit ground 65 DB (data bush) 1 signal [RB25DET.W
'33 Idle position switch signal 66 DB (data bush) 3 signal [RB25DET.W
Symbols in ( ) next to terminal numbers indicate the data link connector terminals. Items marked with are available on RB20DE
(UB) and RB25DET.m models only.
