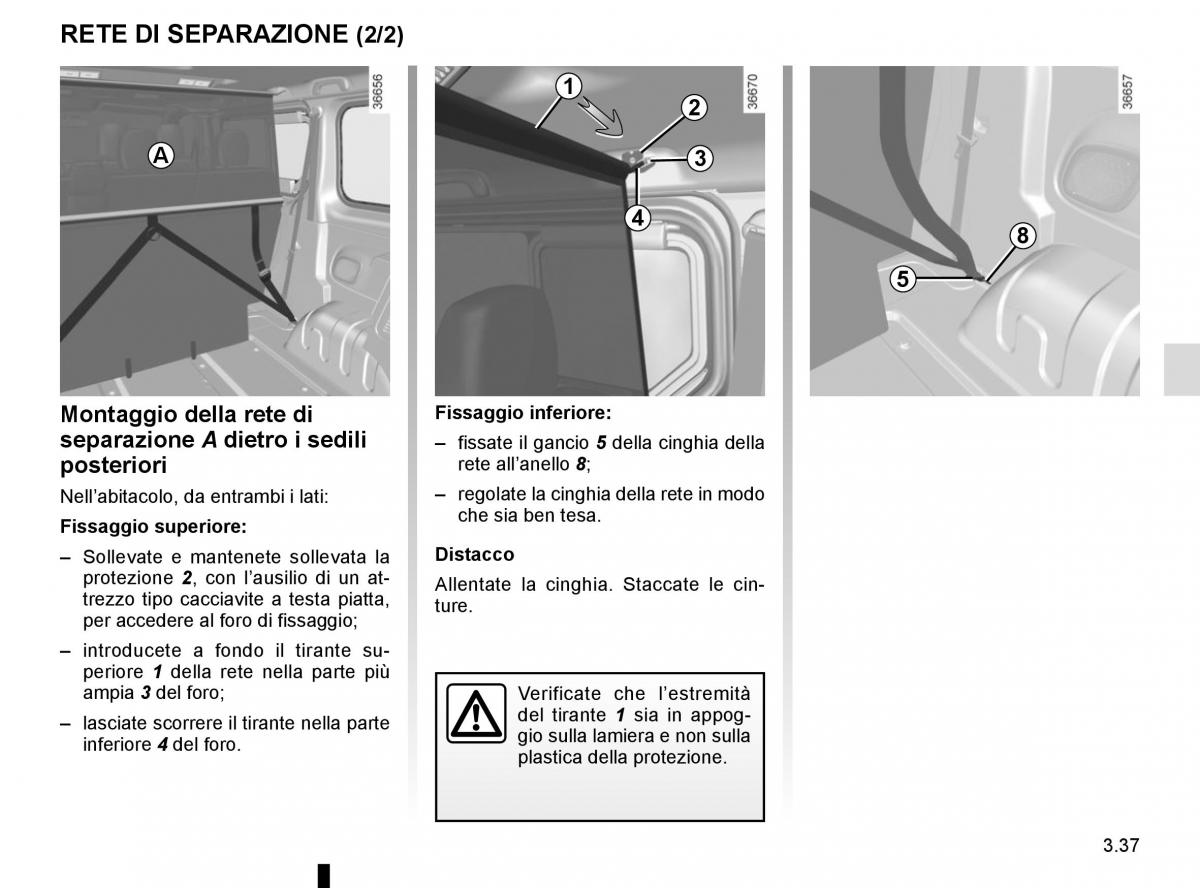

RETE DI SEPARAZIONE (2/2)
1 2
A 3
4 8
5
Montaggio della rete di Fissaggio inferiore:
separazione A dietro i sedili – fissate il gancio 5 della cinghia della
posteriori rete all’anello 8;
Nell’abitacolo, da entrambi i lati:– regolate la cinghia della rete in modo
Fissaggio superiore: che sia ben tesa.
Distacco
– Sollevate e mantenete sollevata la
protezione 2, con l’ausilio di un at-
Allentate la cinghia. Staccate le cin-
trezzo tipo cacciavite a testa piatta,
per accedere al foro di fissaggio;ture.
– introducete a fondo il tirante su-
periore 1 della rete nella parte più
ampia 3 del foro; Verificate che l’estremità
– lasciate scorrere il tirante nella parte del tirante 1 sia in appog-
inferiore 4 del foro. gio sulla lamiera e non sulla
plastica della protezione.
3.37
