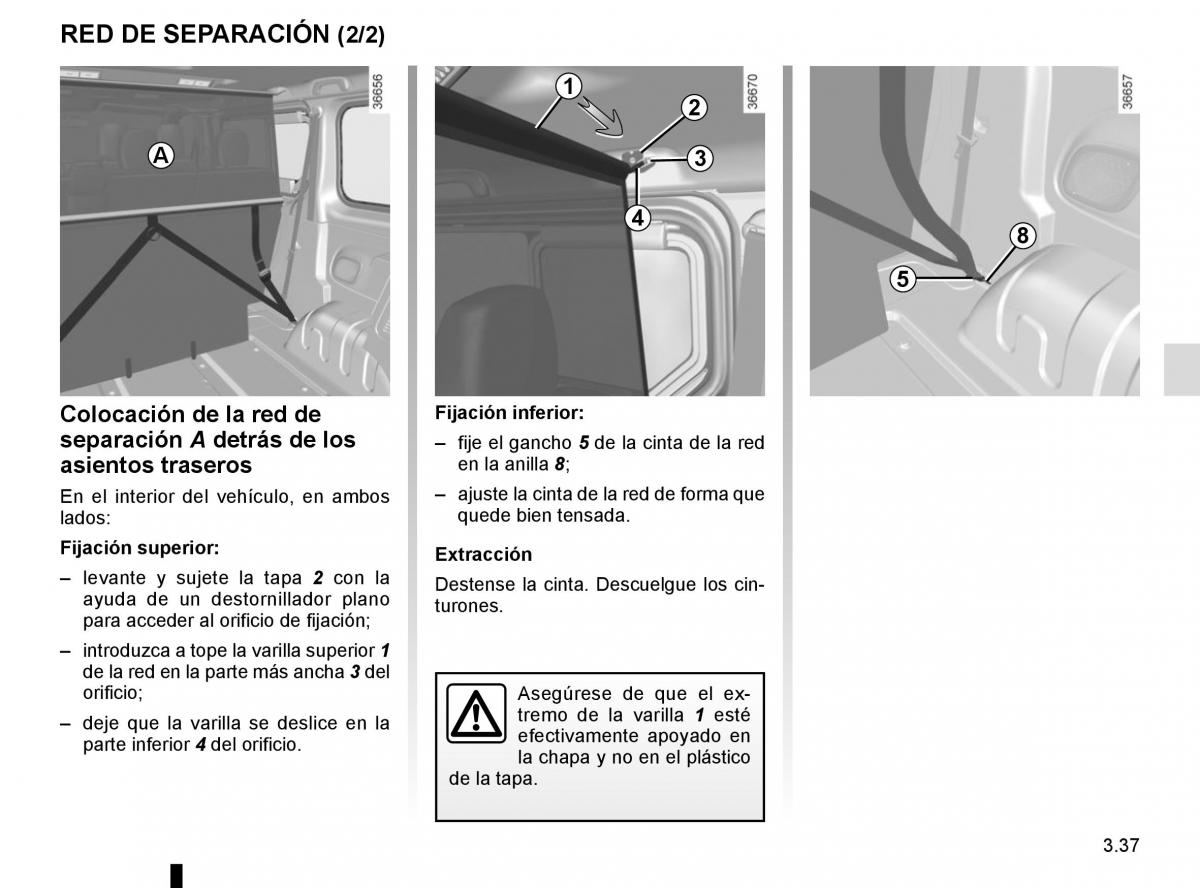

RED DE SEPARACIÓN (2/2)
1 2
A 3
4 8
5
Colocación de la red de Fijación inferior:
separación A detrás de los – fije el gancho 5 de la cinta de la red
asientos traseros en la anilla 8;
– ajuste la cinta de la red de forma que
En el interior del vehículo, en ambos
lados: quede bien tensada.
Fijación superior: Extracción
– levante y sujete la tapa 2 con la
Destense la cinta. Descuelgue los cin-
ayuda de un destornillador plano
para acceder al orificio de fijación;turones.
– introduzca a tope la varilla superior 1
de la red en la parte más ancha 3 del
orificio; Asegúrese de que el ex-
tremo de la varilla esté 1
– deje que la varilla se deslice en la
parte inferior 4 del orificio.efectivamente apoyado en
la chapa y no en el plástico
de la tapa.
3.37
