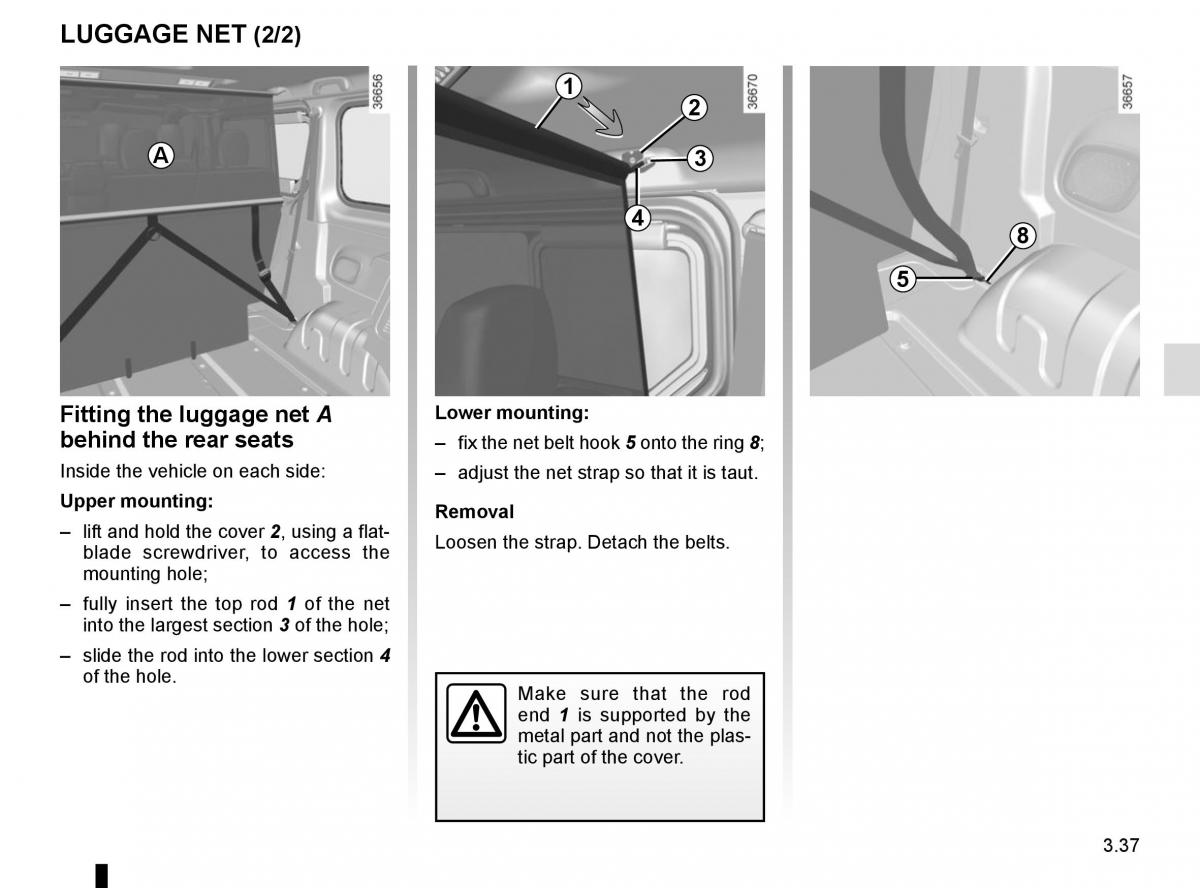

LUGGAGE NET (2/2)
1 2
A 3
4 8
5
Fitting the luggage net A Lower mounting:
behind the rear seats – fix the net belt hook 5 onto the ring 8;
Inside the vehicle on each side:– adjust the net strap so that it is taut.
Upper mounting: Removal
– lift and hold the cover 2, using a flat-Loosen the strap. Detach the belts.
blade screwdriver, to access the
mounting hole;
– fully insert the top rod 1 of the net
into the largest section 3 of the hole;
– slide the rod into the lower section 4
of the hole. Make sure that the rod
end 1 is supported by the
metal part and not the plas-
tic part of the cover.
3.37
