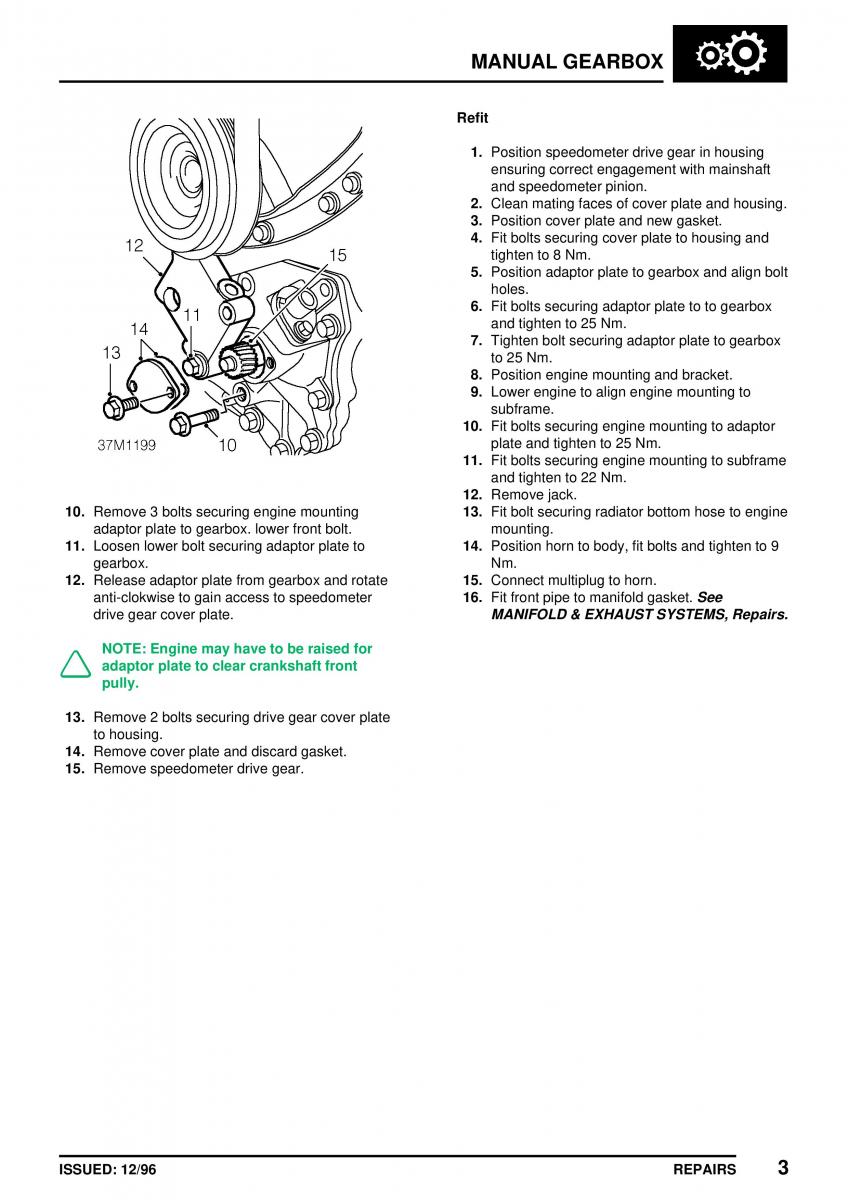

MANUALGEARBOX
Refit
1. Position speedometer drive gear in housing
ensuring correct engagement with mainshaft
andspeedometerpinion.
2. Clean mating faces of cover plate and housing.
3. Position cover plate and new gasket.
4. Fit bolts securing cover plate to housing and
tighten to 8 Nm.
5. Position adaptor plate to gearbox and align bolt
holes.
6. Fit bolts securing adaptor plate to to gearbox
andtighten to 25 Nm.
7. Tighten bolt securing adaptor plate to gearbox
to 25 Nm.
8. Position engine mounting and bracket.
9. Lower engine to align engine mounting to
subframe.
10. Fit bolts securing engine mounting to adaptor
plate and tighten to 25 Nm.
11. Fit bolts securing engine mounting to subframe
andtighten to 22 Nm.
12. Removejack.
10. Remove3boltssecuringenginemounting13. Fit bolt securing radiator bottom hose to engine
adaptor plate to gearbox. lower front bolt.mounting.
11. Loosen lower bolt securing adaptor plate to14. Position horn to body, fit bolts and tighten to 9
gearbox. Nm.
12. Release adaptor plate from gearbox and rotate15. Connect multiplug to horn.
anti-clokwise to gain access to speedometer16. Fit front pipe to manifold gasket. See
drive gear cover plate. MANIFOLD&EXHAUSTSYSTEMS,Repairs.
NOTE:Enginemayhavetoberaisedfor
adaptor plate to clear crankshaft front
pully.
13. Remove2boltssecuringdrive gear cover plate
to housing.
14. Removecoverplateanddiscardgasket.
15. Removespeedometerdrivegear.
ISSUED:12/96 REPAIRS 3
