VW CC owners manual page 198

text version of content this owner's manual page from owners manual to the vehicle VW CC, year of production 2012:

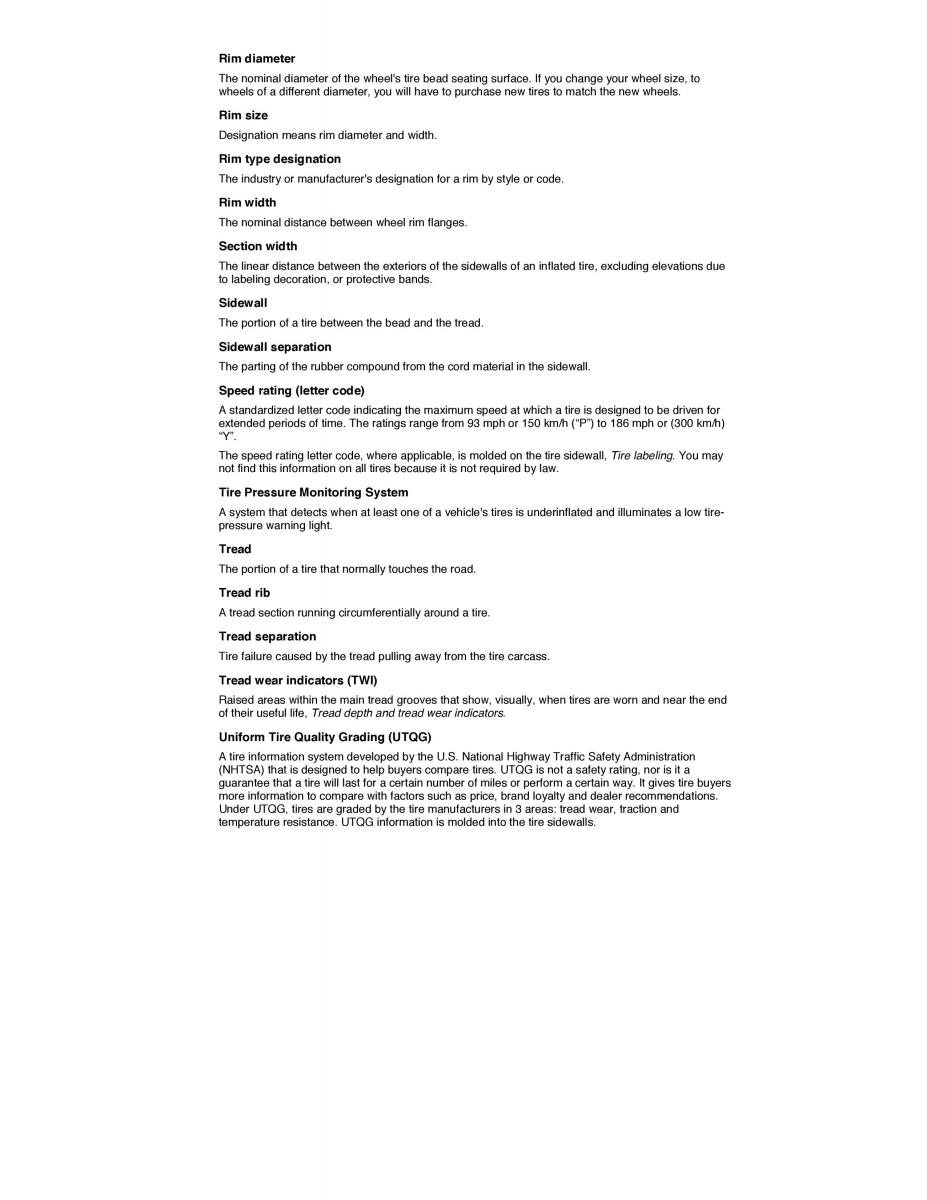

Rim diameter The nominal diameter of the wheel's tire bead seating surface. If you change your wheel size, to wheels of a different diameter, you will have to purchase new tires to match the new wheels. Rim size Designation means rim diameter and width. Rim type designation The industry or manufacturer's designation for a rim by style or code. Rim width The nominal distance between wheel rim flanges. Section width The linear distance between the exteriors of the sidewalls of an inflated tire, excluding elevations due to labeling decoration, or protective bands. Sidewall The portion of a tire between the bead and the tread. Sidewall separation The parting of the rubber compound from the cord material in the sidewall. Speed rating (letter code) A standardized letter code indicating the maximum speed at which a tire is designed to be driven for extended periods of time. The ratings range from 93 mph or 150 km/h (“P”) to 186 mph or (300 km/h) “Y”. The speed rating letter code, where applicable, is molded on the tire sidewall, Tire labeling. You may not find this information on all tires because it is not required by law. Tire Pressure Monitoring System A system that detects when at least one of a vehicle's tires is underinflated and illuminates a low tire- pressure warning light. Tread The portion of a tire that normally touches the road. Tread rib A tread section running circumferentially around a tire. Tread separation Tire failure caused by the tread pulling away from the tire carcass. Tread wear indicators (TWI) Raised areas within the main tread grooves that show, visually, when tires are worn and near the end of their useful life, Tread depth and tread wear indicators. Uniform Tire Quality Grading (UTQG) A tire information system developed by the U.S. National Highway Traffic Safety Administration (NHTSA) that is designed to help buyers compare tires. UTQG is not a safety rating, nor is it a guarantee that a tire will last for a certain number of miles or perform a certain way. It gives tire buyers more information to compare with factors such as price, brand loyalty and dealer recommendations. Under UTQG, tires are graded by the tire manufacturers in 3 areas: tread wear, traction and temperature resistance. UTQG information is molded into the tire sidewalls.
