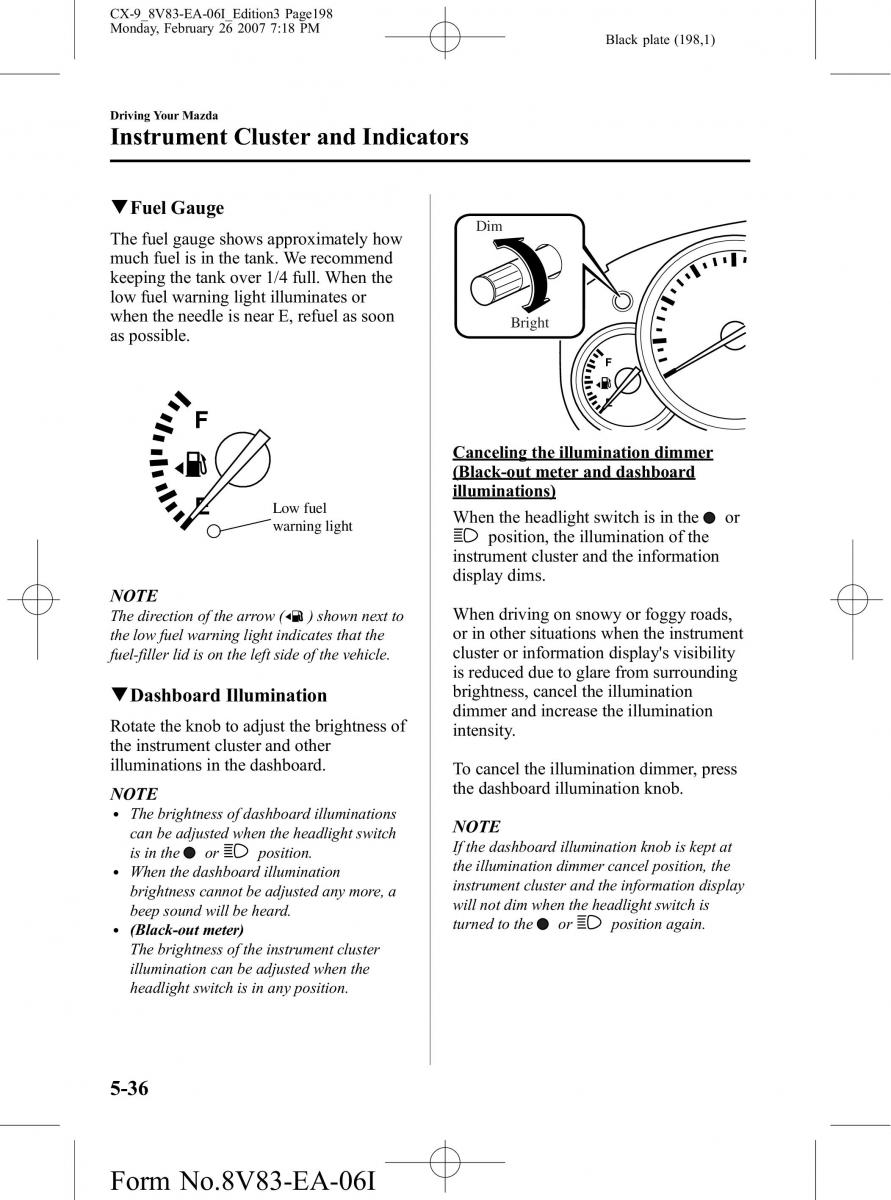

CX-9_8V83-EA-06I_Edition3 Page198
Monday, February 26 2007 7:18 PM
Black plate (198,1)
Driving Your Mazda
Instrument Cluster and Indicators
qFuelGauge
Thefuel gauge shows approximately how Dim
muchfuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
whentheneedle is near E, refuel as soon Bright
as possible.
Canceling the illumination dimmer
(Black-out meter and dashboard
illuminations)
Low fuel Whentheheadlight switch is in the or
warning light position, the illumination of the
instrument cluster and the information
display dims.
NOTE
The direction of the arrow ( ) shown next to Whendriving on snowy or foggy roads,
the low fuel warning light indicates that the or in other situations when the instrument
fuel-filler lid is on the left side of the vehicle. cluster or information display's visibility
is reduced due to glare from surrounding
qDashboardIllumination brightness, cancel the illumination
dimmer and increase the illumination
Rotate the knob to adjust the brightness of intensity.
the instrument cluster and other
illuminations in the dashboard. Tocancel the illumination dimmer, press
NOTE the dashboard illumination knob.
l Thebrightness of dashboard illuminations
can be adjusted when the headlight switch NOTE
is in the or position. If the dashboard illumination knob is kept at
l Whenthedashboardillumination the illumination dimmer cancel position, the
brightness cannot be adjusted any more, a instrument cluster and the information display
beep sound will be heard. will not dim when the headlight switch is
l (Black-out meter) turned to the or position again.
The brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
5-36
Form No.8V83-EA-06I
