owners manual Toyota Prius

owners manual Toyota Prius - year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009 - Toyota Prius II 2 NHW20 owners manual EN

Document: pdf (7.69 MB) 492 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Prius, year of production 2003 - 2009:

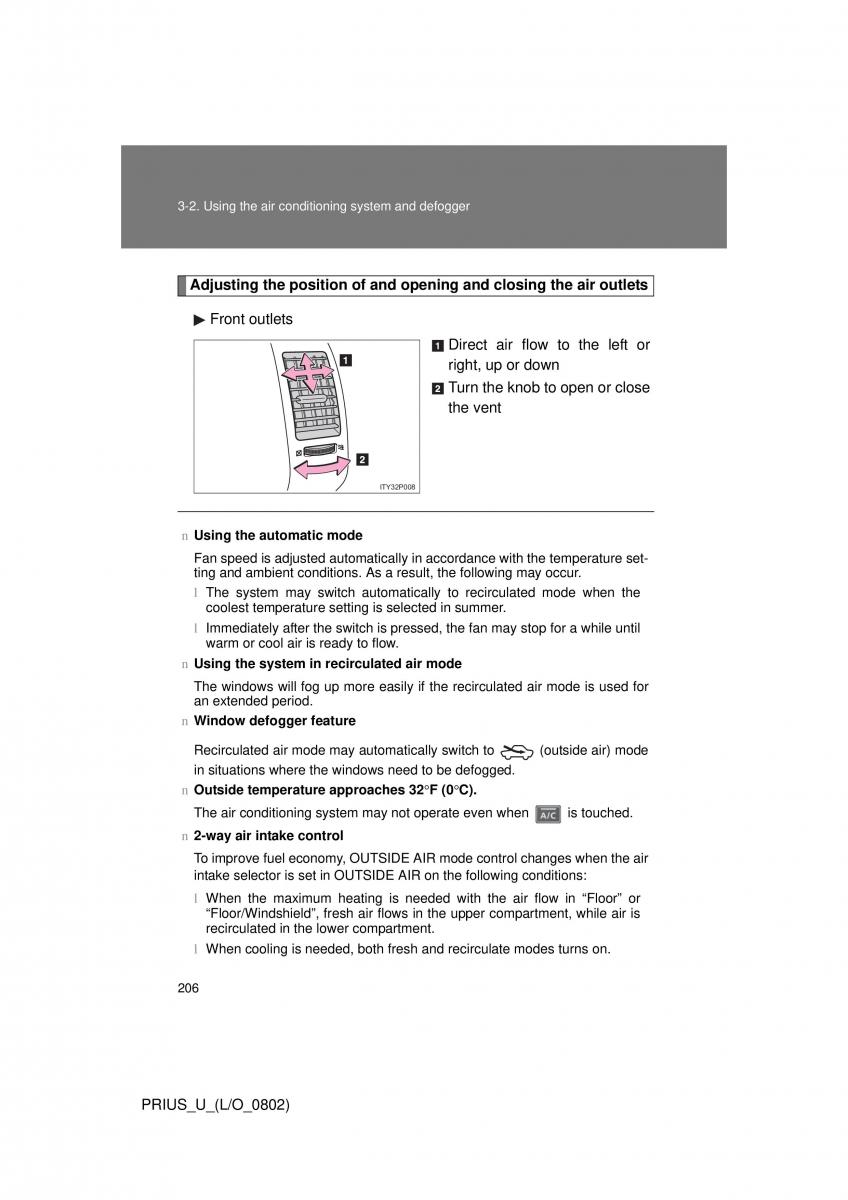

3-2. Using the air conditioning system and defogger Adjusting the position of and opening and closing the air outlets Front outlets Direct air flow to the left or right, up or down Turn the knob to open or close the vent ITY32P008 n Using the automatic mode Fan speed is adjusted automatically in accordance with the temperature set- ting and ambient conditions. As a result, the following may occur. l The system may switch automatically to recirculated mode when the coolest temperature setting is selected in summer. l Immediately after the switch is pressed, the fan may stop for a while until warm or cool air is ready to flow. n Using the system in recirculated air mode The windows will fog up more easily if the recirculated air mode is used for an extended period. n Window defogger feature Recirculated air mode may automatically switch to (outside air) mode in situations where the windows need to be defogged. n Outside temperature approaches 32°F (0°C). The air conditioning system may not operate even when is touched. n 2-way air intake control To improve fuel economy, OUTSIDE AIR mode control changes when the air intake selector is set in OUTSIDE AIR on the following conditions: l When the maximum heating is needed with the air flow in “Floor” or “Floor/Windshield”, fresh air flows in the upper compartment, while air is recirculated in the lower compartment. l When cooling is needed, both fresh and recirculate modes turns on. 206 PRIUS_U_(L/O_0802)
