text version of content this owner's manual page from owners manual to the vehicle Volvo S60, year of production 2000 - 2009:

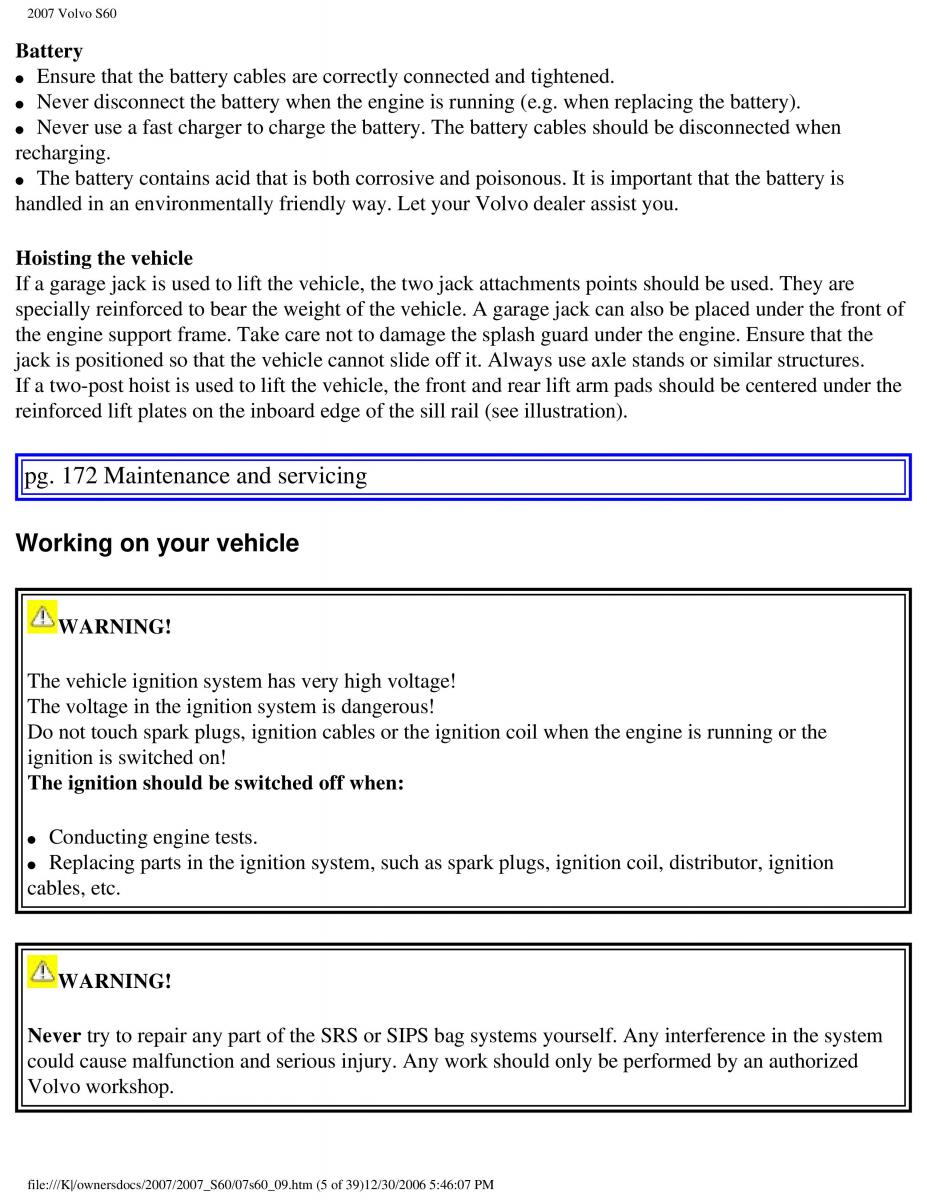

2007 Volvo S60 Battery ● Ensure that the battery cables are correctly connected and tightened. ● Never disconnect the battery when the engine is running (e.g. when replacing the battery). ● Never use a fast charger to charge the battery. The battery cables should be disconnected when recharging. ● The battery contains acid that is both corrosive and poisonous. It is important that the battery is handled in an environmentally friendly way. Let your Volvo dealer assist you. Hoisting the vehicle If a garage jack is used to lift the vehicle, the two jack attachments points should be used. They are specially reinforced to bear the weight of the vehicle. A garage jack can also be placed under the front of the engine support frame. Take care not to damage the splash guard under the engine. Ensure that the jack is positioned so that the vehicle cannot slide off it. Always use axle stands or similar structures. If a two-post hoist is used to lift the vehicle, the front and rear lift arm pads should be centered under the reinforced lift plates on the inboard edge of the sill rail (see illustration). pg. 172 Maintenance and servicing Working on your vehicle WARNING! The vehicle ignition system has very high voltage! The voltage in the ignition system is dangerous! Do not touch spark plugs, ignition cables or the ignition coil when the engine is running or the ignition is switched on! The ignition should be switched off when: ● Conducting engine tests. ● Replacing parts in the ignition system, such as spark plugs, ignition coil, distributor, ignition cables, etc. WARNING! Never try to repair any part of the SRS or SIPS bag systems yourself. Any interference in the system could cause malfunction and serious injury. Any work should only be performed by an authorized Volvo workshop. file:///K|/ownersdocs/2007/2007_S60/07s60_09.htm (5 of 39)12/30/2006 5:46:07 PM
