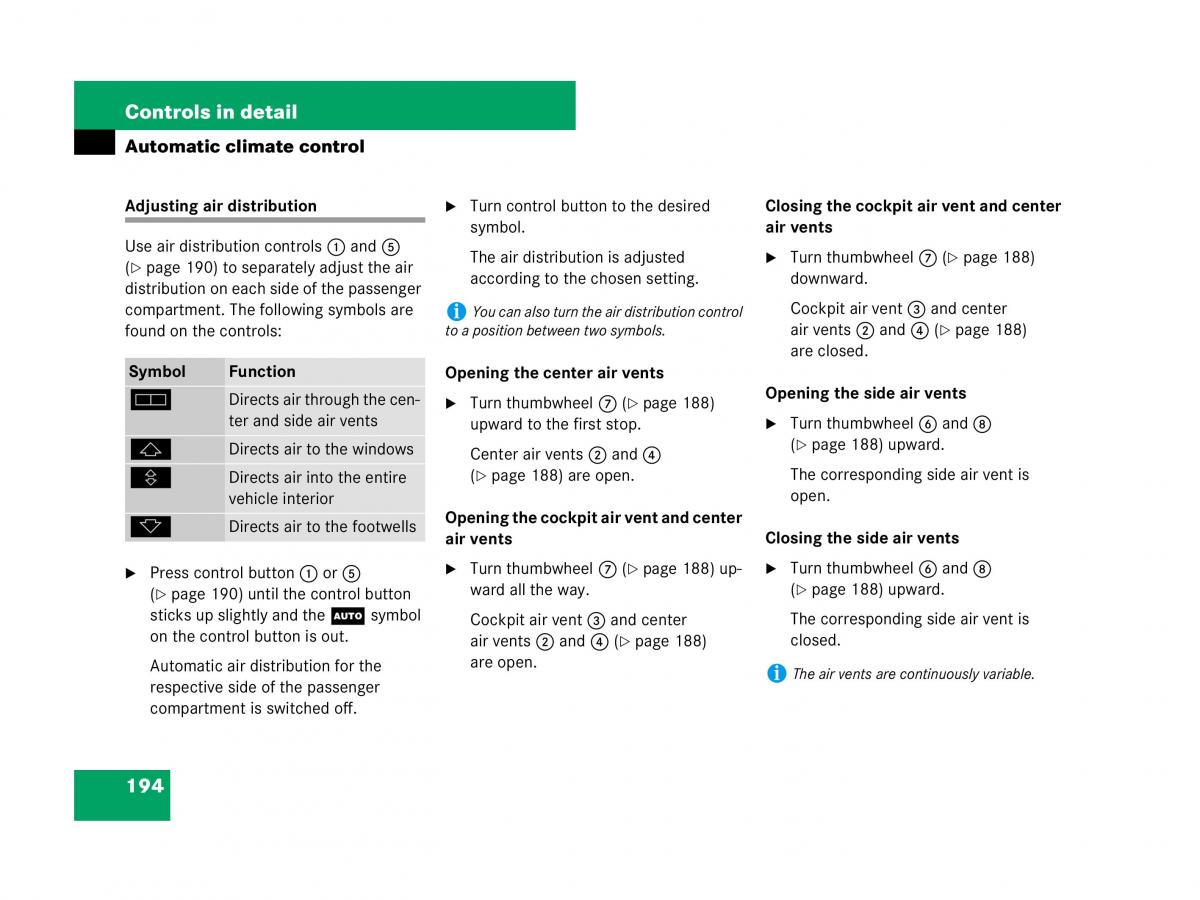

text version of content this owner's manual page from owners manual to the vehicle Mercedes SL, year of production 2001 - 2012:

Controls in detail Automatic climate control Adjusting air distribution Turn control button to the desired Closing the cockpit air vent and center symbol. air vents Use air distribution controls1 and 5 The air distribution is adjusted Turn thumbwheel 7 ( page 188) ( page 190) to separately adjust the air according to the chosen setting.downward. distribution on each side of the passenger compartment. The following symbols are iYou can also turn the air distribution control Cockpit air vent 3 and center found on the controls: to a position between two symbols.air vents 2 and 4 ( page 188) are closed. Symbol Function Opening the center air vents h Directs air through the cen- Turn thumbwheel 7 (page188) Opening the side air vents ter and side air ventsupward to the first stop. Turn thumbwheel 6 and 8 j Directs air to the windowsCenter air vents 2 and 4 ( page 188) upward. V Directs air into the entire ( page 188) are open.The corresponding side air vent is vehicle interior open. k Directs air to the footwellsOpening the cockpit air vent and center air vents Closing the side air vents Press control button 1 or 5 Turn thumbwheel 7 (page188) up- Turn thumbwheel 6 and 8 ( page 190) until the control button ward all the way.( page 188) upward. sticks up slightly and the U symbol Cockpit air vent 3 and center The corresponding side air vent is on the control button is out.air vents 2 and 4 ( page 188) closed. Automatic air distribution for the are open. iThe air vents are continuously variable. respective side of the passenger compartment is switched off. 194
