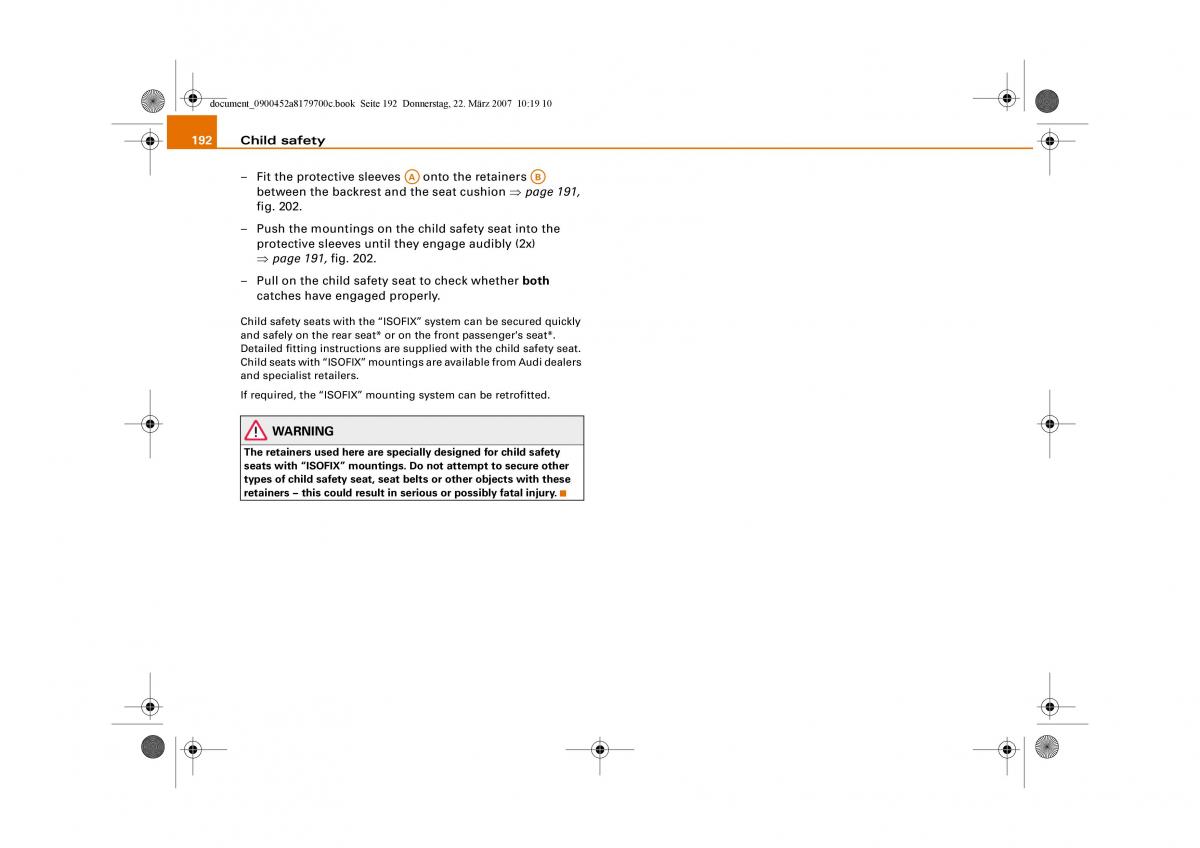

document_0900452a8179700c.book Seite 192 Donnerstag, 22. März 2007 10:19 10 192 Child safety – Fit the protective sleeves A onto the retainers B A A between the backrest and the seat cushion ⇒ page 191, fig. 202. – Push the mountings on the child safety seat into the protective sleeves until they engage audibly (2x) ⇒page191, fig.202. – Pull on the child safety seat to check whether both catches have engaged properly. Child safety seats with the “ISOFIX” system can be secured quickly and safely on the rear seat* or on the front passenger's seat*. Detailed fitting instructions are supplied with the child safety seat. Child seats with “ISOFIX” mounting s are available from Audi dealers and specialist retailers. If required, the “ISOFIX” mounting system can be retrofitted. WARNING The retainers used here are specially designed for child safety seats with “ISOFIX” mountings. Do not attempt to secure other types of child safety seat, seat belts or other objects with these retainers – this could result in serious or possibly fatal injury.
