text version of content this owner's manual page from owners manual to the vehicle Skoda Fabia, year of production 1999 - 2008:

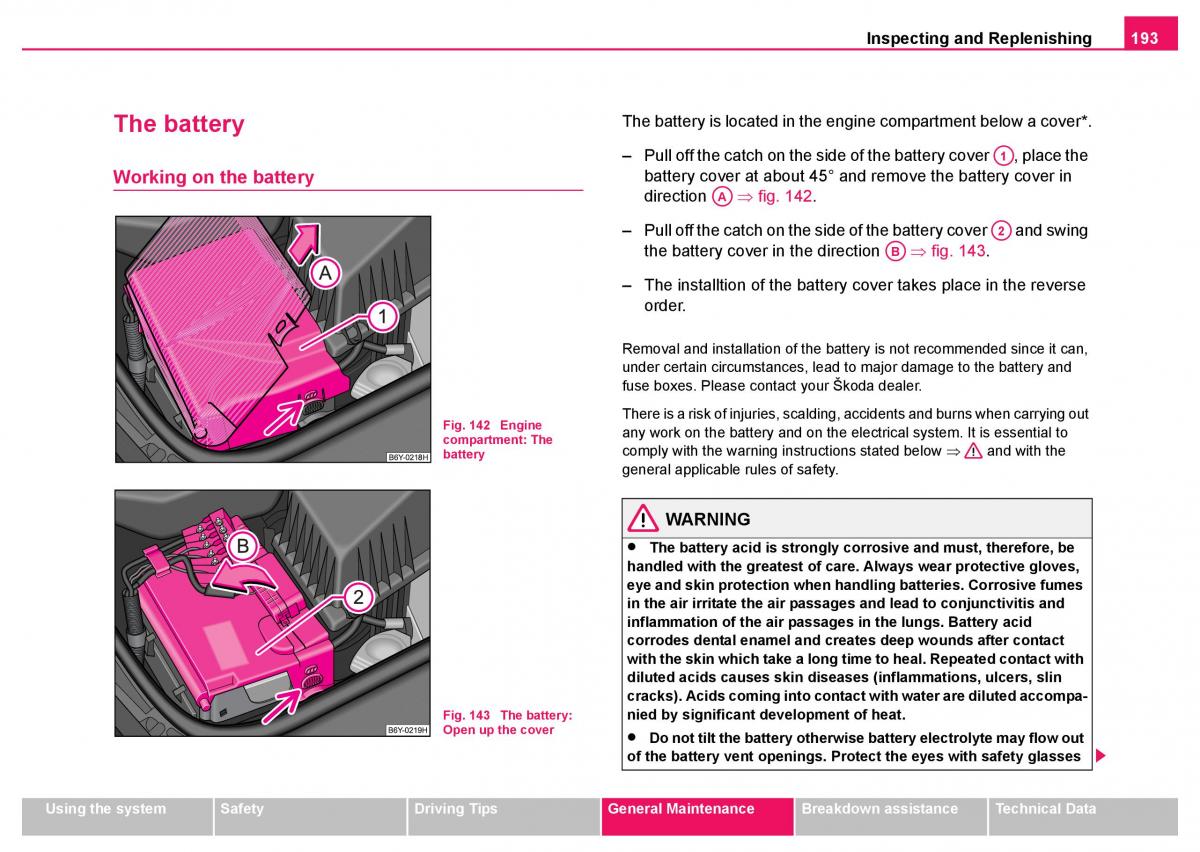

Inspecting and Replenishing 193 The battery The battery is located in the engine compartment below a cover*. 1 – Pull off the catch on the side of the battery cover A, place the Working on the battery battery cover at about 45° and remove the battery cover in A direction A ⇒ fig. 142. 2 – Pull off the catch on the side of the battery cover and swing A the battery cover in the direction B ⇒ fig. 143. A – The installtion of the battery cover takes place in the reverse order. Removal and installation of the battery is not recommended since it can, under certain circumstances, lead to major damage to the battery and fuse boxes. Please contact your Škoda dealer. Fig. 142 Engine There is a risk of injuries, scalding, accidents and burns when carrying out compartment: The any work on the battery and on the electrical system. It is essential to battery comply with the warning instructions stated below ⇒ and with the general applicable rules of safety. WARNING • The battery acid is strongly corrosive and must, therefore, be handled with the greatest of care. Always wear protective gloves, eye and skin protection when handling batteries. Corrosive fumes in the air irritate the air passages and lead to conjunctivitis and inflammation of the air passages in the lungs. Battery acid corrodes dental enamel and creates deep wounds after contact with the skin which take a long time to heal. Repeated contact with diluted acids causes skin diseases (inflammations, ulcers, slin cracks). Acids coming into contact with water are diluted accompa- Fig. 143 The battery: nied by significant development of heat. Open up the cover • Do not tilt the battery otherwise battery electrolyte may flow out of the battery vent openings. Protect the eyes with safety glasses Using the system Safety Driving Tips General Maintenance Breakdown assistanceTechnical Data
