text version of content this owner's manual page from owners manual to the vehicle Seat Ibiza, year of production 2008:
Accessories, replacement of parts and modifications 191
The distance between the centre of the ball coupling and the ground should
Note
never be lower than the indicated value, even with a fully loaded vehicle
Please observe the operating instructions of your mobile telephone/two-and including the maximum drawbar load.
way radio.
Elevation values for securing the towing bracket:
B 65 mm (minimum)
C from 350 mm to 420 mm (fully loaded vehicle)

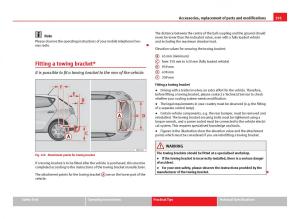

Fitting a towing bracket*
D 959 mm
E 438 mm
It is possible to fit a towing bracket to the rear of the vehicle.
F 209 mm
Fitting a towing bracket
● Driving with a trailer involves an extra effort for the vehicle. Therefore,
before fitting a towing bracket, please contact a Technical Service to check
whether your cooling system needs modification.
● The legal requirements in your country must be observed (e.g. the fitting
of a separate control lamp).
● Certain vehicle components, e.g. the rear bumper, must be removed and
reinstalled. The towing bracket securing bolts must be tightened using a
torque wrench, and a power socket must be connected to the vehicle electri-
cal system. This requires specialised knowledge and tools.
● Figures in the illustration show the elevation value and the attachment
points which must be considered if you are retrofitting a towing bracket.
WARNING
The towing brackets should be fitted at a specialised workshop.

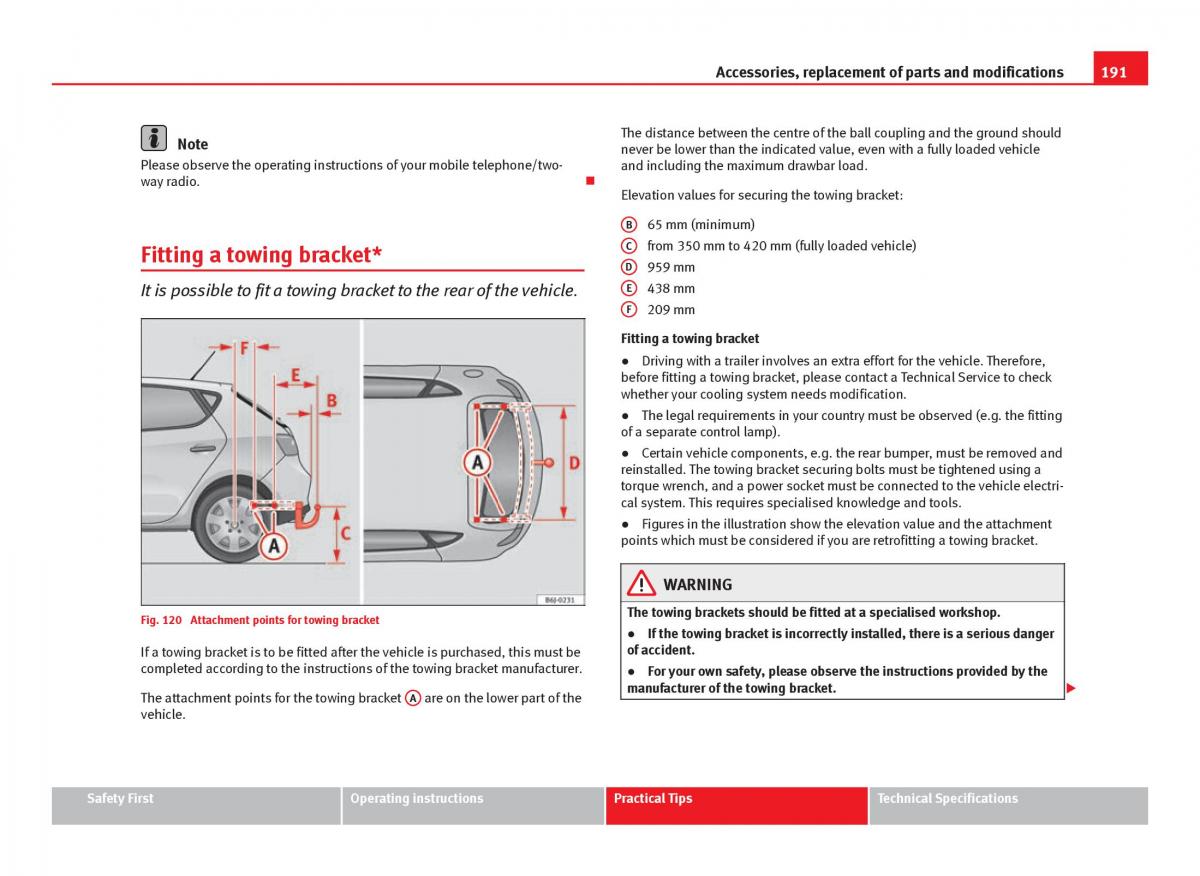

Fig. 120 Attachment points for towing bracket
● If the towing bracket is incorrectly installed, there is a serious danger
of accident.
If a towing bracket is to be fitted after the vehicle is purchased, this must be
completed according to the instructions of the towing bracket manufacturer.
● For your own safety, please observe the instructions provided by the
manufacturer of the towing bracket.
The attachment points for the towing bracket A are on the lower part of the
vehicle.
