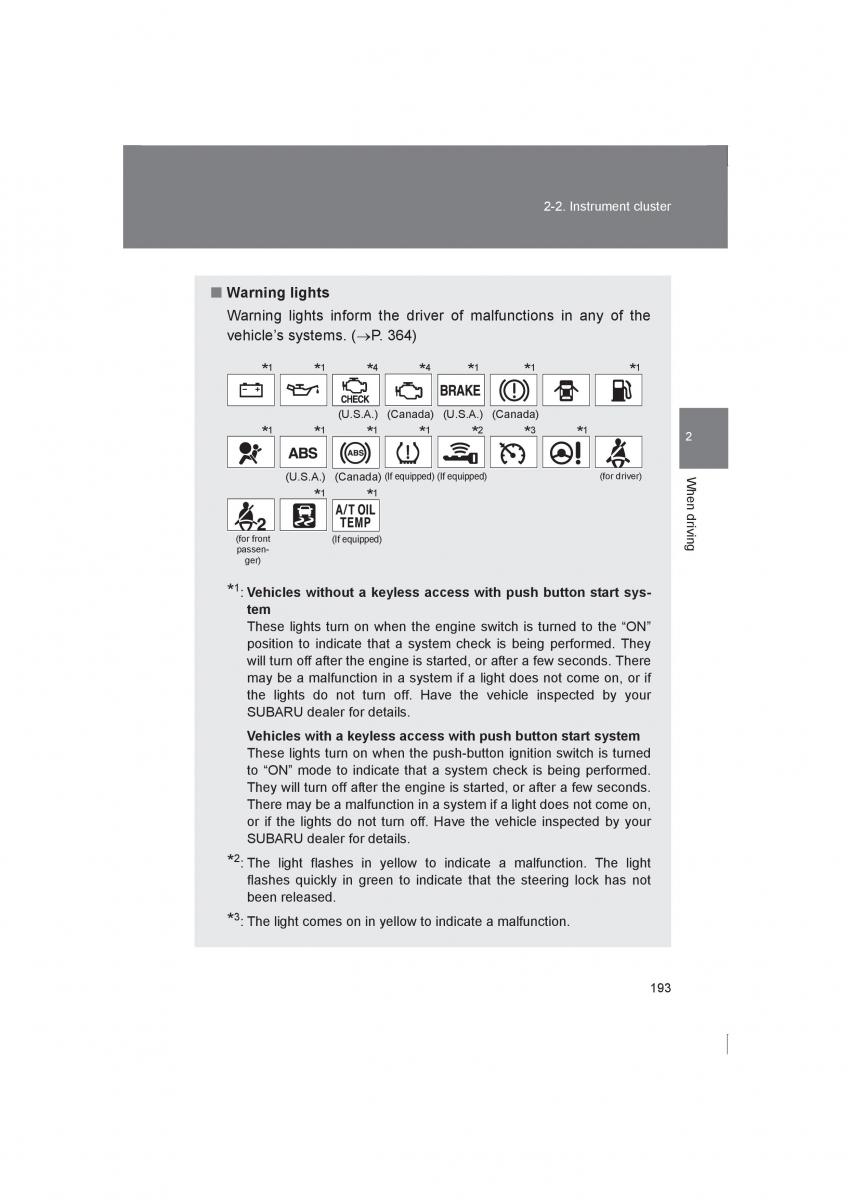

2-2. Instrument cluster
■Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (→P. 364)
*1 *1 *4 *4 *1 *1 *1
(U.S.A.) (Canada) (U.S.A.) (Canada)
1 1 1 1 2 3 1
* * * * * * * 2
(U.S.A.) (Canada)(If equipped) (If equipped) (for driver)Wh
*1 *1 en driv
(for front (If equipped) in
passen- g
ger)
1
* : Vehicles without a keyless access with push button start sys-
tem
These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your
SUBARU dealer for details.
Vehicles with a keyless access with push button start system
These lights turn on when the push-button ignition switch is turned
to “ON” mode to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by your
SUBARU dealer for details.
2
* : The light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
3
* : The light comes on in yellow to indicate a malfunction.
193
