VW Jetta VI 6 owners manual page 193

text version of content this owner's manual page from owners manual to the vehicle VW Jetta, year of production 2010:

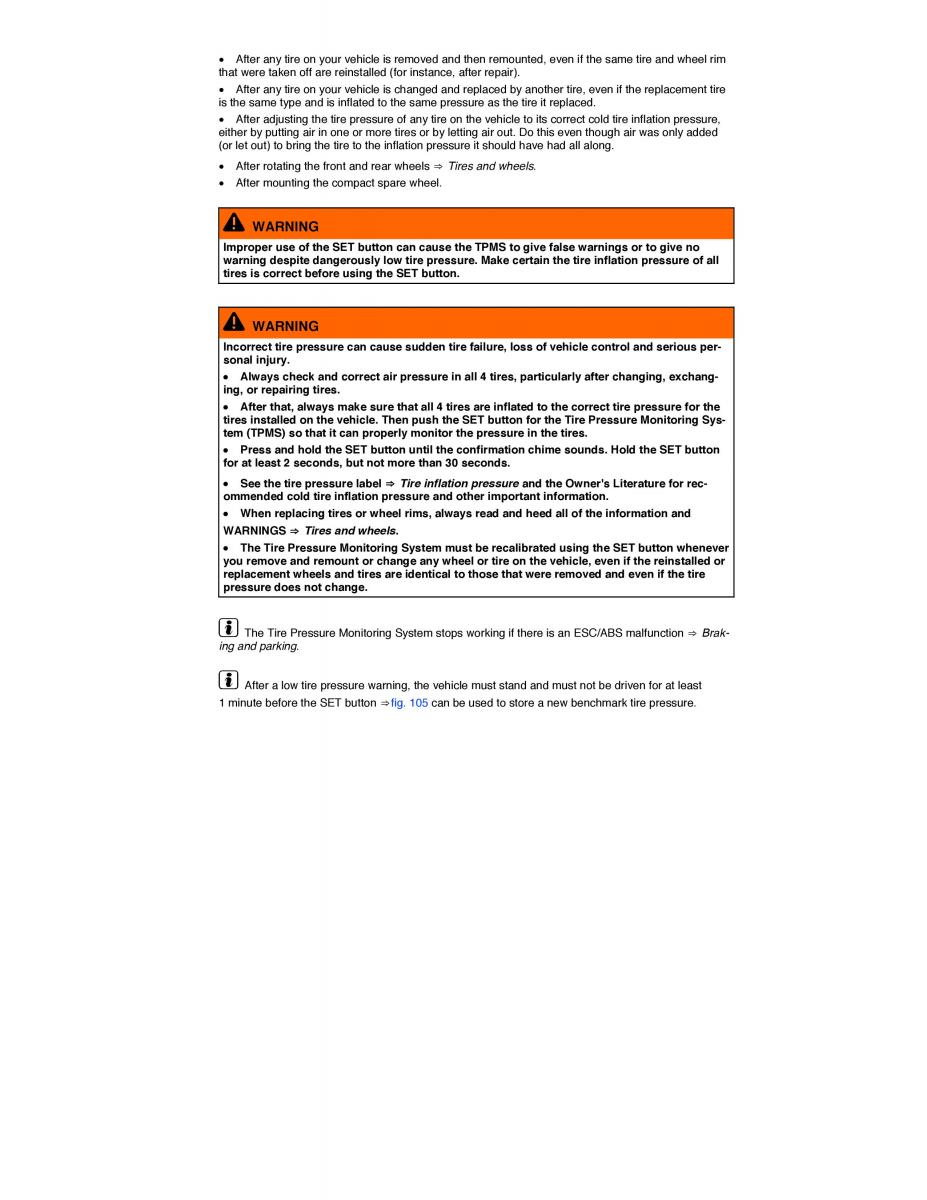

x After any tire on your vehicle is removed and then remounted, even if the same tire and wheel rim that were taken off are reinstalled (for instance, after repair). x After any tire on your vehicle is changed and replaced by another tire, even if the replacement tire is the same type and is inflated to the same pressure as the tire it replaced. x After adjusting the tire pressure of any tire on the vehicle to its correct cold tire inflatio pnressure, either by putting air in one or more tires or by letting air out. Do this even though air was only added (or let out) to bring the tire to the inflation pressure it should have had all along. x After rotating the front and rear wheel⇒ s Tires and wheels. x After mounting the compact spare wheel. WARNING Improper use of the SET button can cause the TPMS to give false warnings or to give no warning despite dangerously low tire pressure. Make certain the tire inflation pressure of all tires is correct before using the SET button. WARNING Incorrect tire pressure can cause sudden tire failure, loss of vehicle control and serious per- sonal injury. x Always check and correct air pressure in all 4 tires, particularly after changing, exchng-a ing, or repairing tires. x After that, always make sure that all 4 tires are inflated to the correct tire pressure for the tires installed on the vehicle. Then push the SET button for the Tire Pressure Monitoring Sys- tem (TPMS) so that it can properly monitor the pressure in the tires. x Press and hold the SET button until the confirmation chime sounds. Hold the SET button for at least 2 seconds, but not more than 30 seconds. x See the tire pressure labe⇒l Tire inflation pressure and the Owner's Literature for rec- ommended cold tire inflation pressure and other important information. x When replacing tires or wheel rims, always read and heed all of the information and WARNINGS ⇒ Tires and wheels. x The Tire Pressure Monitoring System must be recalibrated using the SET button whenever you remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change. The Tire Pressure Monitoring System stops working if there is an ESC/ABS malfunction ⇒ Brak- ing and parking. After a low tire pressure warning, the vehicle must stand and must not be driven for at least 1 minute before the SET button ⇒ fig. 105 can be used to store a new benchmark tire pressure.
