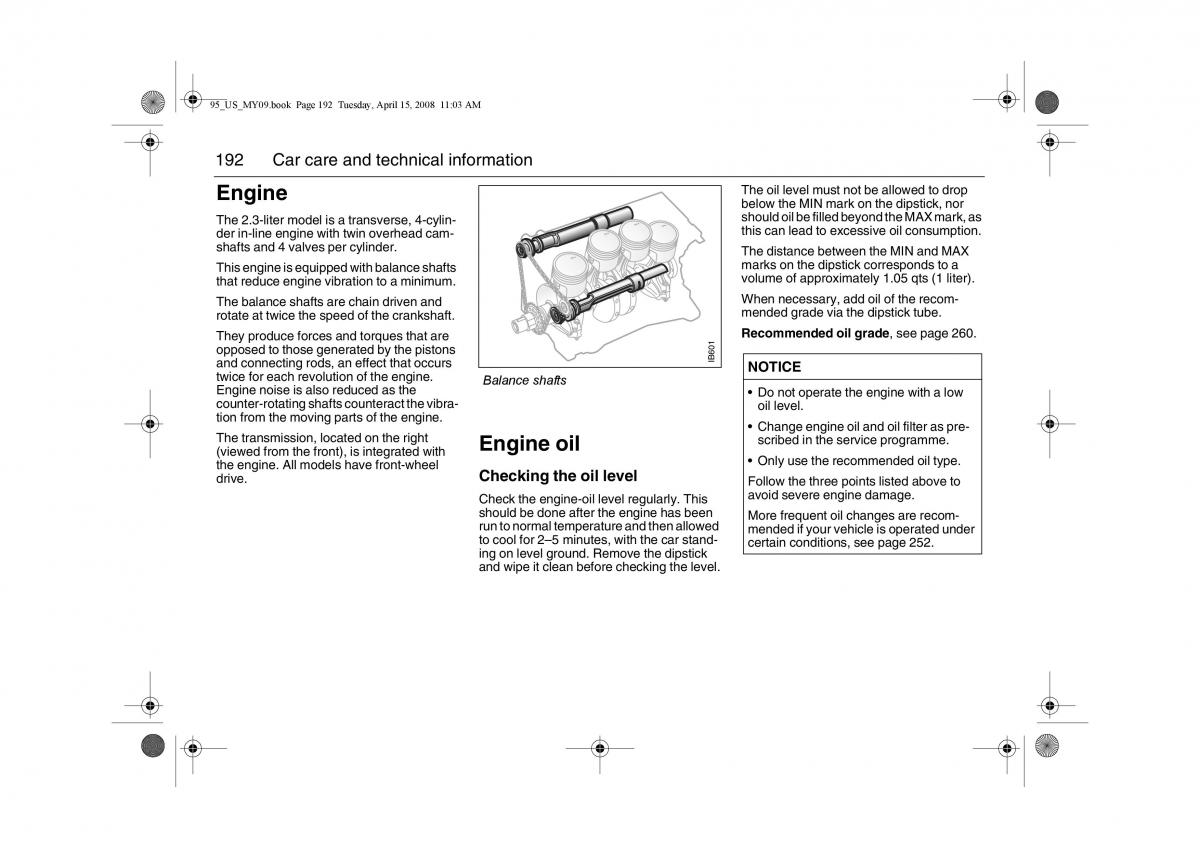

95_US_MY09.book Page 192 Tuesday, April 15, 2008 11:03 AM
192 Car care and technical information
Engine The oil level must not be allowed to drop
below the MIN mark on the dipstick, nor
The 2.3-liter model is a transverse, 4-cylin- should oil be filled beyond the MAX mark, as
der in-line engine with twin overhead cam- this can lead to exce ssive oil consumption.
shafts and 4 valves per cylinder. The distance between the MIN and MAX
This engine is equipped with balance shafts marks on the dipstick corresponds to a
that reduce engine vibration to a minimum. volume of approximately 1.05 qts (1 liter).
The balance shafts are chain driven and When necessary, add oil of the recom-
rotate at twice the speed of the crankshaft. mended grade via the dipstick tube.
They produce forces and torques that are Recommended oil grade, see page 260.
opposed to those generated by the pistons
and connecting rods, an effect that occurs IB601 NOTICE
twice for each revolution of the engine. Balance shafts
Engine noise is also reduced as the • Do not operate the engine with a low
counter-rotating shafts counteract the vibra- oil level.
tion from the moving parts of the engine. • Change engine oil and oil filter as pre-
The transmission, located on the right Engine oil scribed in the service programme.
(viewed from the front), is integrated with • Only use the recommended oil type.
the engine. All models have front-wheel Checking the oil level
drive. Follow the three points listed above to
Check the engine-oil level regularly. This avoid severe engine damage.
should be done after the engine has been More frequent oil changes are recom-
run to normal temperature and then allowed mended if your vehicle is operated under
to cool for 2–5 minutes, with the car stand-certain conditions, see page 252.
ing on level ground. Remove the dipstick
and wipe it clean before checking the level.
