owners manual VW CC

owners manual VW CC - year of production: 2012 - VW CC owners manual EN

Document: pdf (6.78 MB) 429 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW CC, year of production 2012:

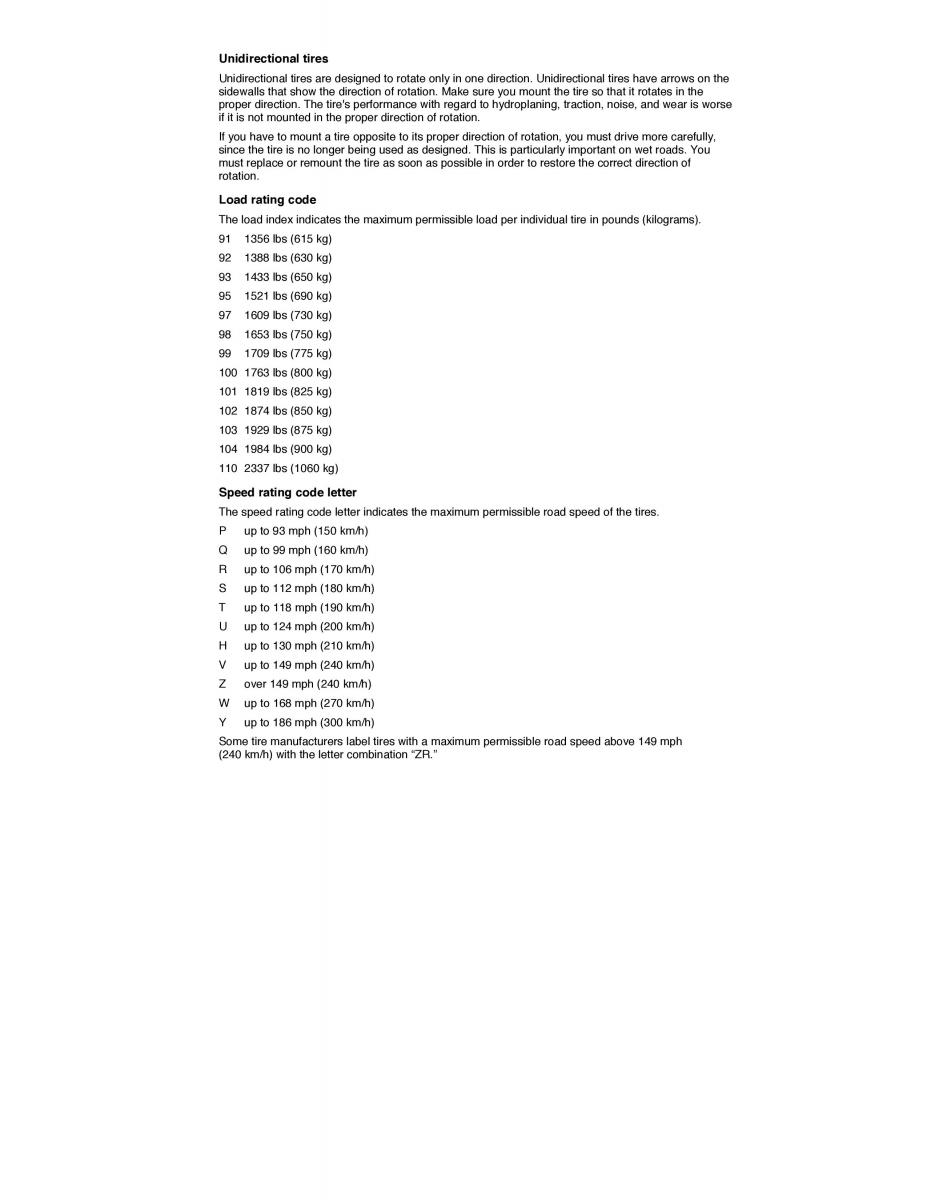

Unidirectional tires Unidirectional tires are designed to rotate only in one direction. Unidirectional tires have arrows on the sidewalls that show the direction of rotation. Make sure you mount the tire so that it rotates in the proper direction. The tire's performance with regard to hydroplaning, traction, noise, and wear is worse if it is not mounted in the proper direction of rotation. If you have to mount a tire opposite to its proper direction of rotation, you must drive more carefully, since the tire is no longer being used as designed. This is particularly important on wet roads. You must replace or remount the tire as soon as possible in order to restore the correct direction of rotation. Load rating code The load index indicates the maximum permissible load per individual tire in pounds (kilograms). 91 1356 lbs (615 kg) 92 1388 lbs (630 kg) 93 1433 lbs (650 kg) 95 1521 lbs (690 kg) 97 1609 lbs (730 kg) 98 1653 lbs (750 kg) 99 1709 lbs (775 kg) 100 1763 lbs (800 kg) 101 1819 lbs (825 kg) 102 1874 lbs (850 kg) 103 1929 lbs (875 kg) 104 1984 lbs (900 kg) 110 2337 lbs (1060 kg) Speed rating code letter The speed rating code letter indicates the maximum permissible road speed of the tires. P up to 93 mph (150 km/h) Q up to 99 mph (160 km/h) R up to 106 mph (170 km/h) S up to 112 mph (180 km/h) T up to 118 mph (190 km/h) U up to 124 mph (200 km/h) H up to 130 mph (210 km/h) V up to 149 mph (240 km/h) Z over 149 mph (240 km/h) W up to 168 mph (270 km/h) Y up to 186 mph (300 km/h) Some tire manufacturers label tires with a maximum permissible road speed above 149 mph (240 km/h) with the letter combination “ZR.”
