text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 156 GTA, year of production 1997 - 2006:

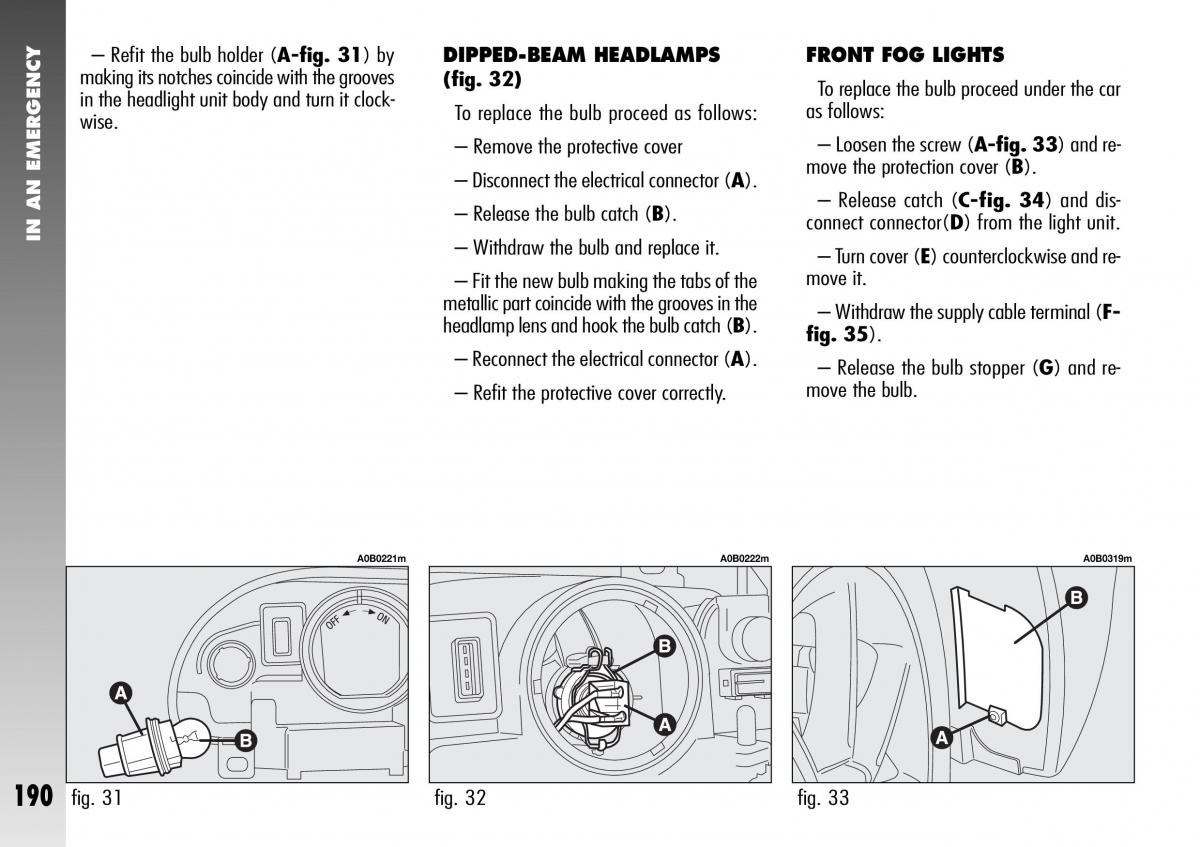

– Refit the bulb holder (A-fig. 31) by DIPPED-BEAM HEADLAMPS FRONT FOG LIGHTS making its notches coincide with the grooves (fig. 32) To replace the bulb proceed under the car in the headlight unit body and turn it clock- as follows: wise. To replace the bulb proceed as follows: – Remove the protective cover – Loosen the screw (A-fig. 33 ) and re- – Disconnect the electrical connector (A). move the protection cover (B). – Release the bulb catch (B). – Release catch (C-fig. 34) and dis- connect connector(D) from the light unit. IN AN EMERGENCY – Withdraw the bulb and replace it. – Turn cover ( E) counterclockwise and re- – Fit the new bulb making the tabs of the move it. metallic part coincide with the grooves in the – Withdraw the supply cable terminal (F- headlamp lens and hook the bulb catch (B). fig. 35). – Reconnect the electrical connector (A). – Release the bulb stopper (G) and re- – Refit the protective cover correctly. move the bulb. A0B0221m A0B0222m A0B0319m 190 fig. 31 fig. 32 fig. 33
