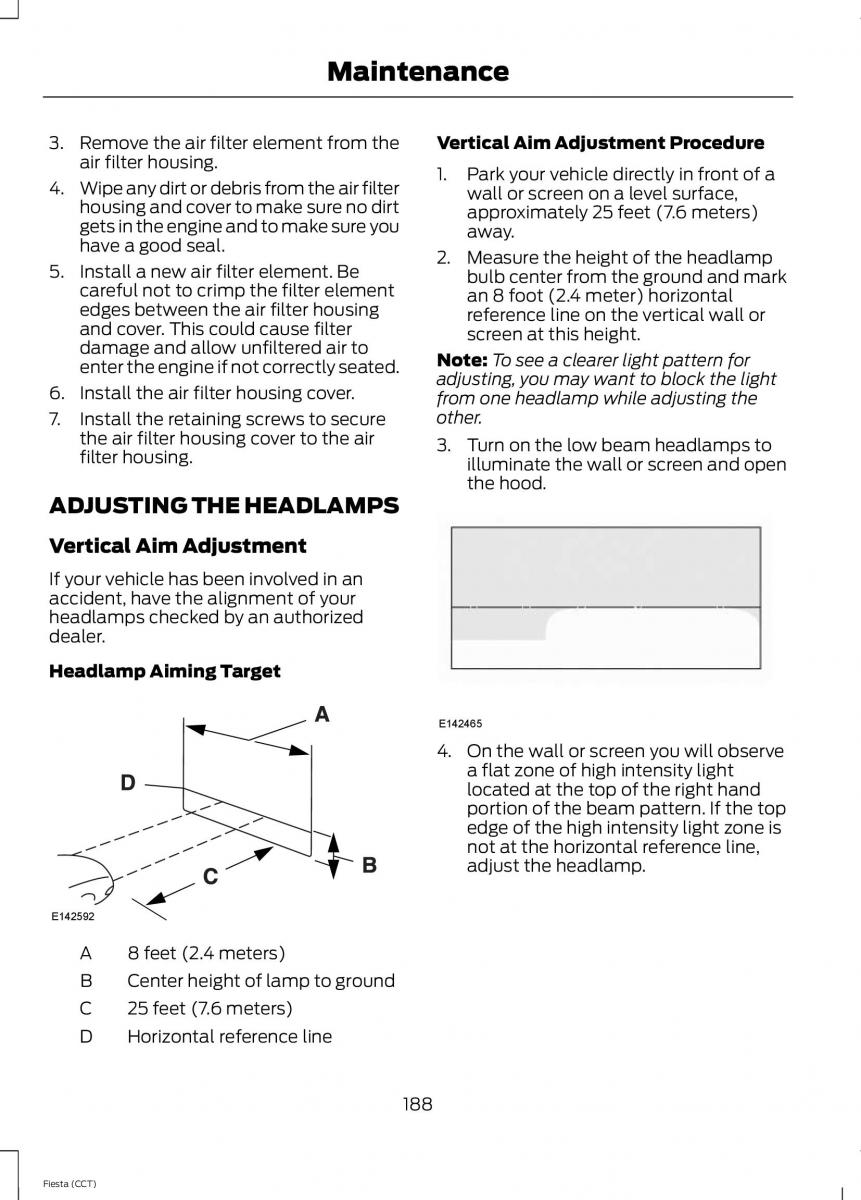

Maintenance 3. Remove the air filter element from the Vertical Aim Adjustment Procedure air filter housing. 1. Park your vehicle directly in front of a 4. Wipe any dirt or debris from the air filter wall or screen on a level surface, housing and cover to make sure no dirt approximately 25 feet (7.6 meters) gets in the engine and to make sure you away. have a good seal. 2. Measure the height of the headlamp 5. Install a new air filter element. Be bulb center from the ground and mark careful not to crimp the filter element an 8 foot (2.4 meter) horizontal edges between the air filter housing reference line on the vertical wall or and cover. This could cause filter screen at this height. damage and allow unfiltered air to Note:To see a clearer light pattern for enter the engine if not correctly seated. adjusting, you may want to block the light 6. Install the air filter housing cover. from one headlamp while adjusting the 7. Install the retaining screws to secure other. the air filter housing cover to the air 3. Turn on the low beam headlamps to filter housing. illuminate the wall or screen and open ADJUSTING THE HEADLAMPS the hood. Vertical Aim Adjustment If your vehicle has been involved in an accident, have the alignment of your headlamps checked by an authorized dealer. Headlamp Aiming Target E142465 4. On the wall or screen you will observe a flat zone of high intensity light located at the top of the right hand portion of the beam pattern. If the top edge of the high intensity light zone is not at the horizontal reference line, adjust the headlamp. E142592 A 8 feet (2.4 meters) B Center height of lamp to ground C 25 feet (7.6 meters) D Horizontal reference line 188 Fiesta (CCT)
