owners manual Volvo XC60

all ratings: 0 average rating: 5

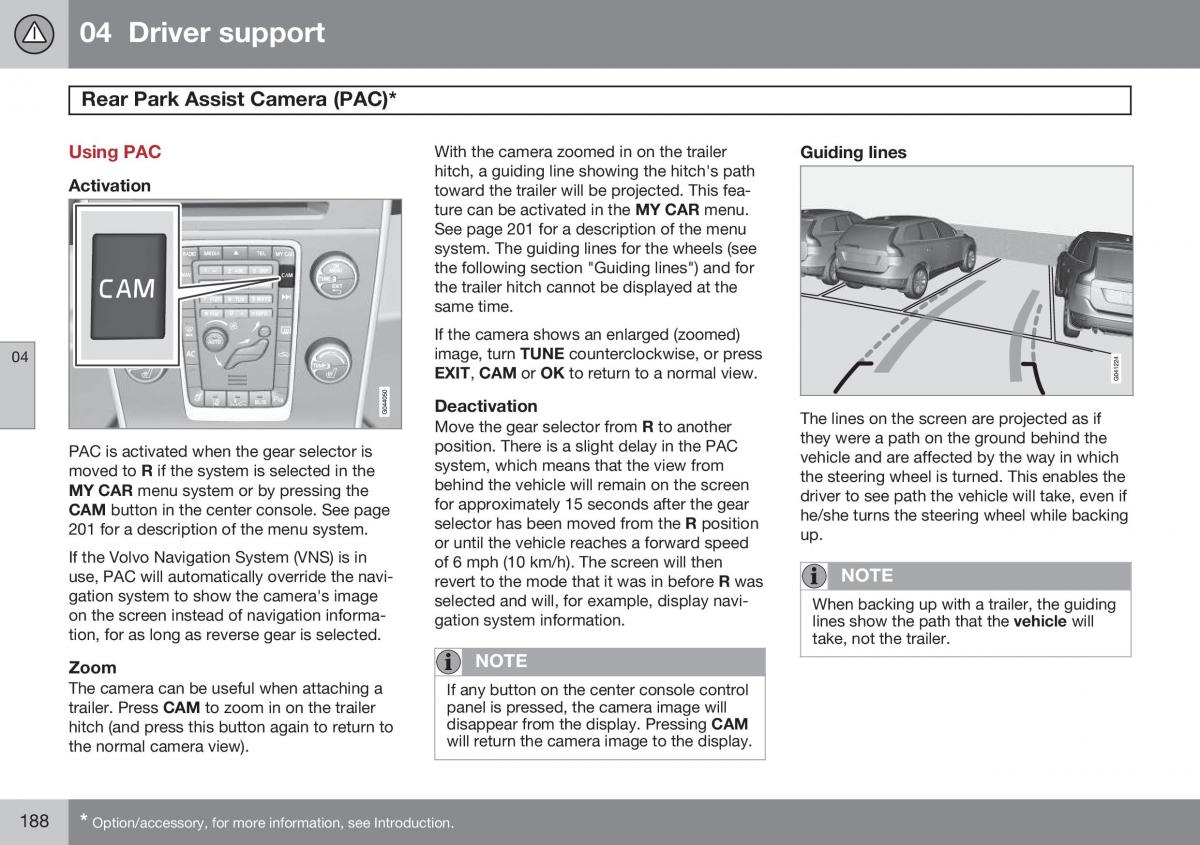

04 Driver support Rear Park Assist Camera (PAC)* Using PAC With the camera zoomed in on the trailerGuiding lines hitch, a guiding line showing the hitch's path Activation toward the trailer will be projected. This fea- ture can be activated in the MY CAR menu. See page 201 for a description of the menu system. The guiding lines for the wheels (see the following section "Guiding lines") and for the trailer hitch cannot be displayed at the same time. If the camera shows an enlarged (zoomed) image, turn TUNE counterclockwise, or press 04 EXIT, CAM or OK to return to a normal view. Deactivation The lines on the screen are projected as if Move the gear selector from R to another they were a path on the ground behind the position. There is a slight delay in the PAC PAC is activated when the gear selector is vehicle and are affected by the way in which system, which means that the view from moved to R if the system is selected in the the steering wheel is turned. This enables the behind the vehicle will remain on the screen MY CAR menu system or by pressing the driver to see path the vehicle will take, even if for approximately 15 seconds after the gear CAM button in the center console. See page he/she turns the steering wheel while backing selector has been moved from the R position 201 for a description of the menu system. up. or until the vehicle reaches a forward speed If the Volvo Navigation System (VNS) is in of 6 mph (10 km/h). The screen will then use, PAC will automatically override the navi- NOTE revert to the mode that it was in before R was gation system to show the camera's image selected and will, for example, display navi- When backing up with a trailer, the guiding on the screen instead of navigation informa- gation system information. lines show the path that the vehicle will tion, for as long as reverse gear is selected. take, not the trailer. NOTE Zoom The camera can be useful when attaching aIf any button on the center console control trailer. Press CAM to zoom in on the trailerpanel is pressed, the camera image will disappear from the display. Pressing CAM hitch (and press this button again to return to will return the camera image to the display. the normal camera view). 188 * Option/accessory, for more information, see Introduction.
