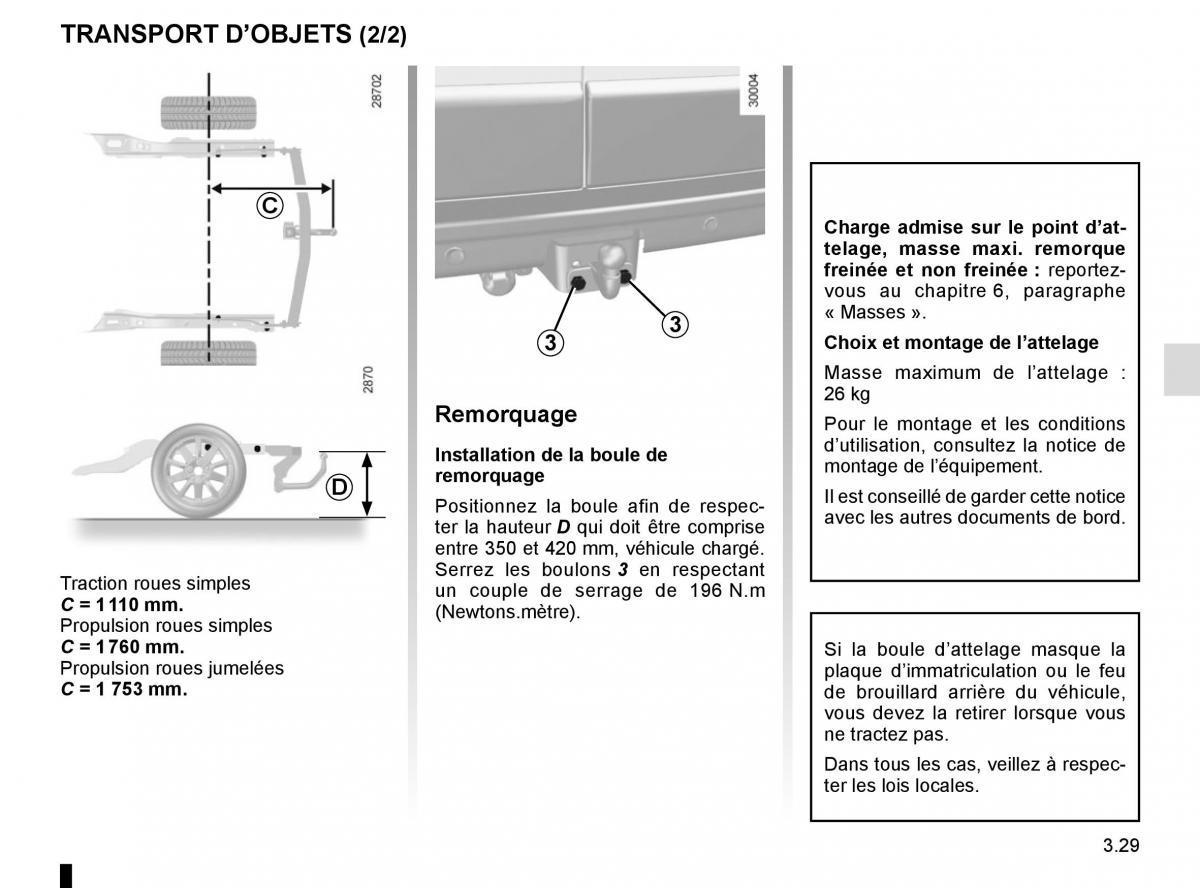

TRANSPORT D’OBJETS (2/2)
C
Charge admise sur le point d’at-
telage, masse maxi. remorque
freinée et non freinée reportez- :
vous au chapitre 6, paragraphe
3 « Masses ».
3 Choix et montage de l’attelage
Masse maximum de l’attelage :
Remorquage 26 kg
Pour le montage et les conditions
Installation de la boule de d’utilisation, consultez la notice de
D remorquage montage de l’équipement.
Il est conseillé de garder cette notice
Positionnez la boule afin de respec-
avec les autres documents de bord.
ter la hauteur D qui doit être comprise
entre 350 et 420 mm, véhicule chargé.
Traction roues simples Serrez les boulons 3 en respectant
C = 1 110 mm. un couple de serrage de 196 m N.
Propulsion roues simples (Newtons.mètre).
C = 1 760 mm. Si la boule d’attelage masque la
Propulsion roues jumelées plaque d’immatriculation ou le feu
C = 1 753 mm. de brouillard arrière du véhicule,
vous devez la retirer lorsque vous
ne tractez pas.
Dans tous les cas, veillez à respec-
ter les lois locales.
3.29
