text version of content this owner's manual page from owners manual to the vehicle Mercedes GLK, year of production 2008 - 2015:

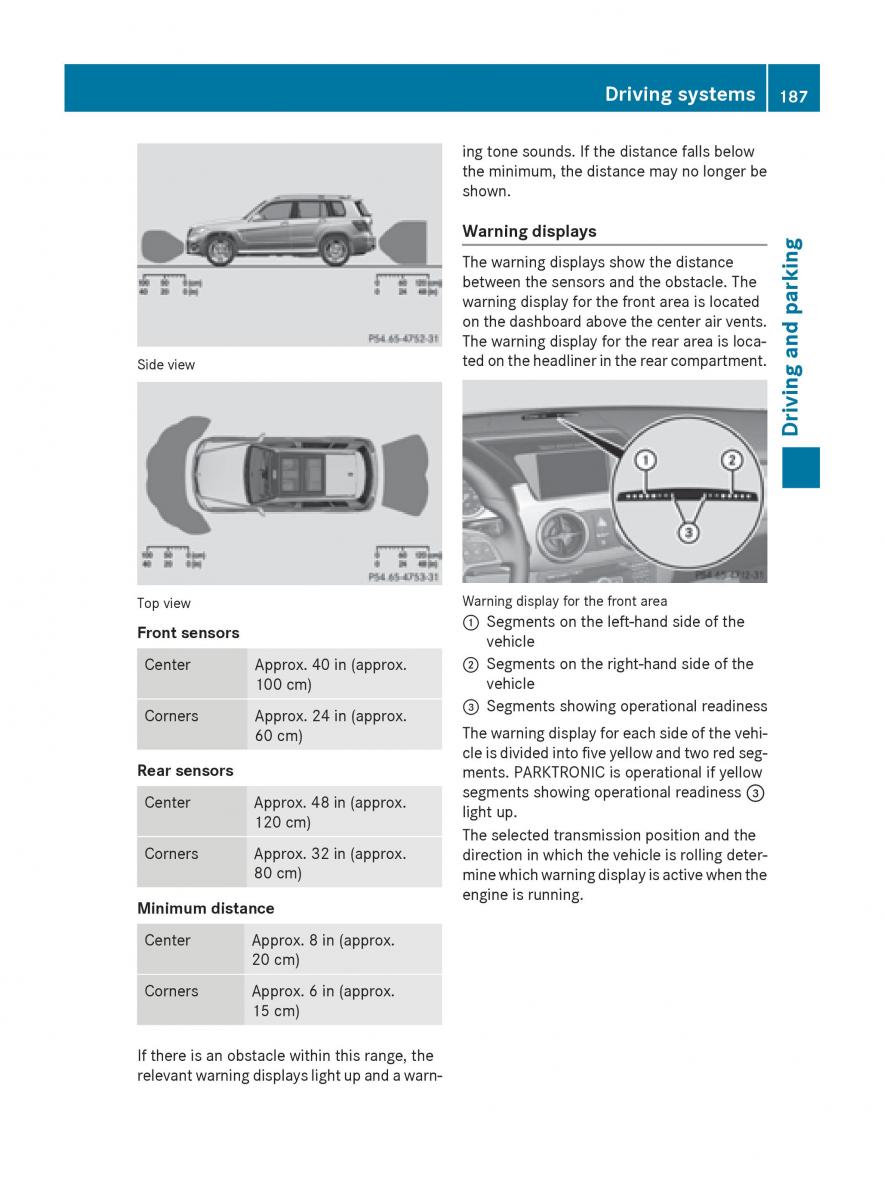

Driving systems 187
ing tone sounds. If the distance falls below
the minimum, the distance may no longer be
shown.
Warningdisplays
The warning displays show the distance
between the sensors and the obstacle. The
warning display for the front area is located
parking
onthedashboardabovethecenterairvents.
The warning display for the rear area is loca-
and
tedontheheadlinerintherearcompartment.
Side view
g
vin
Dri
Warning display for the front area
Top view
:Segmentsontheleft-handsideofthe
Front sensors
vehicle
Center Approx. 40 in (approx.;Segmentsontheright-handsideofthe
100cm) vehicle
=Segmentsshowingoperationalreadiness
Corners Approx. 24 in (approx.
Thewarningdisplayforeachsideofthevehi-
60cm)
cleisdividedintofiveyellowandtworedseg-
Rear sensors
ments. PARKTRONIC is operational if yellow
segments showing operational readiness =
Center Approx. 48 in (approx.
light up.
120cm)
The selected transmission position and the
Corners Approx. 32 in (approx.direction in which the vehicle is rolling deter-
80cm) minewhichwarningdisplayisactivewhenthe
engine is running.
Minimumdistance
Center Approx. 8 in (approx.
20cm)
Corners Approx. 6 in (approx.
15cm)
If there is an obstacle within this range, the
relevantwarningdisplayslightupandawarn-
Z
