from owners manual to the vehicle Mazda 6, year of production 2012:

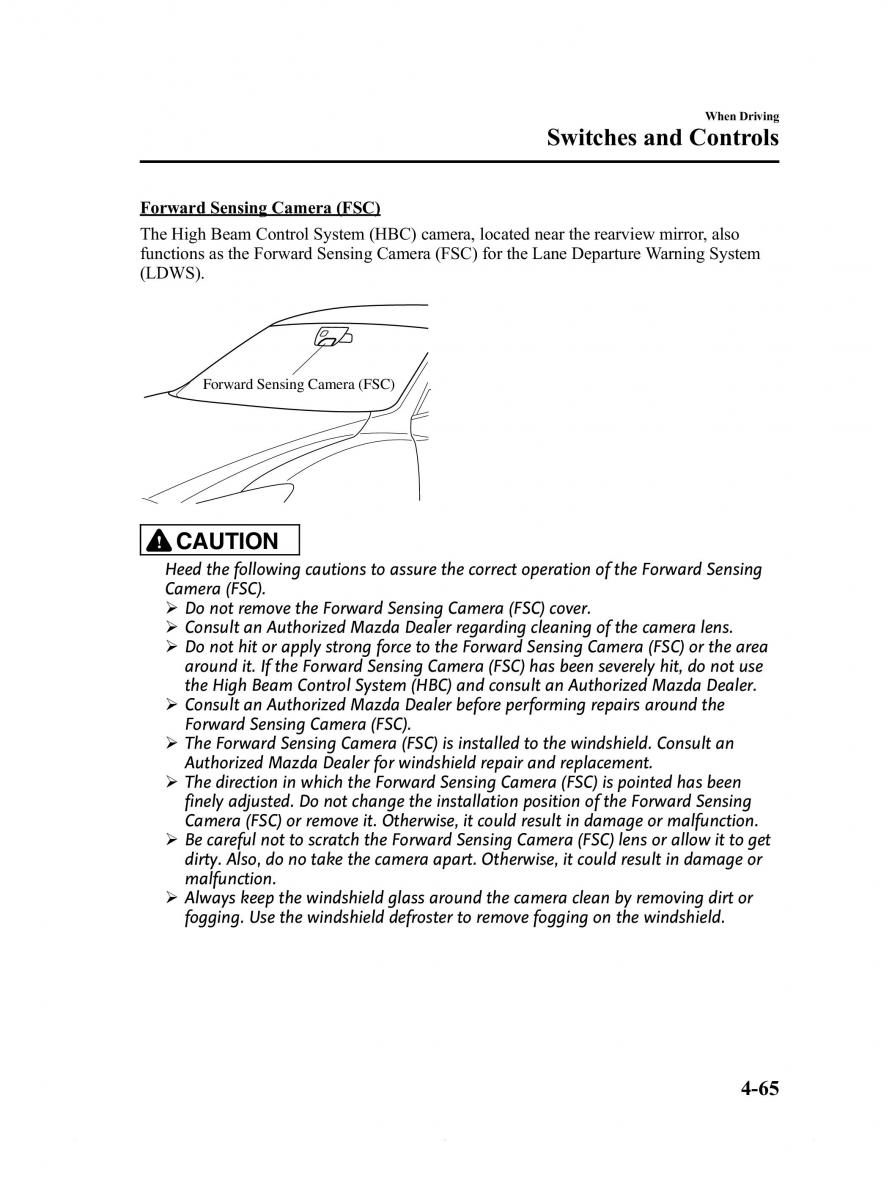

Mazda6_8DQ8-EA-13L_Edition3 Page189
Friday, June 13 2014 6:21 PM
Black plate (189,1)
WhenDriving
Switches and Controls
ForwardSensingCamera(FSC)
TheHighBeamControlSystem(HBC)camera,locatedneartherearviewmirror, also
functions as the Forward Sensing Camera (FSC) for the Lane Departure Warning System
(LDWS).
Forward Sensing Camera (FSC)
CAUTION
Heedthefollowing cautions to assure the correct operation of the Forward Sensing
Camera(FSC).
ØDonotremovetheForwardSensingCamera(FSC)cover.
ØConsultanAuthorized MazdaDealerregarding cleaning of the camera lens.
ØDonothitorapplystrongforcetotheForwardSensingCamera(FSC)orthearea
aroundit. If the Forward Sensing Camera (FSC) has been severely hit, do not use
the High Beam Control System (HBC) and consult an Authorized Mazda Dealer.
ØConsultanAuthorized MazdaDealerbefore performing repairs around the
Forward Sensing Camera (FSC).
ØTheForwardSensingCamera(FSC)isinstalledto the windshield. Consult an
Authorized Mazda Dealer for windshield repair and replacement.
ØThedirection in which the Forward Sensing Camera (FSC) is pointed has been
finely adjusted. Do not change the installation position of the Forward Sensing
Camera(FSC) or remove it. Otherwise, it could result in damage or malfunction.
ØBecarefulnottoscratch the Forward Sensing Camera (FSC) lens or allow it to get
dirty. Also, do no take the camera apart. Otherwise, it could result in damage or
malfunction.
ØAlwayskeepthewindshieldglassaroundthecameracleanbyremovingdirtor
fogging. Use the windshield defroster to remove fogging on the windshield.
4-65
Form No.8DQ8-EA-13L
