text version of content this owner's manual page from owners manual to the vehicle Mazda 3, year of production 2013:

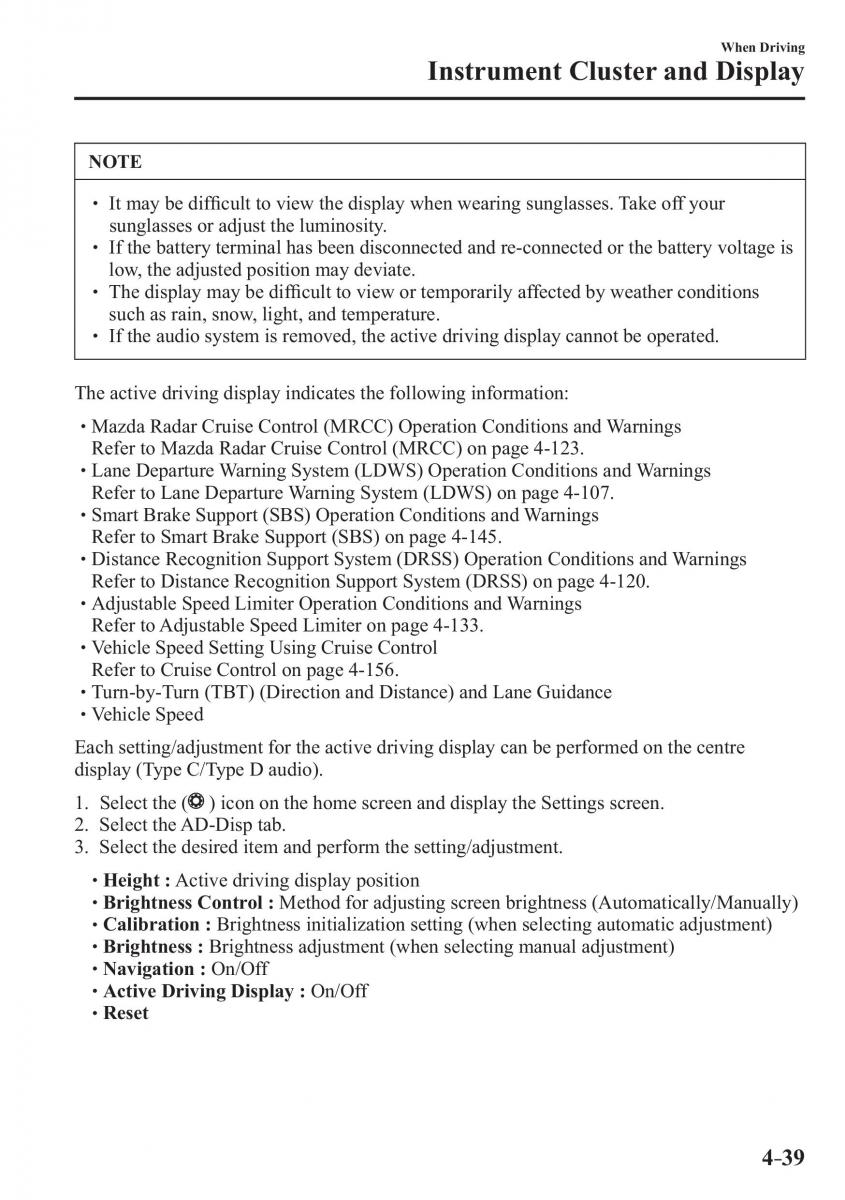

When Driving
Instrument Cluster and Display
NOTE
It may be diffi cult to view the display when wearing sunglasses. Take off your
sunglasses or adjust the luminosity.
If the battery terminal has been disconnected and re-connected or the battery voltage is
low, the adjusted position may deviate.
The display may be diffi cult to view or temporarily affected by weather conditions
such as rain, snow, light, and temperature.
If the audio system is removed, the active driving display cannot be operated.
The active driving display indicates the following information:
Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
Refer to Mazda Radar Cruise Control (MRCC) on page 4-123 .
Lane Departure Warning System (LDWS) Operation Conditions and Warnings
Refer to Lane Departure Warning System (LDWS) on page 4-107 .
Smart Brake Support (SBS) Operation Conditions and Warnings
Refer to Smart Brake Support (SBS) on page 4-145 .
Distance Recognition Support System (DRSS) Operation Conditions and Warnings
Refer to Distance Recognition Support System (DRSS) on page 4-120 .
Adjustable Speed Limiter Operation Conditions and Warnings
Refer to Adjustable Speed Limiter on page 4-133 .
Vehicle Speed Setting Using Cruise Control
Refer to Cruise Control on page 4-156 .
Turn-by-Turn (TBT) (Direction and Distance) and Lane Guidance
Vehicle Speed
Each setting/adjustment for the active driving display can be performed on the centre
display (Type C/Type D audio).
Select the 1. ( ) icon on the home screen and display the Settings screen.
Select the 2. AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.
Height : Active driving display position
Brightness Control : Method for adjusting screen brightness (Automatically/Manually)
Calibration : Brightness initialization setting (when selecting automatic adjustment)
Brightness : Brightness adjustment (when selecting manual adjustment)
Navigation : On/Off
Active Driving Display : On/Off
Reset
4–39
