text version of content this owner's manual page from owners manual to the vehicle Mercedes CLA, year of production 2013:

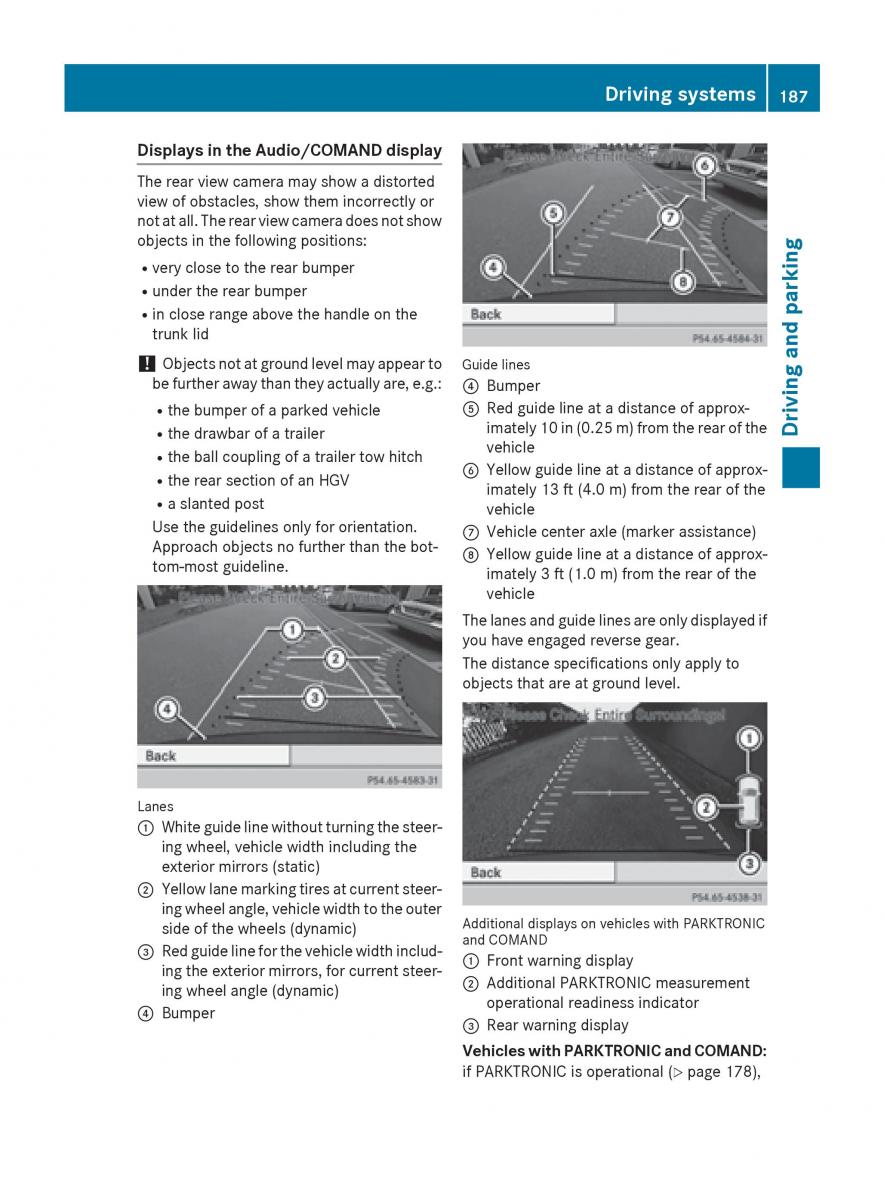

Driving systems 187 DisplaysintheAudio/COMANDdisplay The rear view camera may show a distorted view of obstacles, show them incorrectly or notatall.Therearviewcameradoesnotshow objects in the following positions: ng Rveryclose to the rear bumper Rundertherearbumper parki Rincloserangeabovethehandleonthe d trunk lid an !ObjectsnotatgroundlevelmayappeartoGuide lines befurtherawaythantheyactuallyare,e.g.: ng ?Bumper ARedguidelineatadistanceofapprox- ivi Rthebumperofaparkedvehicle imately10in(0.25m)fromtherearofthe Rthedrawbarofatrailer Dr vehicle Rtheball coupling of a trailer tow hitch BYellowguidelineatadistanceofapprox- Rtherearsection of an HGV imately 13 ft (4.0 m) from the rear of the Raslantedpost vehicle Usetheguidelines only for orientation. CVehiclecenteraxle(markerassistance) Approach objects no further than the bot- DYellowguidelineatadistanceofapprox- tom-most guideline. imately 3 ft (1.0 m) from the rear of the vehicle Thelanesandguidelinesareonlydisplayedif you have engaged reverse gear. The distance specifications only apply to objects that are at ground level. Lanes :Whiteguidelinewithoutturningthesteer- ing wheel, vehicle width including the exterior mirrors (static) ;Yellowlanemarkingtiresatcurrentsteer- ingwheelangle,vehiclewidthtotheouter Additional displays on vehicles with PARKTRONIC side of the wheels (dynamic) and COMAND =Redguidelineforthevehiclewidthinclud- :Frontwarningdisplay ing the exterior mirrors, for current steer- ;Additional PARKTRONICmeasurement ing wheel angle (dynamic) operational readiness indicator ?Bumper =Rearwarningdisplay VehicleswithPARKTRONICandCOMAND: if PARKTRONIC is operational (Y page 178), Z
