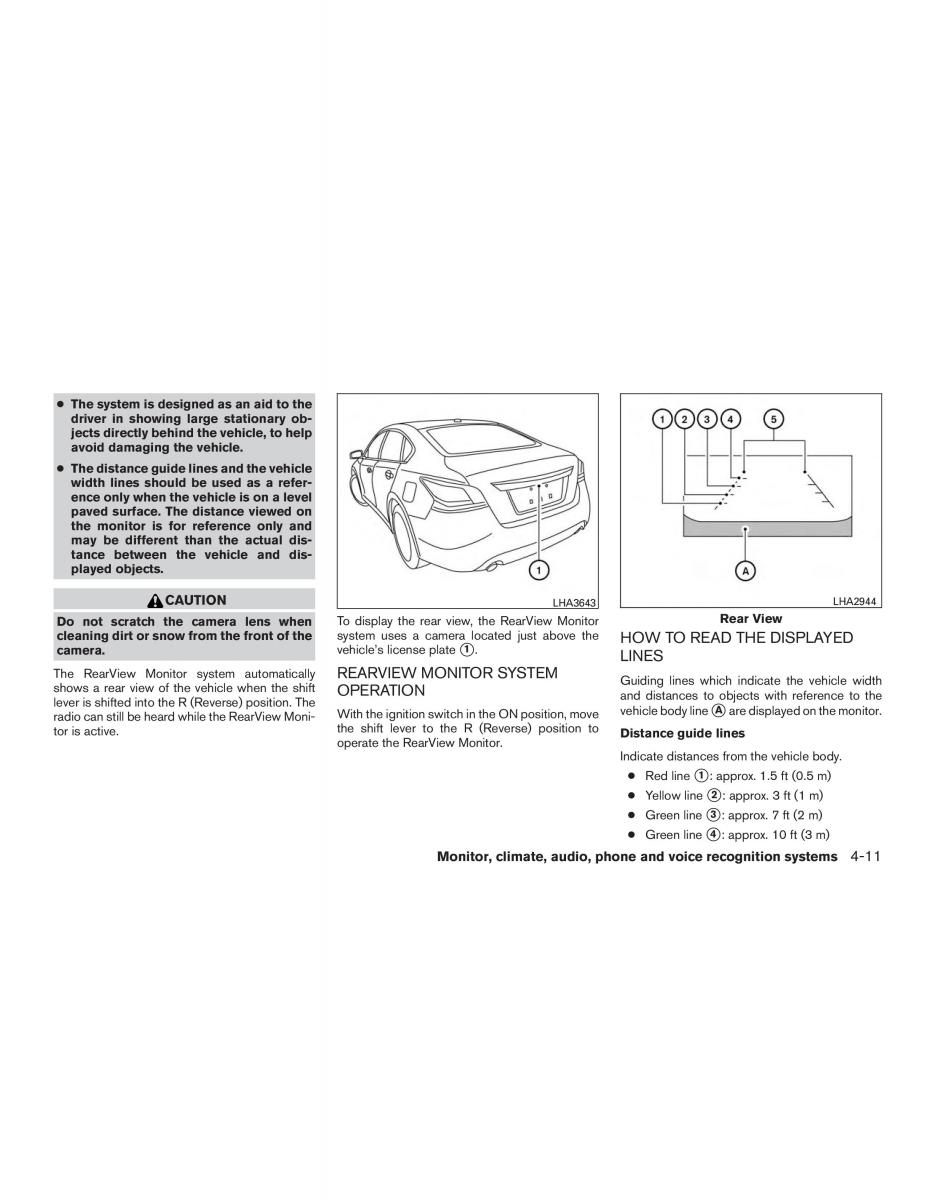

from owners manual to the vehicle Nissan Altima, year of production 2016:
● Thesystemisdesignedasanaidtothe
driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.
● Thedistanceguidelinesandthevehicle
width lines should be used as a refer-
enceonlywhenthevehicleisonalevel
paved surface. The distance viewed on
the monitor is for reference only and
may be different than the actual dis-
tance between the vehicle and dis-
played objects.
CAUTION LHA3643 LHA2944
Do not scratch the camera lens whenTo display the rear view, the RearView MonitorRear View
cleaning dirt or snow from the front of thesystem uses a camera located just above theHOWTOREADTHEDISPLAYED
camera. vehicle’s license plate 1 .
LINES
The RearView Monitor system automaticallyREARVIEWMONITORSYSTEM Guiding lines which indicate the vehicle width
shows a rear view of the vehicle when the shiftOPERATION and distances to objects with reference to the
lever is shifted into the R (Reverse) position. The vehiclebodyline A aredisplayedonthemonitor.
radio can still be heard while the RearView Moni-WiththeignitionswitchintheONposition,move
tor is active. the shift lever to the R (Reverse) position toDistance guide lines
operate the RearView Monitor.
Indicate distances from the vehicle body.
● Redline 1 : approx. 1.5 ft (0.5 m)
● Yellow line 2 : approx. 3 ft (1 m)
● Greenline 3 : approx. 7 ft (2 m)
● Greenline 4 : approx. 10 ft (3 m)
Monitor, climate, audio, phone and voice recognition systems 4-11
