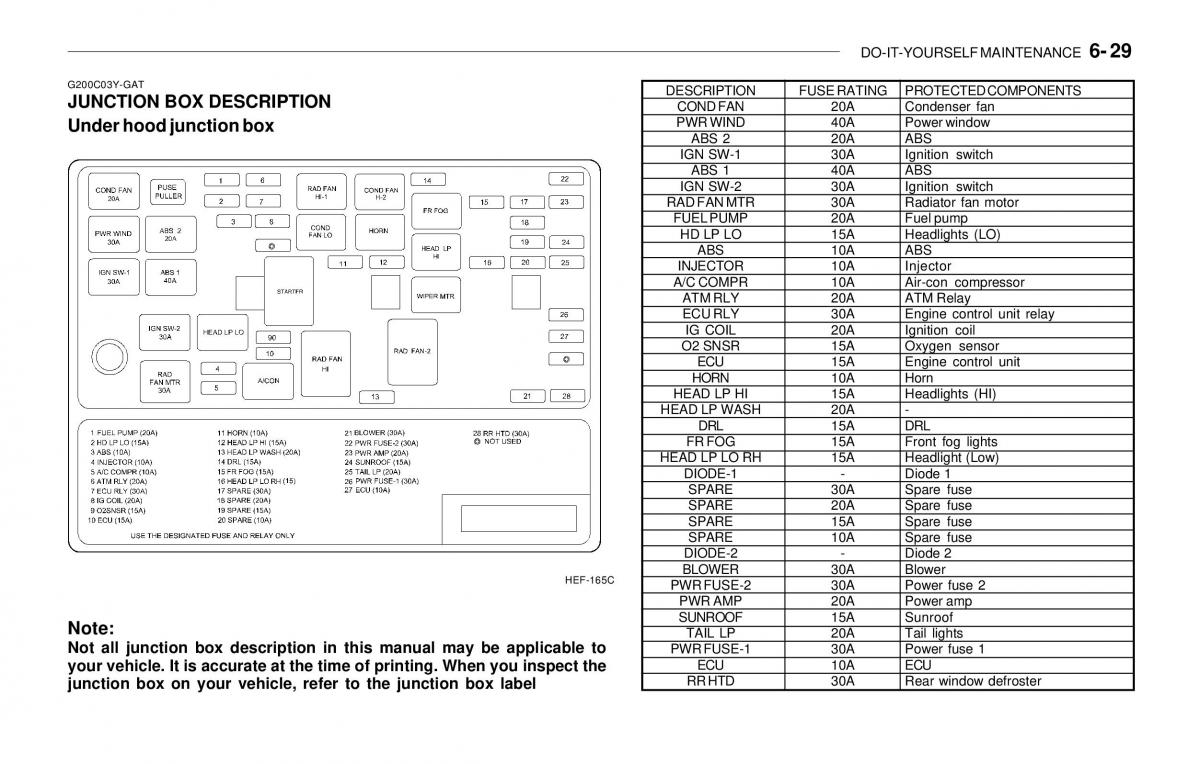

DO-IT-YOURSELF MAINTENANCE 6- 29 G200C03Y-GAT DESCRIPTION FUSE RATING PROTECTED COMPONENTS JUNCTION BOX DESCRIPTION COND FAN 20A Condenser fan Under hood junction box PWR WIND 40A Power window ABS 2 20A ABS IGN SW-1 30A Ignition switch ABS 1 40A ABS IGN SW-2 30A Ignition switch RAD FAN MTR 30A Radiator fan motor FUEL PUMP 20A Fuel pump HD LP LO 15A Headlights (LO) ABS 10A ABS INJECTOR 10A Injector A/C COMPR 10A Air-con compressor ATM RLY 20A ATM Relay ECU RLY 30A Engine control unit relay IG COIL 20A Ignition coil O2 SNSR 15A Oxygen sensor ECU 15A Engine control unit HORN 10A Horn HEAD LP HI 15A Headlights (HI) HEAD LP WASH 20A - DRL 15A DRL FR FOG 15A Front fog lights HEAD LP LO RH 15A Headlight (Low) DIODE-1 - Diode 1 SPARE 30A Spare fuse SPARE 20A Spare fuse SPARE 15A Spare fuse SPARE 10A Spare fuse DIODE-2 - Diode 2 HEF-165C BLOWER 30A Blower PWR FUSE-2 30A Power fuse 2 PWR AMP 20A Power amp Note: SUNROOF 15A Sunroof TAIL LP 20A Tail lights Not all junction box description in this manual may be applicable to PWR FUSE-1 30A Power fuse 1 your vehicle. It is accurate at the time of printing. When you inspect the ECU 10A ECU RR HTD 30A Rear window defroster junction box on your vehicle, refer to the junction box label
