text version of content this owner's manual page from owners manual to the vehicle Subaru Outback, year of production 2004 - 2009:

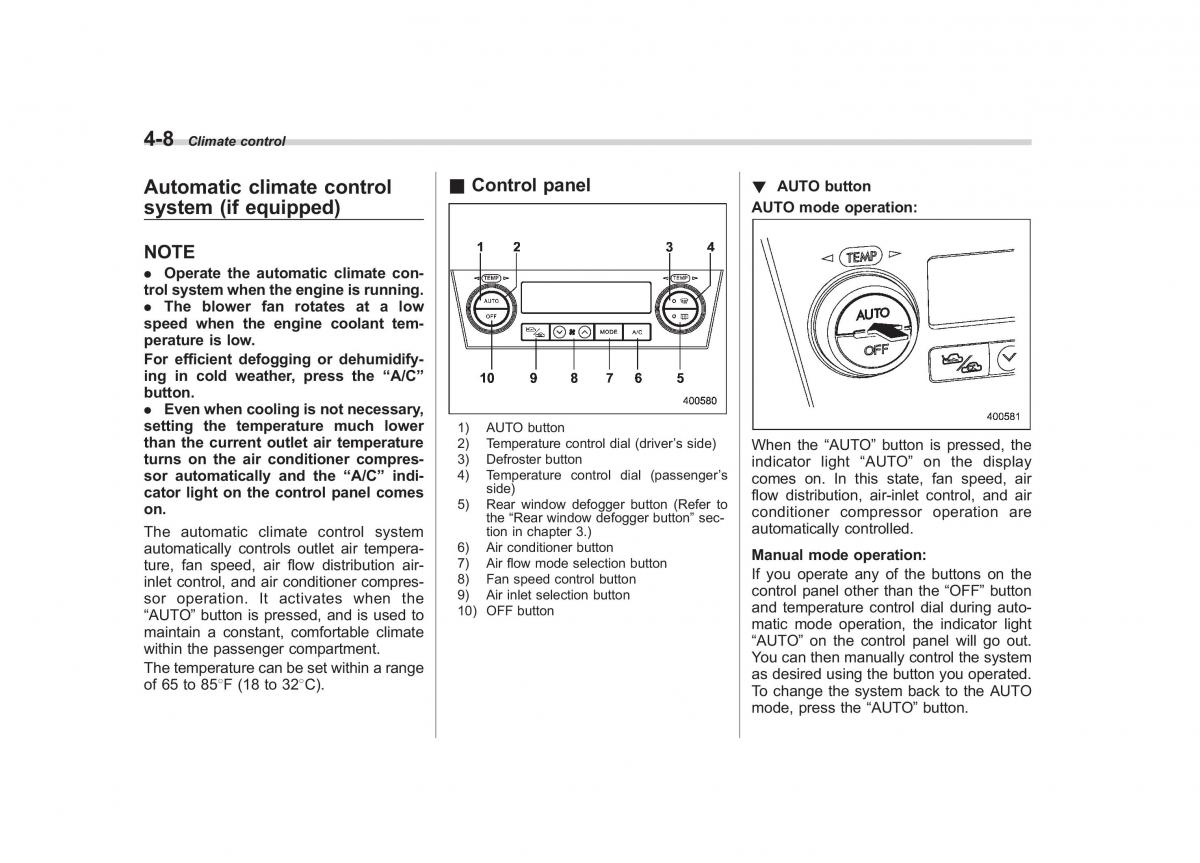

4-8 Climate control Automatic climate control &Control panel ! AUTObutton system (if equipped) AUTOmodeoperation: NOTE . Operate the automatic climate con- trol system when theengineisrunning. . The blower fan rotates at a low speed when the engine coolant tem- perature is low. For efficient defogging or dehumidify- ing in cold weather, press the “A/C” button. . Evenwhencoolingisnotnecessary, setting the temperature much lower1)AUTObutton than the current outlet air temperature2)Temperature control dial (driver’s side)When the “AUTO” button is pressed, the turns on the air conditioner compres-3)Defroster button indicator light “AUTO” on the display sor automatically and the “A/C” indi-4)Temperature control dial (passenger’scomes on. In this state, fan speed, air cator light on the control panel comesside) flow distribution, air-inlet control, and air on. 5) Rear window defogger button (Refer toconditioner compressor operation are the “Rear window defogger button” sec- The automatic climate control systemtion in chapter 3.) automatically controlled. automatically controls outlet air tempera-6)Air conditioner buttonManual mode operation: ture, fan speed, air flow distribution air-7)Air flow mode selection button inlet control, and air conditioner compres-8)Fan speed control buttonIf you operate any of the buttons on the sor operation. It activates when the9)Air inlet selection buttoncontrol panel other than the “OFF” button “AUTO” button is pressed, and is used to10) OFF button and temperature control dial during auto- maintain a constant, comfortable climate matic mode operation, the indicator light within the passenger compartment. “AUTO” on the control panel will go out. Thetemperaturecanbesetwithinarange You can then manually control the system of 65 to 858F (18 to 328C). as desired using the button you operated. To change the system back to the AUTO mode, press the “AUTO” button.
