text version of content this owner's manual page from owners manual to the vehicle Mercedes G, year of production 1997 - 2005:

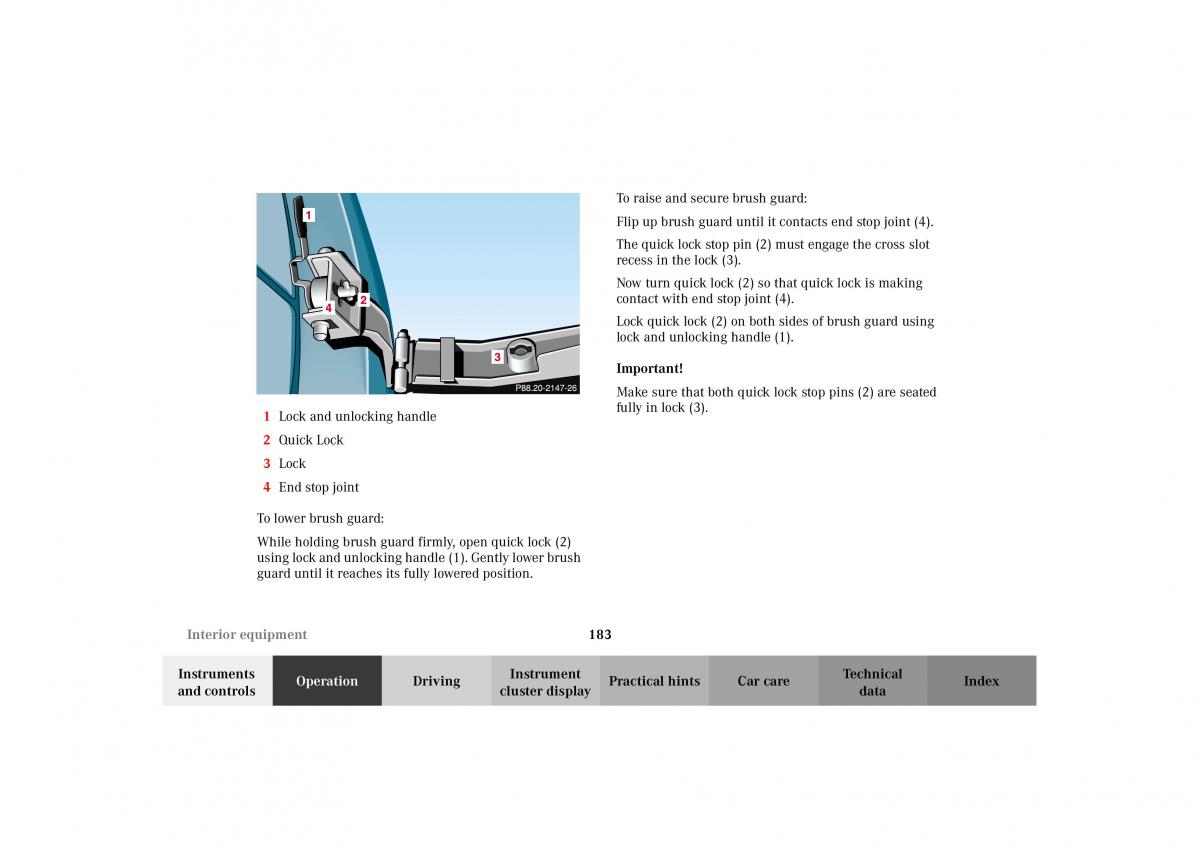

J_G463.book Seite 183 Mittwoch, 19. September 2001 8:06 08 To raise and secure brush guard: Flip up brush guard until it contacts end stop joint (4). The quick lock stop pin (2) must engage the cross slot recess in the lock (3). Now turn quick lock (2) so that quick lock is making contact with end stop joint (4). Lock quick lock (2) on both sides of brush guard using lock and unlocking handle (1). Important! Make sure that both quick lock stop pins (2) are seated 1 Lock and unlocking handle fully in lock (3). 2 Quick Lock 3 Lock 4 End stop joint To lower brush guard: While holding brush guard firmly, open quick lock (2) using lock and unlocking handle (1). Gently lower brush guard until it reaches its fully lowered position. Interior equipment 183 Instruments Operation Driving Instrument Practical hints Car care Technical Index and controls cluster display data
