text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo GT, year of production 2004 - 2010:

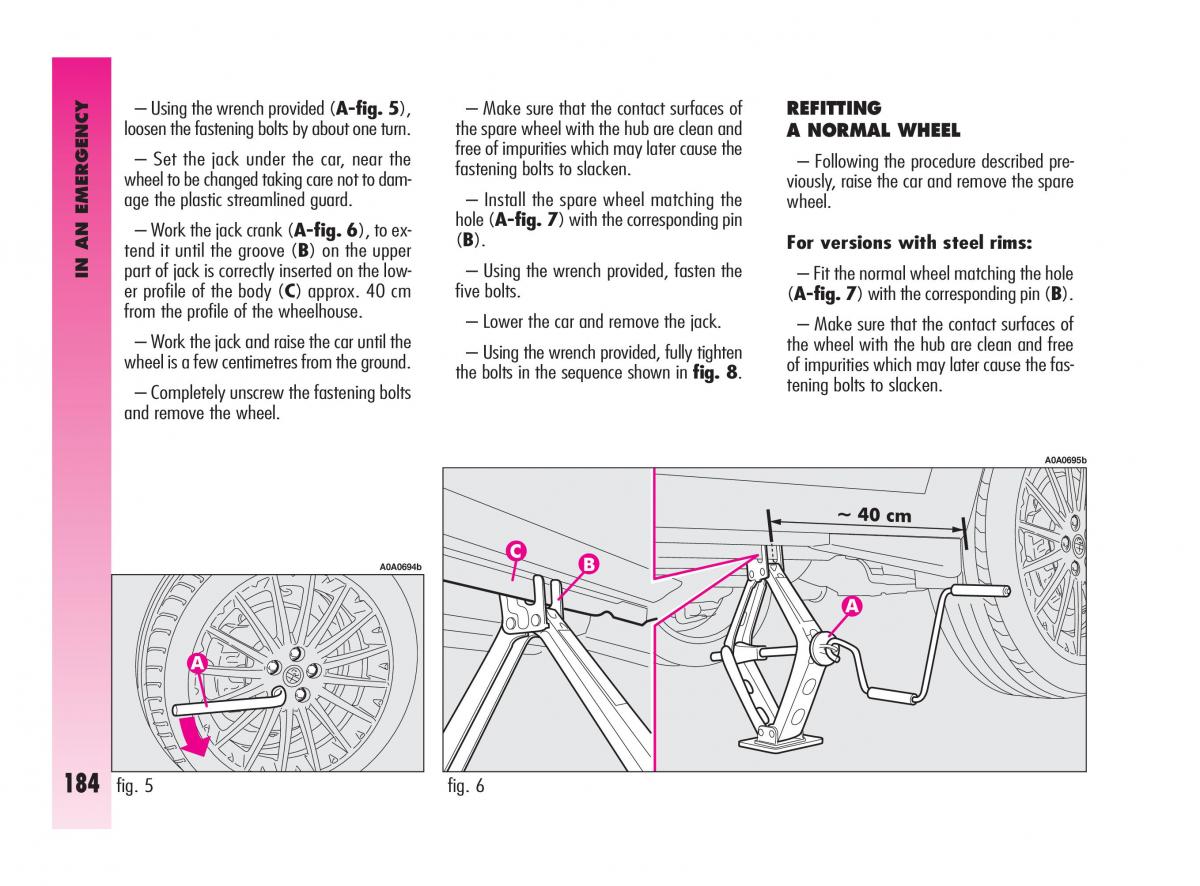

– Using the wrench provided (A-fig. 5 ), – Make sure that the contact surfaces of REFITTING n. loosen the fastening bolts by about one tur the spare wheel with the hub are clean and A NORMAL WHEEL free of impurities which may later cause the – Set the jack under the car, near the – Following the procedure described pre- wheel to be changed taking care not to dam- fastening bolts to slacken. viously, raise the car and remove the spare age the plastic streamlined guard. – Install the spare wheel matching the wheel. – Work the jack crank (A-fig. 6 ), to ex- hole ( A-fig. 7 ) with the corresponding pin tend it until the groove (B) on the upper (B). For versions with steel rims: part of jack is correctly inserted on the low- – Using the wrench provided, fasten the IN AN EMERGENCY – Fit the normal wheel matching the hole er profile of the body (C) approx. 40 cm five bolts. (A-fig. 7 ) with the corresponding pin (B). from the profile of the wheelhouse. – Lower the car and remove the jack. – Make sure that the contact surfaces of – Work the jack and raise the car until the – Using the wrench provided, fully tighten the wheel with the hub are clean and free wheel is a few centimetres from the ground. the bolts in the sequence shown in fig. 8 . of impurities which may later cause the fas- – Completely unscrew the fastening bolts tening bolts to slacken. and remove the wheel. A0A0695b A0A0694b 184 fig. 5 fig. 6
