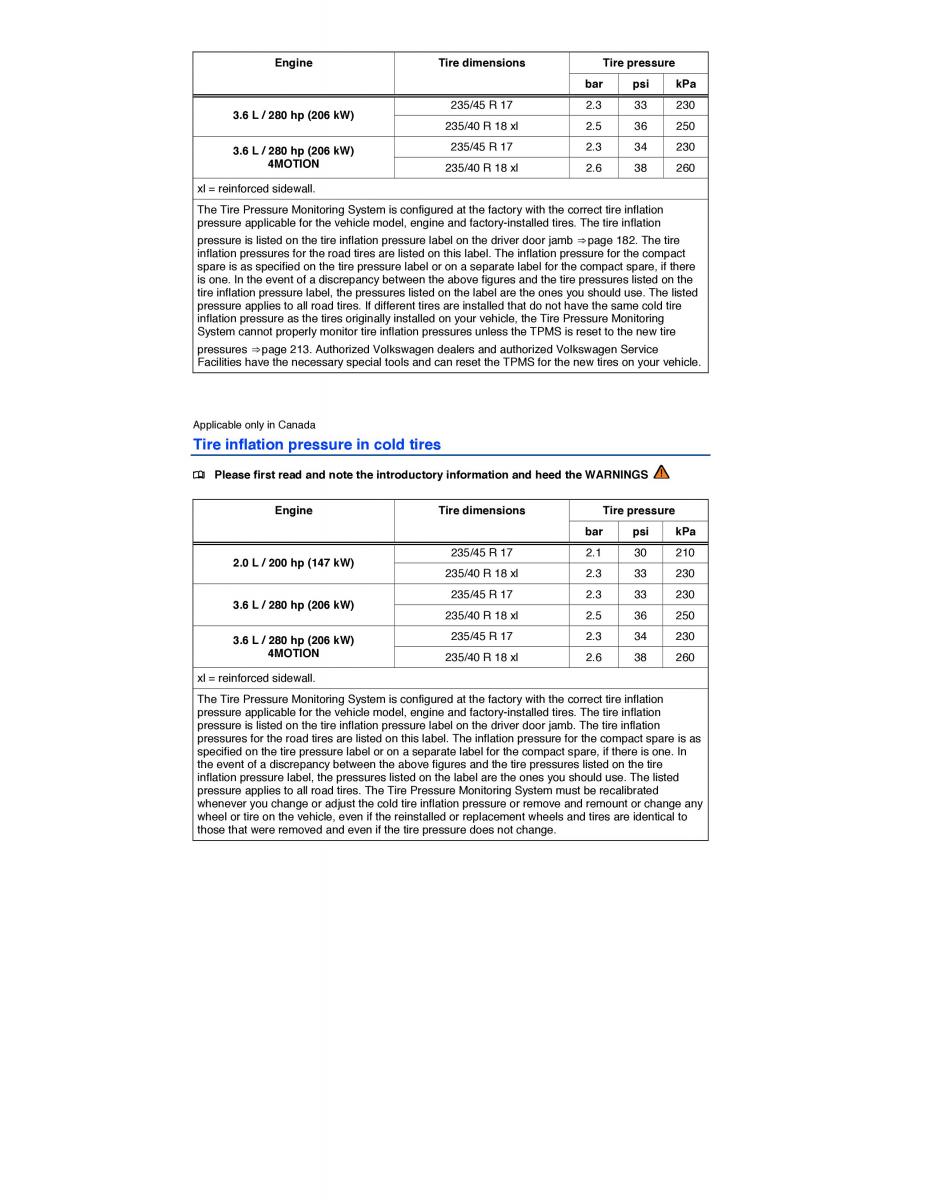

Engine Tire dimensions Tire pressure bar psi kPa 3.6 L / 280 hp (206 kW) 235/45 R 17 2.3 33 230 235/40 R 18 xl 2.5 36 250 3.6 L / 280 hp (206 kW) 235/45 R 17 2.3 34 230 4MOTION 235/40 R 18 xl 2.6 38 260 xl = reinforced sidewall. The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation pressure is listed on the tire inflation pressure label on the driver door jamb ⇒ page 182. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a discrepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The listed pressure applies to all road tires. If different tires are installed that do not have the same cold tire inflation pressure as the tires originally installed on your vehicle, the Tire Pressure Monitoring System cannot properly monitor tire inflation pressures unless the TPMS is reset to the new tire pressures ⇒ page 213. Authorized Volkswagen dealers and authorized Volkswagen Service Facilities have the necessary special tools and can reset the TPMS for the new tires on your vehicle. Applicable only in Canada Tire inflation pressure in cold tires ¤ Please first read and note the introductory information and heed the WARNINGS Engine Tire dimensions Tire pressure bar psi kPa 2.0 L / 200 hp (147 kW) 235/45 R 17 2.1 30 210 235/40 R 18 xl 2.3 33 230 3.6 L / 280 hp (206 kW) 235/45 R 17 2.3 33 230 235/40 R 18 xl 2.5 36 250 3.6 L / 280 hp (206 kW) 235/45 R 17 2.3 34 230 4MOTION 235/40 R 18 xl 2.6 38 260 xl = reinforced sidewall. The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation pressure is listed on the tire inflation pressure label on the driver door jamb. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a discrepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The listed pressure applies to all road tires. The Tire Pressure Monitoring System must be recalibrated whenever you change or adjust the cold tire inflation pressure or remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change.
