text version of content this owner's manual page from owners manual to the vehicle Smart Fortwo, year of production 2007 - 2013:

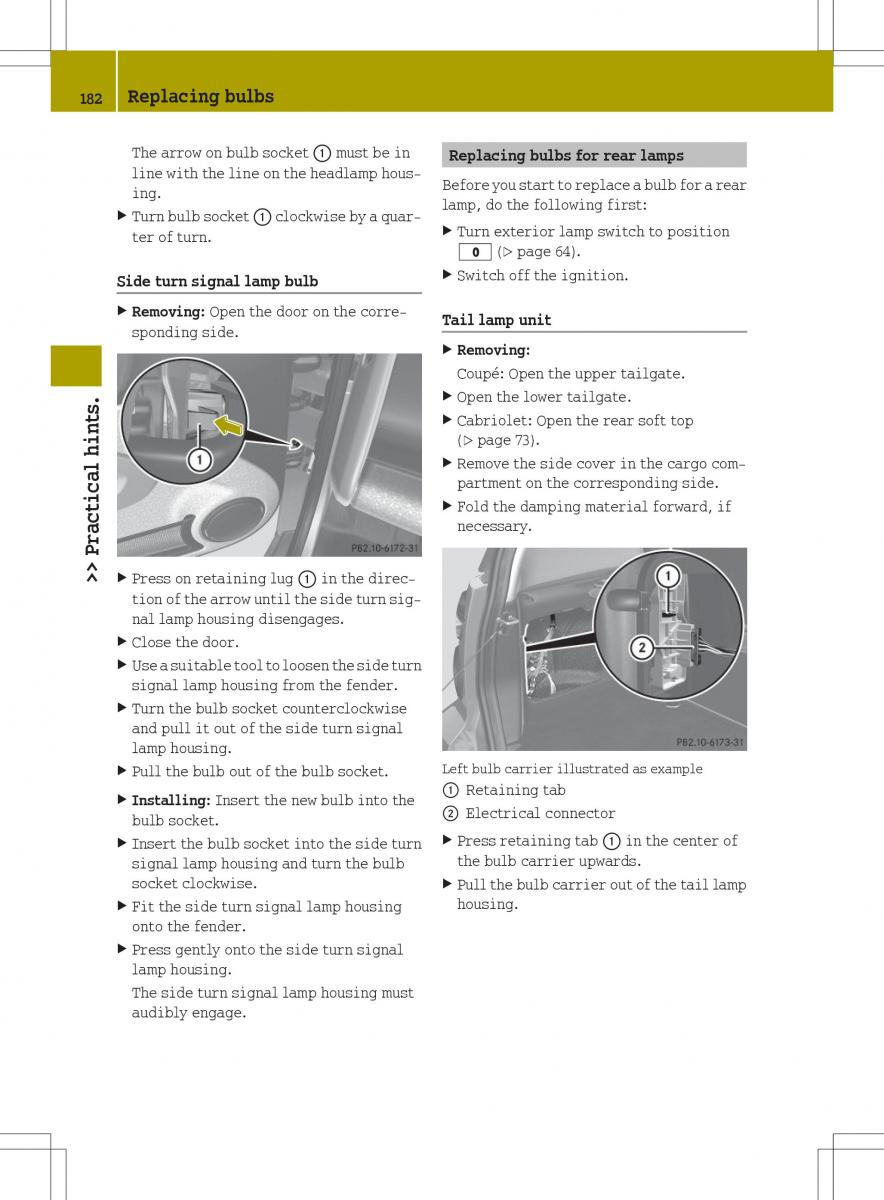

Replacing bulbs 182 The arrow on bulb socket : must be in Replacing bulbs for rear lamps line with the line on the headlamp hous- Beforeyoustarttoreplaceabulbforarear ing. lamp, do the following first: X Turnbulbsocket:clockwisebyaquar- X Turn exterior lamp switch to position ter of turn. $(Ypage64). X Switch off the ignition. Side turn signal lamp bulb X Removing: Open the door on the corre- Tail lamp unit sponding side. XRemoving: Coupé: Open the upper tailgate. X Openthelowertailgate. X Cabriolet: Open the rear soft top (Y page 73). hints. X Removethesidecoverinthecargocom- partment on the corresponding side. ical X Fold the damping material forward, if necessary. Pract >>X Press on retaining lug : in the direc- tionofthearrowuntilthesideturnsig- nal lamp housing disengages. X Close the door. X Useasuitabletooltoloosenthesideturn signal lamp housing from the fender. X Turn the bulb socket counterclockwise and pull it out of the side turn signal lamphousing. X Left bulb carrier illustrated as example Pull the bulb out of the bulb socket. :Retainingtab X Installing: Insert the new bulb into the ;Electricalconnector bulb socket. X X Press retaining tab : in the center of Insert the bulb socket into the side turn the bulb carrier upwards. signal lamp housing and turn the bulb socket clockwise. X Pullthebulbcarrieroutofthetaillamp X housing. Fit the side turn signal lamp housing onto the fender. X Press gently onto the side turn signal lamphousing. The side turn signal lamp housing must audibly engage.
