owners manual VW Passat

owners manual VW Passat - year of production: 2010, 2011, 2012, 2013, 2014 - VW Passat B7 NMS owners manual EN

Document: pdf (5.83 MB) 379 pages
all ratings: 0 average rating: 5
text version of content this owner's manual page from owners manual to the vehicle VW Passat, year of production 2010 - 2014:

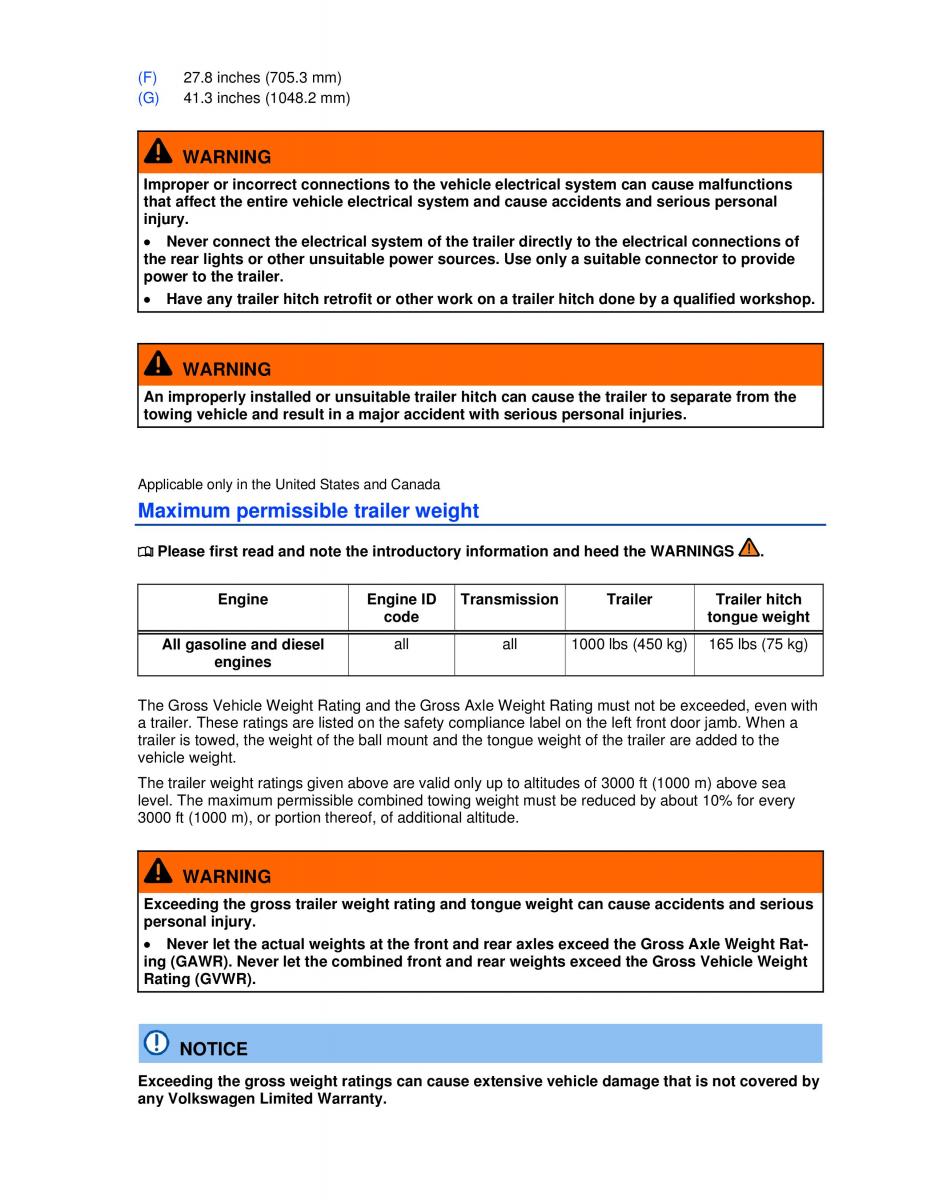

(F) 27.8 inches (705.3 mm) (G) 41.3 inches (1048.2 mm) WARNING Improper or incorrect connections to the vehicle electrical system can cause malfunctions that affect the entire vehicle electrical system and cause accidents and serious personal injury. x Never connect the electrical system of the trailer directly to the electrical connections of the rear lights or other unsuitable power sources. Use only a suitable connector to provide power to the trailer. x Have any trailer hitch retrofit or other work on a trailer hitch done by a qualified workshop. WARNING An improperly installed or unsuitable trailer hitch can cause the trailer to separate from the towing vehicle and result in a major accident with serious personal injuries. Applicable only in the United States and Canada Maximum permissible trailer weight ¤ Please first read and note the introductory information and heed the WARNINGS . Engine Engine ID TransmissionTrailer Trailer hitch code tongue weight All gasoline and diesel all all 1000 lbs (450 kg) 165 lbs (75 kg) engines The Gross Vehicle Weight Rating and the Gross Axle Weight Rating must not be exceeded, even with a trailer. These ratings are listed on the safety compliance label on the left front door jamb. When a trailer is towed, the weight of the ball mount and the tongue weight of the trailer are added to the vehicle weight. The trailer weight ratings given above are valid only up to altitudes of 3000 ft (1000 m) above sea level. The maximum permissible combined towing weight must be reduced by about 10% for every 3000 ft (1000 m), or portion thereof, of additional altitude. WARNING Exceeding the gross trailer weight rating and tongue weight can cause accidents and serious personal injury. x Never let the actual weights at the front and rear axles exceed the Gross Axle Weight Rat- ing (GAWR). Never let the combined front and rear weights exceed the Gross Vehicle Weight Rating (GVWR). NOTICE Exceeding the gross weight ratings can cause extensive vehicle damage that is not covered by any Volkswagen Limited Warranty.
