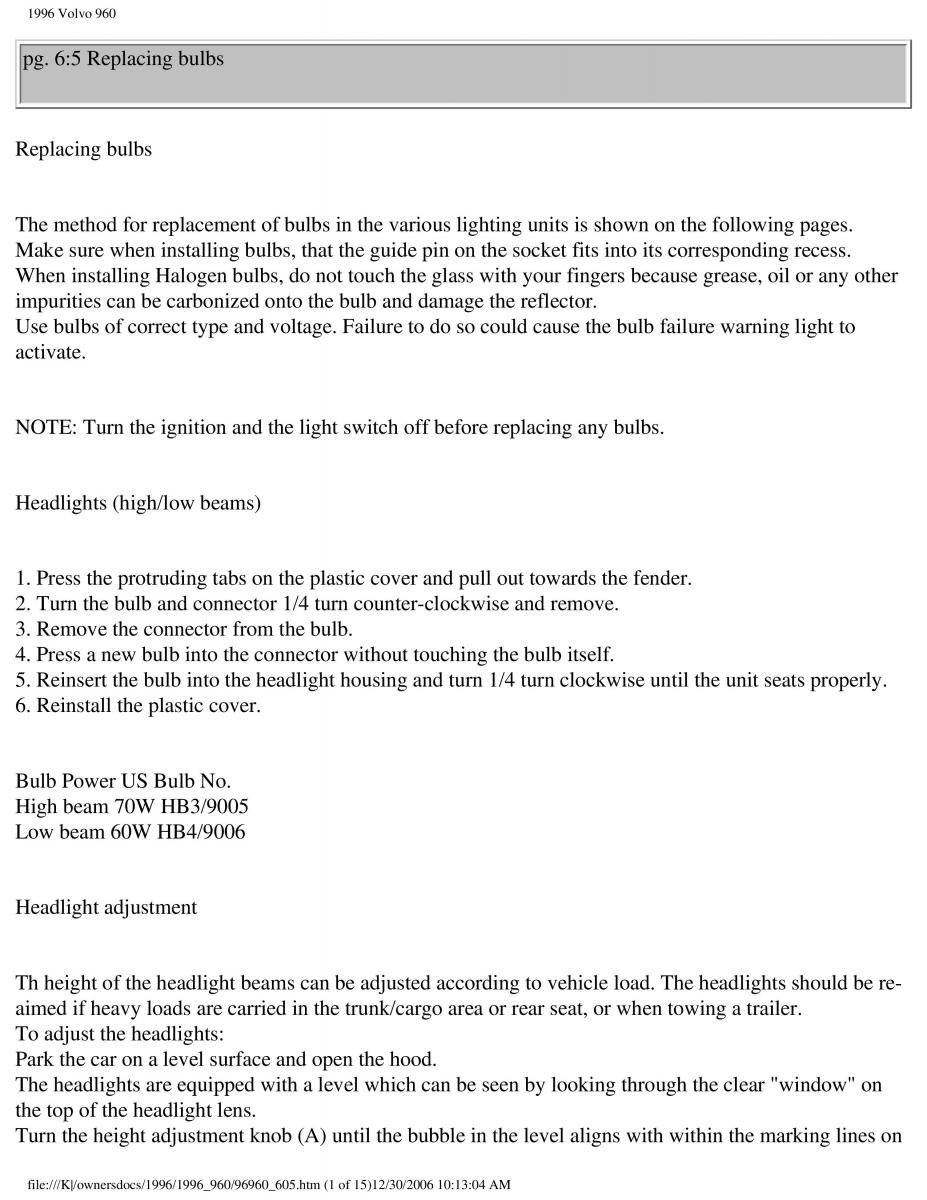

1996 Volvo 960
pg. 6:5 Replacing bulbs
Replacing bulbs
The method for replacement of bulbs in the various lighting units is shown on the following pages.
Make sure when installing bulbs, that the guide pin on the socket fits into its corresponding recess.
When installing Halogen bulbs, do not touch the glass with your fingers because grease, oil or any other
impurities can be carbonized onto the bulb and damage the reflector.
Use bulbs of correct type and voltage. Failure to do so could cause the bulb failure warning light to
activate.
NOTE: Turn the ignition and the light switch off before replacing any bulbs.
Headlights (high/low beams)
1. Press the protruding tabs on the plastic cover and pull out towards the fender.
2. Turn the bulb and connector 1/4 turn counter-clockwise and remove.
3. Remove the connector from the bulb.
4. Press a new bulb into the connector without touching the bulb itself.
5. Reinsert the bulb into the headlight housing and turn 1/4 turn clockwise until the unit seats properly.
6. Reinstall the plastic cover.
Bulb Power US Bulb No.
High beam 70W HB3/9005
Low beam 60W HB4/9006
Headlight adjustment
Th height of the headlight beams can be adjusted according to vehicle load. The headlights should be re-
aimed if heavy loads are carried in the trunk/cargo area or rear seat, or when towing a trailer.
To adjust the headlights:
Park the car on a level surface and open the hood.
The headlights are equipped with a level which can be seen by looking through the clear "window" on
the top of the headlight lens.
Turn the height adjustment knob (A) until the bubble in the level aligns with within the marking lines on
file:///K|/ownersdocs/1996/1996_960/96960_605.htm (1 of 15)12/30/2006 10:13:04 AM
