text version of content this owner's manual page from owners manual to the vehicle Renault Koleos, year of production 2016:

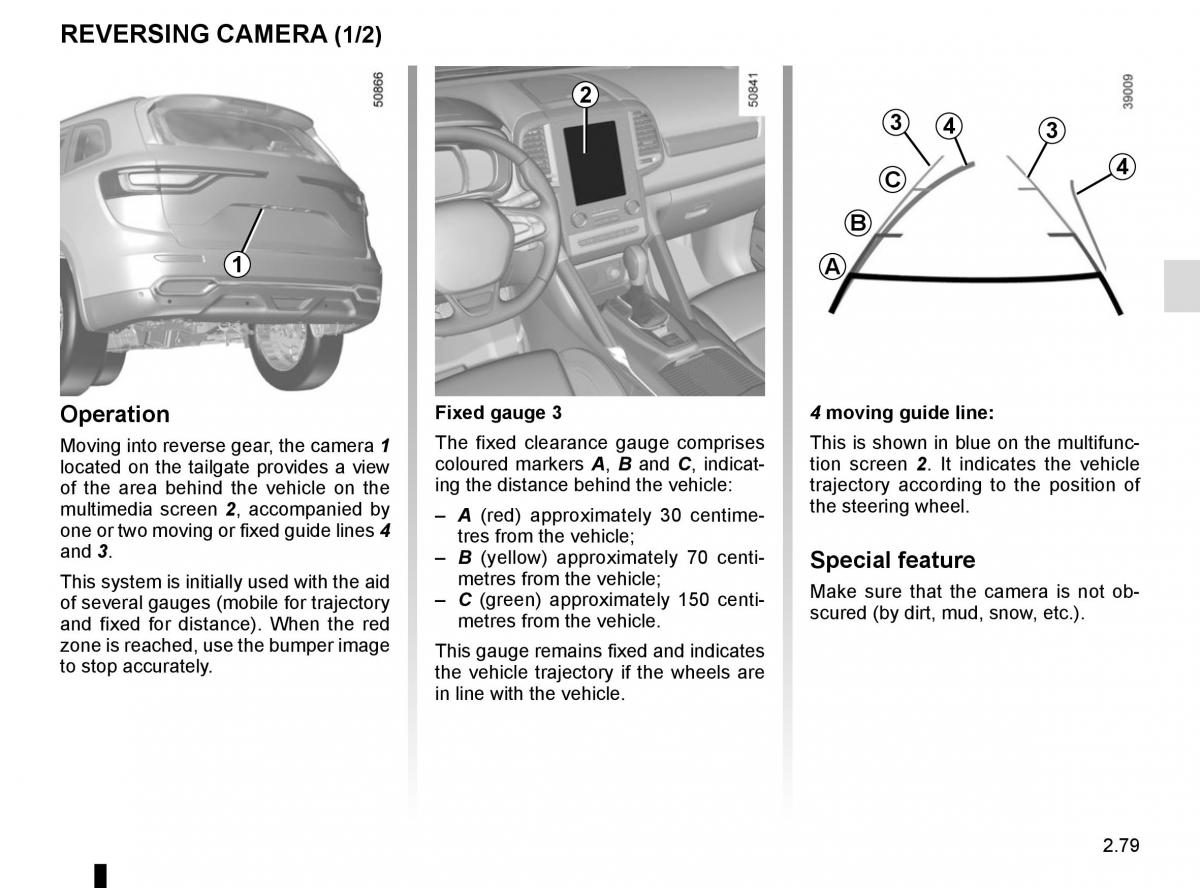

REVERSING CAMERA (1/2) 2 3 4 3 C 4 B 1 A Operation Fixed gauge 3 4 moving guide line: Moving into reverse gear, the camera 1 The fixed clearance gauge comprisesThis is shown in blue on the multifunc- coloured markers A, B and C, indicat-tion screen . It indicates the vehicle2 located on the tailgate provides a view ing the distance behind the vehicle:trajectory according to the position of of the area behind the vehicle on the the steering wheel. multimedia screen 2, accompanied by one or two moving or fixed guide lines 4 – A (red) approximately 30 centime- and 3. tres from the vehicle; – B (yellow) approximately 70 centi- metres from the vehicle;Special feature This system is initially used with the aid Make sure that the camera is not ob- of several gauges (mobile for trajectory – C (green) approximately 150 centi- metres from the vehicle.scured (by dirt, mud, snow, etc.). and fixed for distance). When the red zone is reached, use the bumper image This gauge remains fixed and indicates to stop accurately. the vehicle trajectory if the wheels are in line with the vehicle. 2.79
