text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4 S-Cross, year of production 2013:

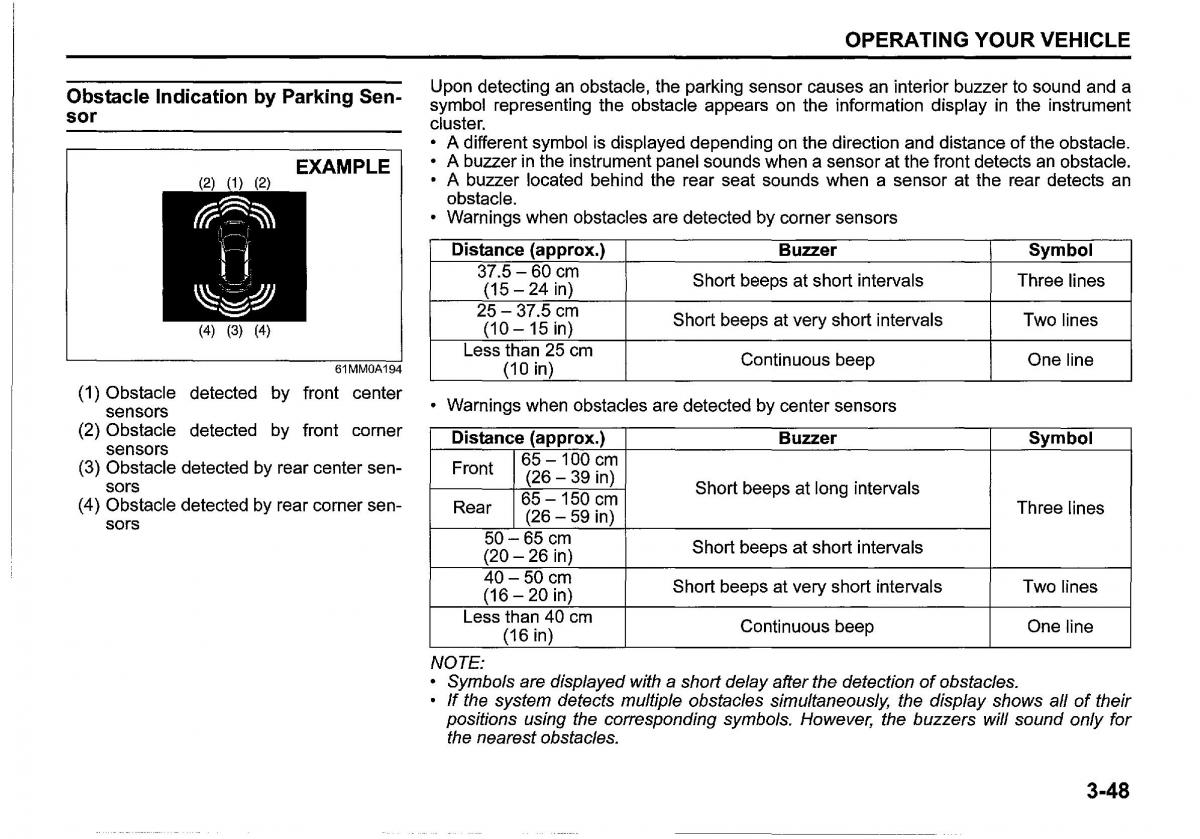

OPERATING YOUR VEHICLE Obstacle Indication by Parking Sen- Upon detecting an obstacle, the parking sensor causes an interior buzzer to sound and a sor symbol representing the obstacle appears on the information display in the instrument cluster. • A different symbol is displayed depending on the direction and distance of the obstacle. EXAMPLE • A buzzer in the instrument panel sounds when a sensor at the front detects an obstacle. • A buzzer located behind the rear seat sounds when a sensor at the rear detects an obstacle. • Warnings when obstacles are detected by corner sensors Distance (approx.) Buzzer Symbol 37.5 - 60 cm Short beeps at short intervals Three lines (15 - 24 in) 25 - 37.5 cm Short beeps at very short intervals Two lines (4) (3) (4) (10 -15 in) Less than 25 cm Continuous beep One line 61MMOA194 (10 in) (1) Obstacle detected by front center • Warnings when obstacles are detected by center sensors sensors (2) Obstacle detected by front corner Distance (approx.) Buzzer Symbol sensors 65 -100 cm (3) Obstacle detected by rear center sen- Front (26 - 39 in) sors 65 -150 cm Short beeps at long intervals (4) Obstacle detected by rear corner sen- Rear lines sors (26 - 59 in) Three 50 - 65 cm Short beeps at short intervals (20 - 26 in) 40-50 cm Short beeps at very short intervals Two lines (16 - 20 in) Less than 40 cm Continuous beep One line (16 in) NOTE: • Symbols are displayed with a short delay after the detection of obstacles. • If the system detects multiple obstacles simultaneously, the display shows al/ of their positions using the corresponding symbols. However, the buzzers will sound only for the nearest obstacles. 3-48
