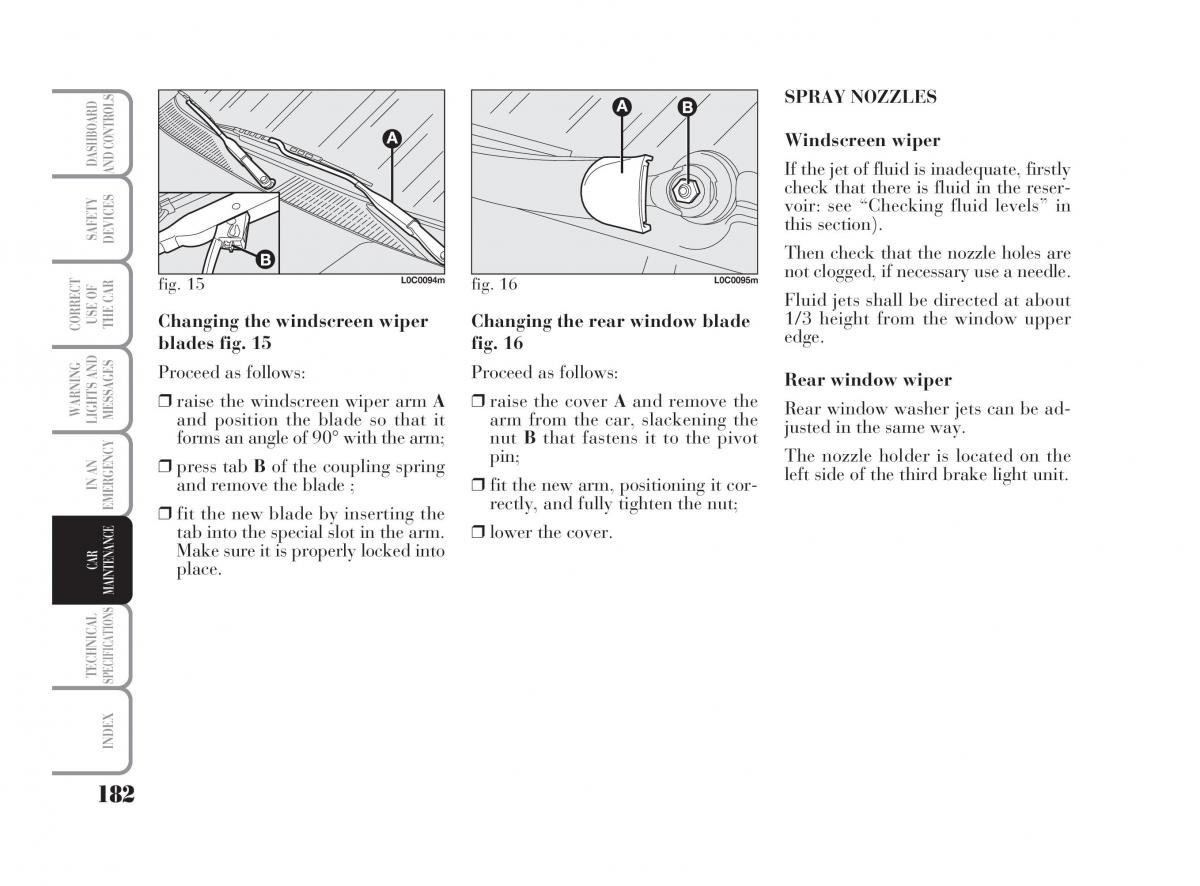

165-186 Ypsilon GB 10-10-2008 11:22 Pagina 182
SPRAY NOZZLES
Windscreen wiper
DASHBOARDAND CONTROLS If the jet of fluid is inadequate, firstly
check that there is fluid in the reser-
voir: see “Checking fluid levels” in
this section).
SAFETYDEVICES
Then check that the nozzle holes are
fig. 15 L0C0094m fig. 16 L0C0095m not clogged, if necessary use a needle.
Fluid jets shall be directed at about
CORRECTUSE OF THE CARChanging the windscreen wiper Changing the rear window blade 1/3 height from the window upper
blades fig. 15 fig. 16 edge.
Proceed as follows: Proceed as follows: Rear window wiper
❒raise the windscreen wiper arm A ❒raise the cover A and remove the
WARNINGLIGHTS ANDMESSAGES Rear window washer jets can be ad-
and position the blade so that itarm from the car, slackening the
justed in the same way.
forms an angle of 90° with the arm; nut B that fastens it to the pivot
❒press tab B of the coupling spring pin; The nozzle holder is located on the
IN AN and remove the blade ; ❒fit the new arm, positioning it cor- left side of the third brake light unit.
EMERGENCY rectly, and fully tighten the nut;
❒fit the new blade by inserting the
tab into the special slot in the arm. ❒lower the cover.
Make sure it is properly locked into
CAR place.
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
182
