from owners manual to the vehicle Renault Laguna, year of production 2007 - 2015:

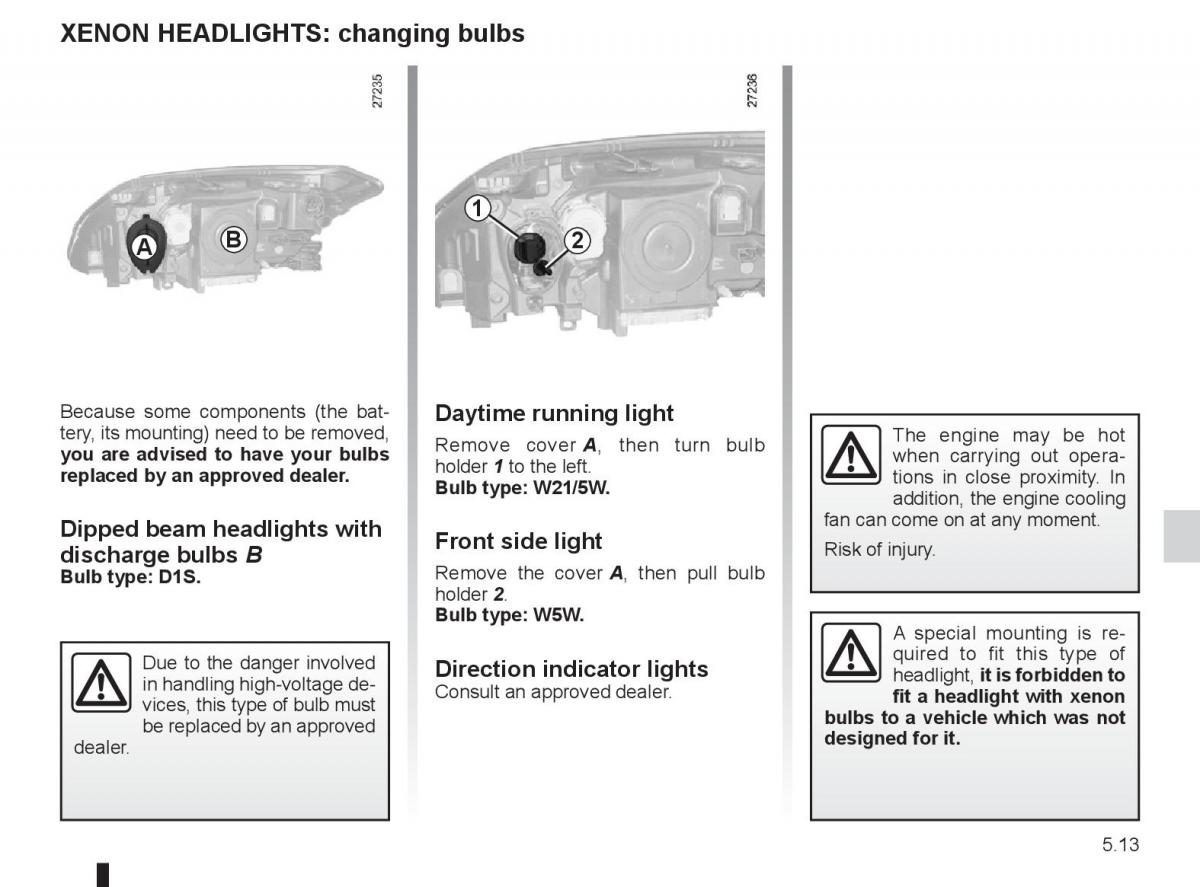

XenOn HeADLIGHtS: changing bulbs
1
A B 2
Because some components (the bat- Daytime running light
tery, its mounting) need to be removed, Remove cover A, then turn bulb The engine may be hot
you are advised to have your bulbs holder 1 to the left. when carrying out opera-
replaced by an approved dealer. Bulb type: W21/5W. tions in close proximity. In
addition, the engine cooling
Dipped beam headlights with Front side light fan can come on at any moment.
discharge bulbs B Risk of injury.
Bulb type: D1S. Remove the cover A, then pull bulb
holder 2.
Bulb type: W5W. A special mounting is re-
Due to the danger involved Direction indicator lights quired to fit this type of
in handling high-voltage de- Consult an approved dealer. headlight, it is forbidden to
vices, this type of bulb must fit a headlight with xenon
be replaced by an approved bulbs to a vehicle which was not
dealer. designed for it.
5.13
ENG_UD25515_2
ENG_NU_936-3_BK91_Renault_5 Projecteurs lampes xénon : remplacement des lampes (X91 - B91 - K91 - Renault)
bulbs
changing .(up to the end of the DU)
lights:
dipped beam headlights (up to the end of the DU)
changing a bulb (up to the end of the DU)
lights:
direction indicators (up to the end of the DU)
lights:
side lights (up to the end of the DU)
bulbs
changing .(up to the end of the DU)
lights
front .(up to the end of the DU)
