owners manual Lexus LS

all ratings: 0 average rating: 5

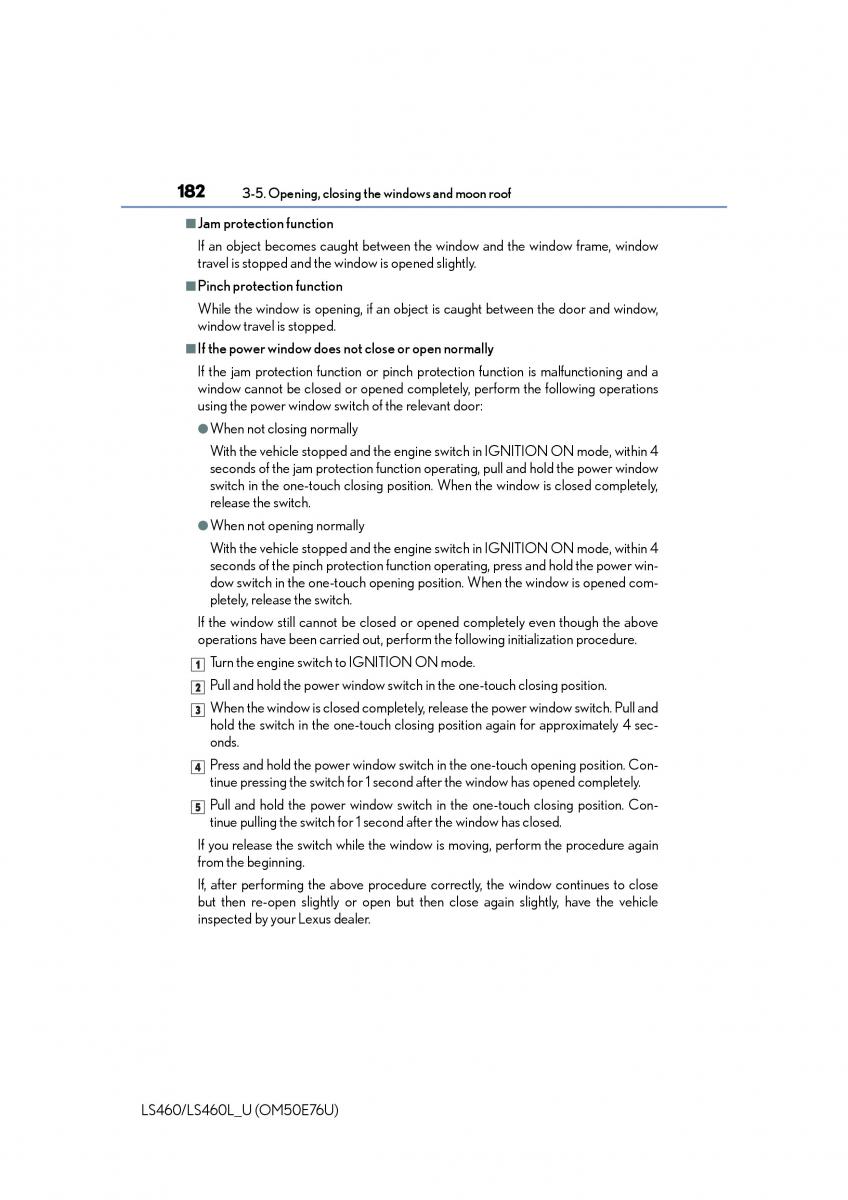

182 3-5. Opening, closing the windows and moon roof ■Jam protection function If an object becomes caught between the window and the window frame, window travel is stopped and the window is opened slightly. ■Pinch protection function While the window is opening, if an object is caught between the door and window, window travel is stopped. ■If the power window does not close or open normally If the jam protection function or pinch protection function is malfunctioning and a window cannot be closed or opened completely, perform the following operations using the power window switch of the relevant door: ●When not closing normally With the vehicle stopped and the engine switch in IGNITION ON mode, within 4 seconds of the jam protection function operating, pull and hold the power window switch in the one-touch closing position. When the window is closed completely, release the switch. ●When not opening normally With the vehicle stopped and the engine switch in IGNITION ON mode, within 4 seconds of the pinch protection function operating, press and hold the power win- dow switch in the one-touch opening position. When the window is opened com- pletely, release the switch. If the window still cannot be closed or opened completely even though the above operations have been carried out, perform the following initialization procedure. 1 Turn the engine switch to IGNITION ON mode. 2 Pull and hold the power window switch in the one-touch closing position. 3 When the window is closed completely, re lease the power window switch. Pull and hold the switch in the one-touch closig pon sition again for approximately 4 sec- onds. 4 Press and hold the power window switchin the one-touch opening position. Con- tinue pressing the switch for 1 second after the window has opened completely. 5 Pull and hold the power window switch in the one-touch closing position. Con- tinue pulling the switch for 1 second after the window has closed. If you release the switch while the window is moving, perform the procedure again from the beginning. If, after performing the above procedure correctly, the window continues to close but then re-open slightly or open but then close again slightly, have the vehicle inspected by your Lexus dealer. LS460/LS460L_U (OM50E76U)
